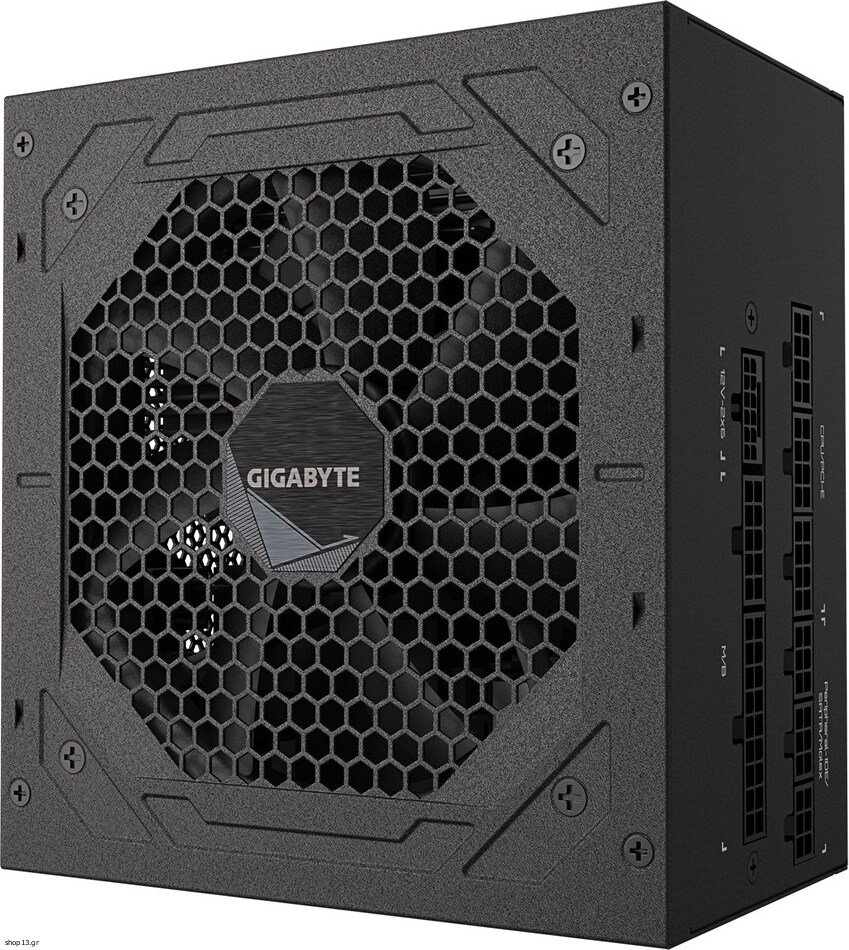

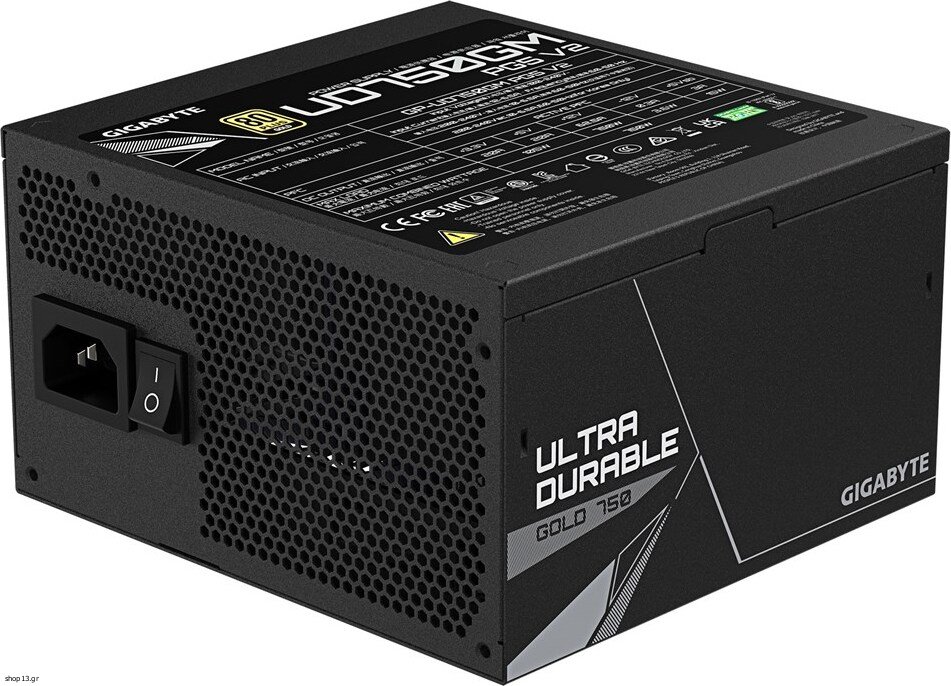

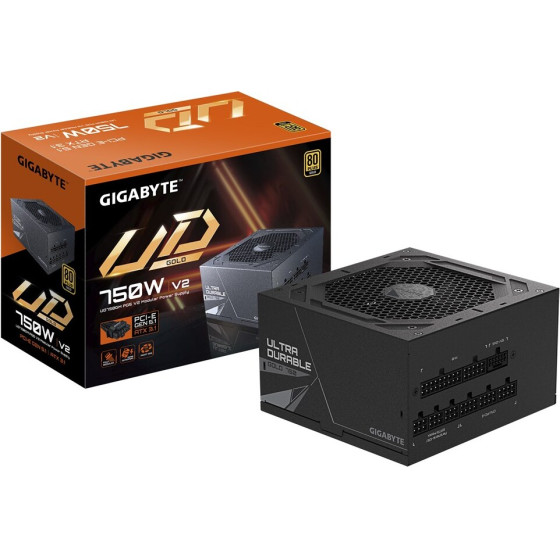

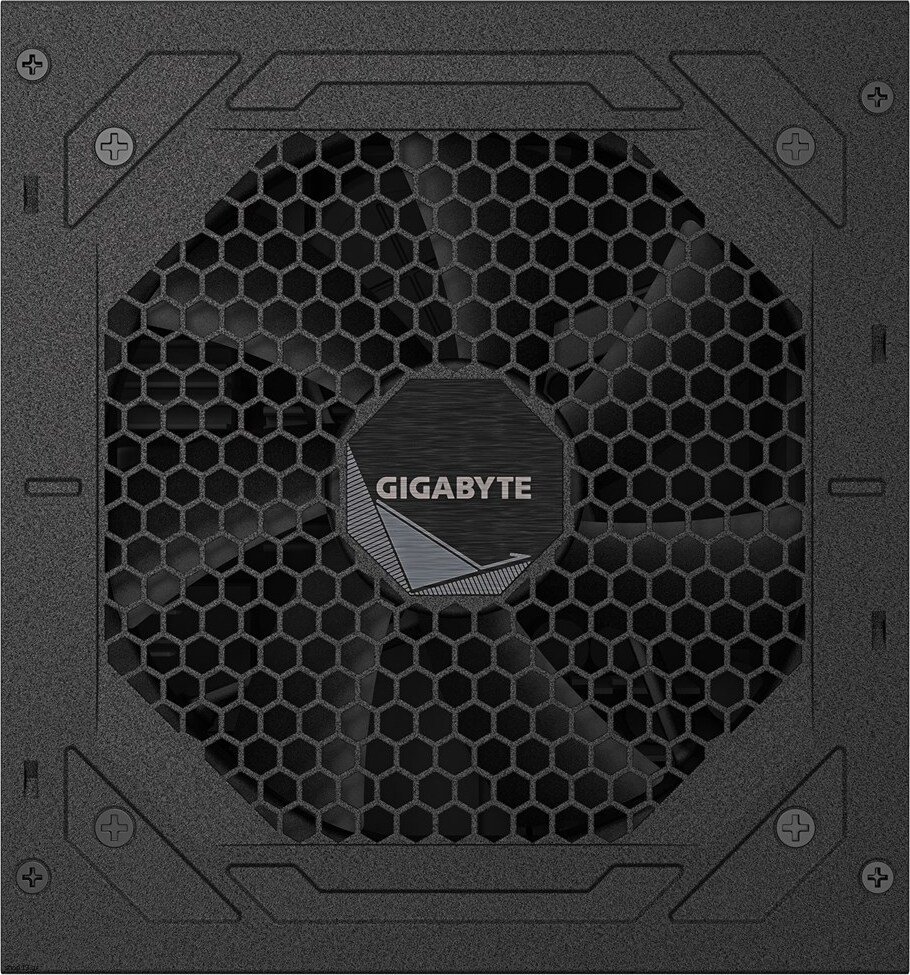

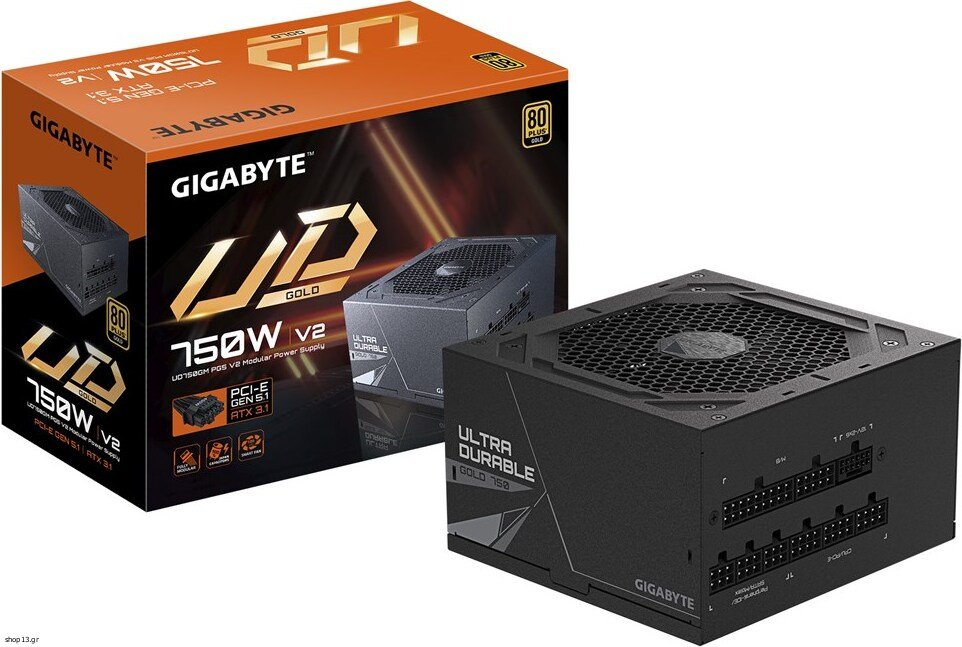

Gigabyte UD750GM 750W PG5 V2 Power Supply - (GP-UD750GM PG5 V2)

Design
On/off switch: Yes
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Product colour: Black
Cooling type: Active

Power
Power protection features: OPP, SCP, OVP, OTP, UVP, OCP
Power Factor Correction (PFC) type: Active
Efficiency: 90%
Combined power (+3.3V): 105 W
Power factor: 0.9
Hold time: 16 ms
Total power: 750 W
Combined power (+5V): 105 W
Max output current (+5Vsb): 3 A
Combined power (-12V): 3.6 W
Combined power (+12V): 750 W
Max output current (+3.3V): 20 A
Combined power (+5Vsb): 15 W
Max output current (+5V): 20 A
Max output current (+12V): 62.5 A
Max output current (-12V): 0.3 A
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Input current: 15 - 6.5 A

Weight & dimensions
Height: 86 mm
Depth: 140 mm
Width: 150 mm

Performance
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
Purpose: PC
ATX version: 3.1
Power supply unit (PSU) form factor: ATX

Ports & interfaces
PCI Express power connectors (12+4 pin) cable length: 700 mm
Number of EPS connectors: 2
Cabling type: Fully-Modular
PCI Express power connectors (12+4 pin): 1
Motherboard power cable length: 61 cm
Motherboard power connector: 20+4 pin ATX
PCI Express power connectors (6+2 pin): 4
PCI Express connector: Yes
CPU power connector (4+4 pin): Yes
Number of SATA power connectors: 8


Warranty: warranty 36 months
