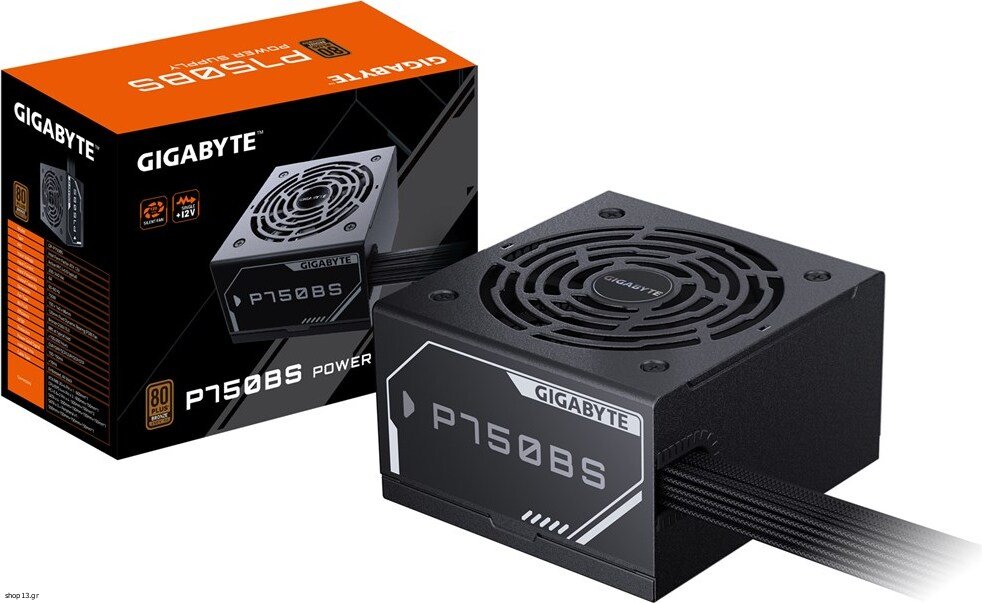

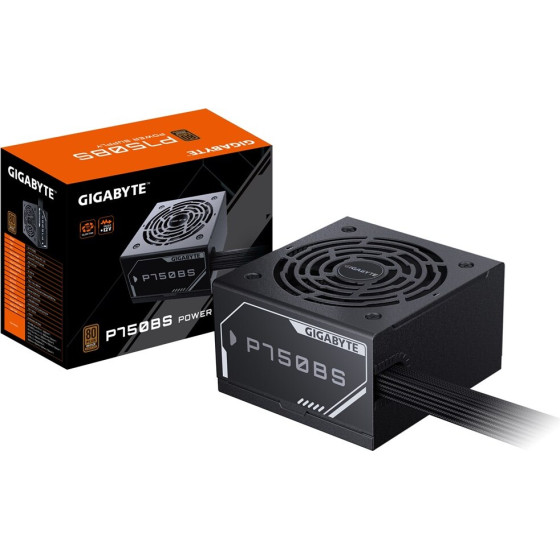

Gigabyte P750BS Power Supply - PCI-E 6+2 Pin x 4, 80 PLUS Bronze, 120mm Fan, ATX compatible, EU Plug - (GP-P750BS)

Design
Fan location: Top
Product colour: Black
Number of fans: 1 fan(s)
Cooling type: Active
Fan diameter: 12 cm
On/off switch: Yes

Power
Max output current (+3.3V): 20 A
Hold time: 16 ms
Power protection features: Short circuit, Over voltage, Over power, Under voltage, Over current, Overheating
Combined power (+12V): 750 W
AC input frequency: 50/60 Hz
Total power: 750 W
Max output current (+5Vsb): 3 A
Power Good signal delay range: 100 - 150 ms
Max output current (-12V): 0.3 A
Input current: 6 A
Combined power (-12V): 3.6 W
Max output current (+5V): 20 A
Power Factor Correction (PFC) type: Active
Combined power (+5V): 100 W
Combined power (+3.3V): 100 W
Max output current (+12V): 62.5 A
Power factor: 0.9
Efficiency: 88%
AC input voltage: 200 - 240 V
Combined power (+5Vsb): 15 W

Weight & dimensions
Weight: 2.22 kg
Depth: 140 mm
Width: 150 mm
Height: 86 mm

Performance
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Purpose: PC
Bearing technology: FDB
Power supply unit (PSU) form factor: ATX

Packaging data
Package width: 254 mm
Package depth: 206 mm
Package weight: 2.68 kg
Package height: 117 mm
Package type: Box

Ports & interfaces
Cabling type: Non-Modular
Floppy drive power connector: 2
Motherboard power cable length: 60 cm
SATA power cable length: 500 mm, 150
Floppy disk drive connector: Yes
PCI Express connector: Yes
Peripheral (Molex) power cable length: 600 mm, 150
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 4
ATX power connector (20+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 7

Logistics data
Warranty period: 3 year(s)


Warranty: warranty 36 months
