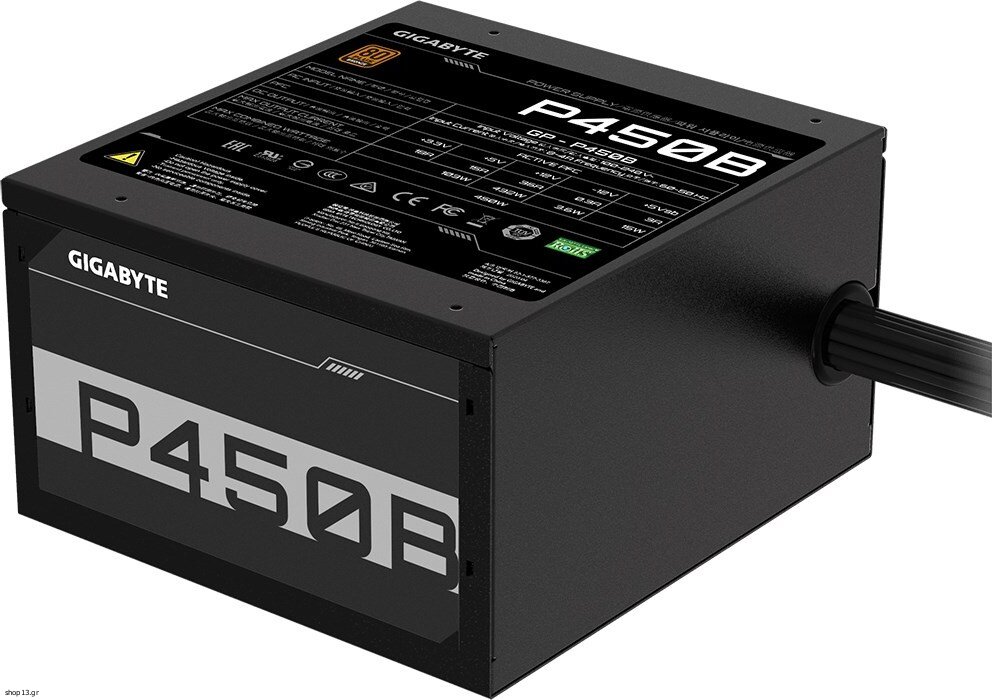

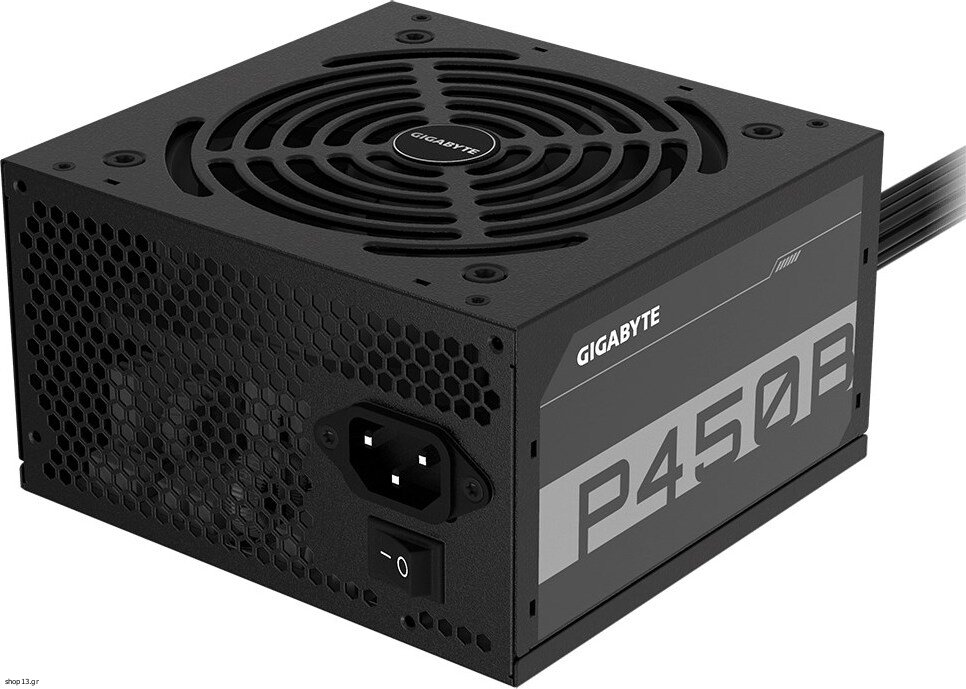

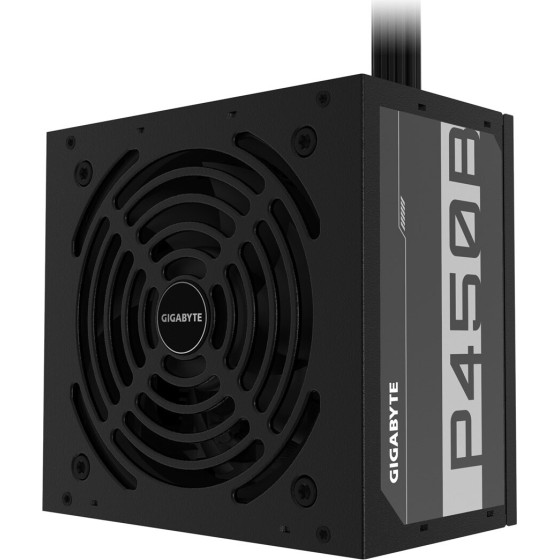

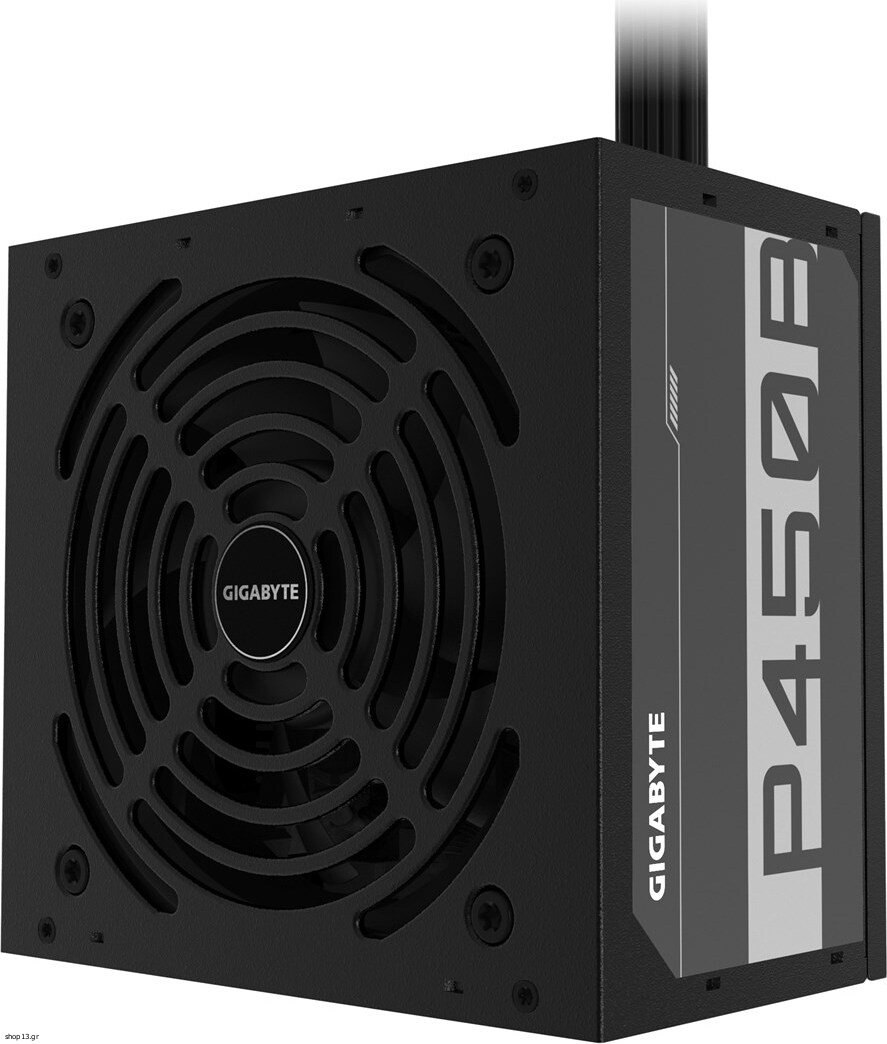

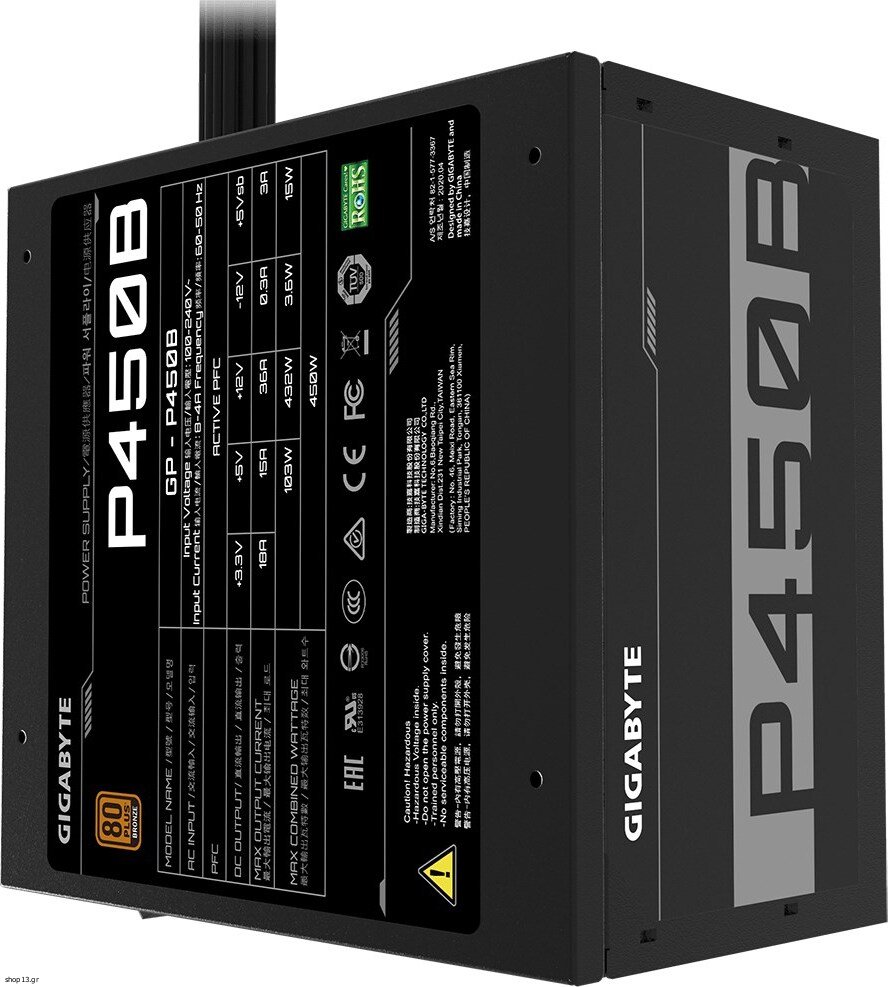

Gigabyte P450B power supply unit 450 W 20+4 pin ATX ATX Black - (GP-P450B)

Design
Fan diameter: 12 cm
Cooling type: Active
Product colour: Black
Fan location: Top
Number of fans: 1 fan(s)
On/off switch: Yes

Power
Hold time: 16 ms
Max output current (+12V): 36 A
Power protection features: Over power, Overheating, Under voltage, Over current, Short circuit, Over voltage
AC input frequency: 50 - 60 Hz
Max output current (+5Vsb): 3 A
Max output current (+3.3V): 18 A
Power factor: 0.9
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
AC input voltage: 100 - 240 V
Max output current (+5V): 15 A
Combined power (+3.3V): 103 W
Combined power (+5V): 103 W
Combined power (+12V): 432 W
Total power: 450 W
Power Factor Correction (PFC) type: Active
Input current: 8 - 4 A
Efficiency: 85%
Max output current (-12V): 0.3 A

Weight & dimensions
Height: 86 mm
Width: 150 mm
Depth: 140 mm

Performance
Power supply unit (PSU) form factor: ATX
Purpose: PC
ATX version: 2.31
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Bearing technology: HDB

Ports & interfaces
SATA power cable length: 500 mm
Number of SATA power connectors: 6
Floppy drive power connector: 1
PCI Express connector: Yes
Cabling type: Non-Modular
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
ATX power connector (20+4 pin): Yes
CPU power cable length: 60 cm
Floppy disk drive connector: Yes
Motherboard power connector: 20+4 pin ATX
CPU power connector (4+4 pin): Yes
Motherboard power cable length: 55 cm
Peripheral (Molex) power cable length: 500 mm
PCI Express power cable length: 55 cm

Logistics data
Harmonized System (HS) code: 84733020


Warranty: warranty 36 months
