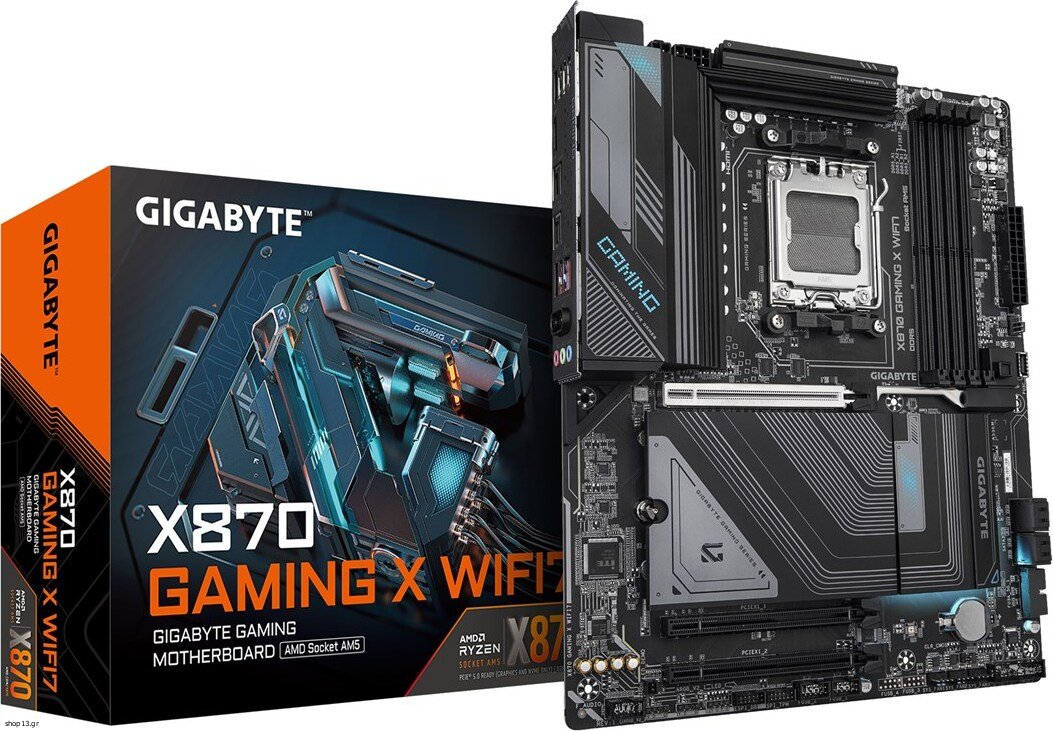

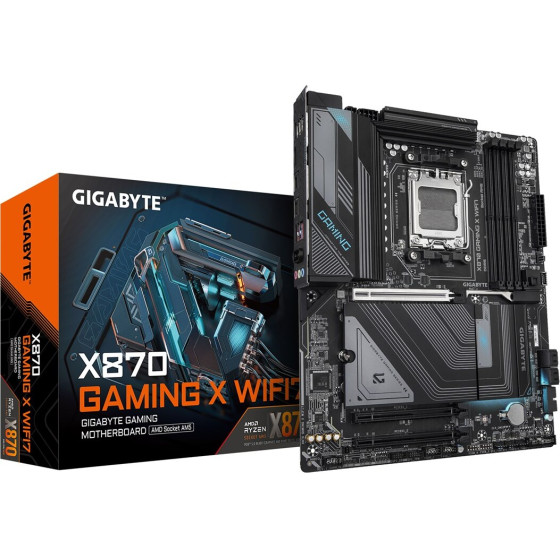

Gigabyte motherboard - (X870 GAMING X WIFI7)

Technical details
Warranty period: 3 year(s)

Processor
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Maximum internal memory supported by processor: 256 GB
Compatible processor series: AMD Ryzen(TM) 7

Graphics
DirectX version: 12.0

Features
Product colour: Black
Windows operating systems supported: Windows 11 x64
Motherboard chipset: AMD X870
PC health monitoring: Temperature, Fan, Voltage
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Motherboard form factor: ATX

Memory
Supported memory clock speeds: 6600, 7600, 4400, 7000, 6400, 8000, 5600 MHz, 7200, 6200, 6666, 4800, 7800, 6000, 5200, 6800
Supported memory module capacities: 1GB, 40GB, 16GB, 2GB, 4GB, 48GB, 32GB, 24GB, 64GB, 8GB
Number of memory slots: 4
Memory channels: Dual-channel
Maximum internal memory: 256 GB
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 8000 MHz

Weight & dimensions
Height: 35 mm
Depth: 244 mm
Width: 305 mm
Weight: 2.23 kg

Network
Wi-Fi: Yes
WLAN controller model: MediaTek MT7925
Ethernet LAN: Yes
Bluetooth: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.4
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)

Internal I/O
RGB LED pin header: Yes
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
TPM connector: Yes
Total number of SATA connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
EPS power connector (8-pin): Yes
USB 2.0 connectors: 2
12V power connector: Yes
USB 3.2 Gen 2x2 connectors: 1

BIOS
Clear CMOS jumper: Yes
Clear CMOS button: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI

Packaging data
Package depth: 270 mm
Package width: 335 mm
Package height: 80 mm
Package weight: 2.53 kg

Packaging content
Batteries included: Yes

Storage controllers
Number of HDDs supported: 7
RAID levels: 10, 0, 1
RAID support: Yes
Number of storage drives supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
S/PDIF out port: Yes
USB4 Gen 2x2 ports quantity: 2
DisplayPorts quantity: 2
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Microphone in: Yes

Expansion slots
PCI Express x4 slots: 2
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 5.x) slots: 1

Battery
Number of battery cells: 1
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Lithium weight per battery: 0.07 g

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China


Warranty: warranty 36 months
