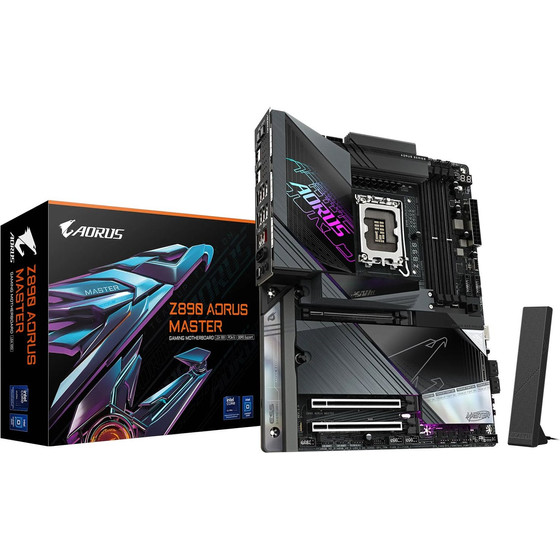

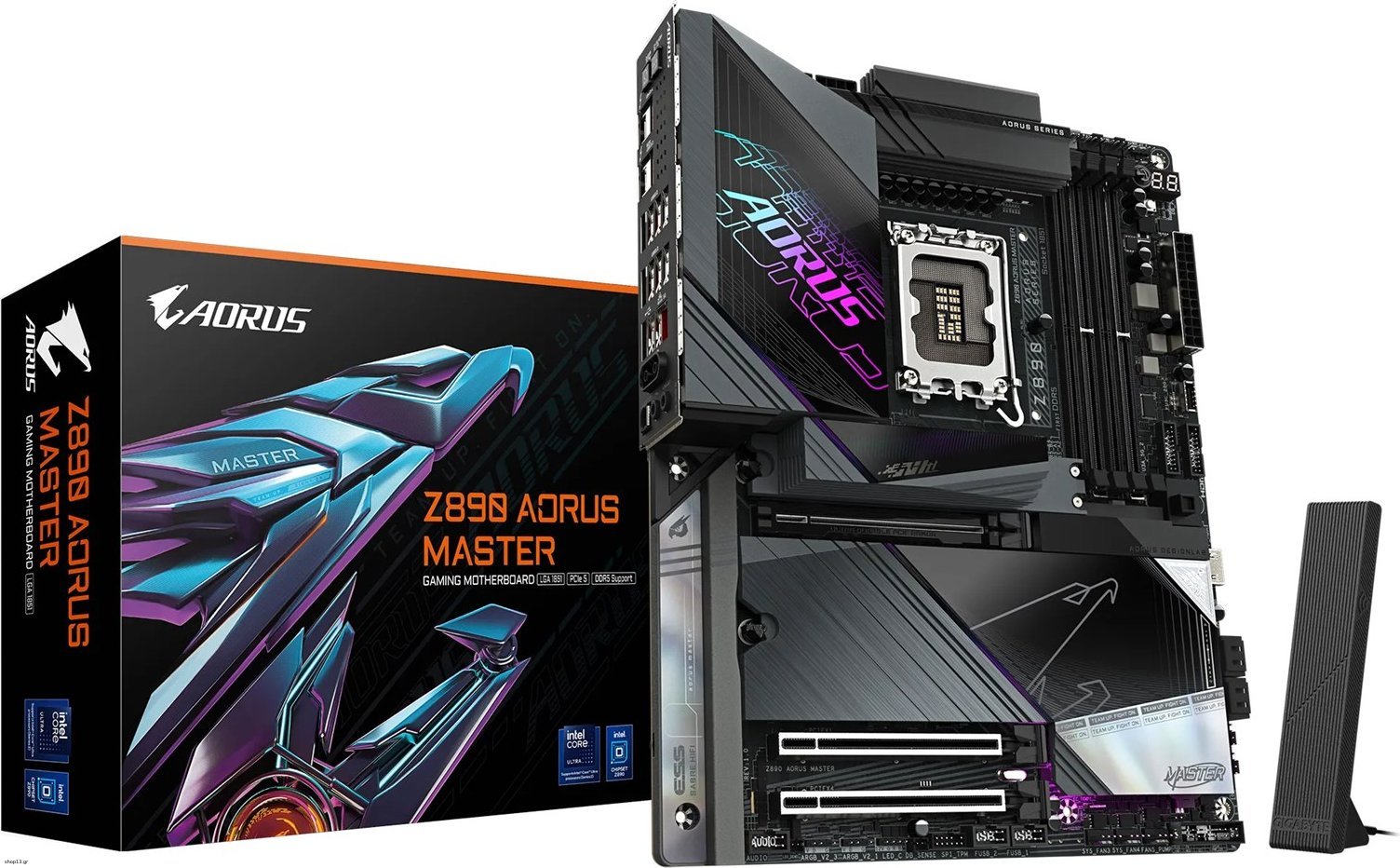

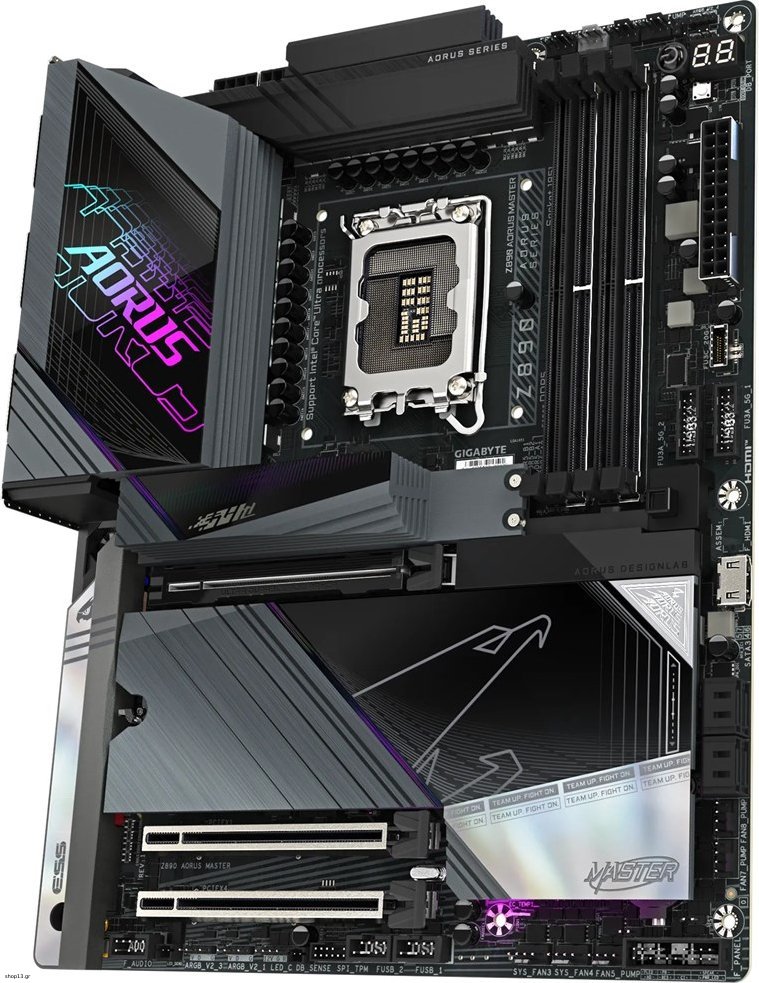

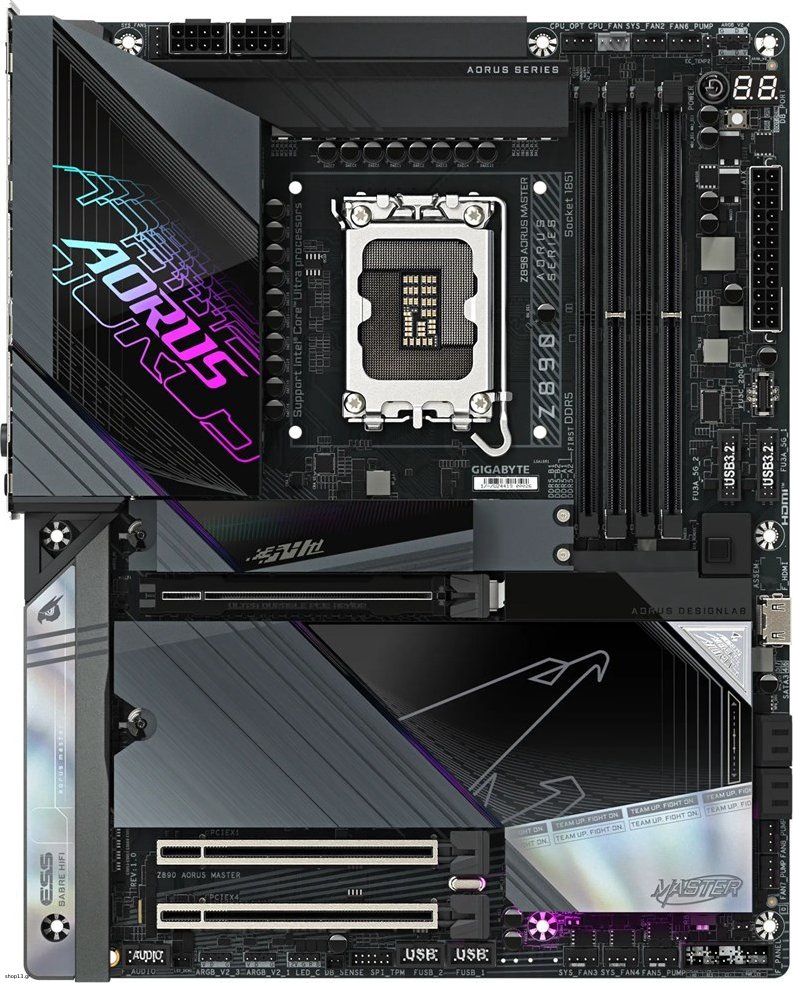

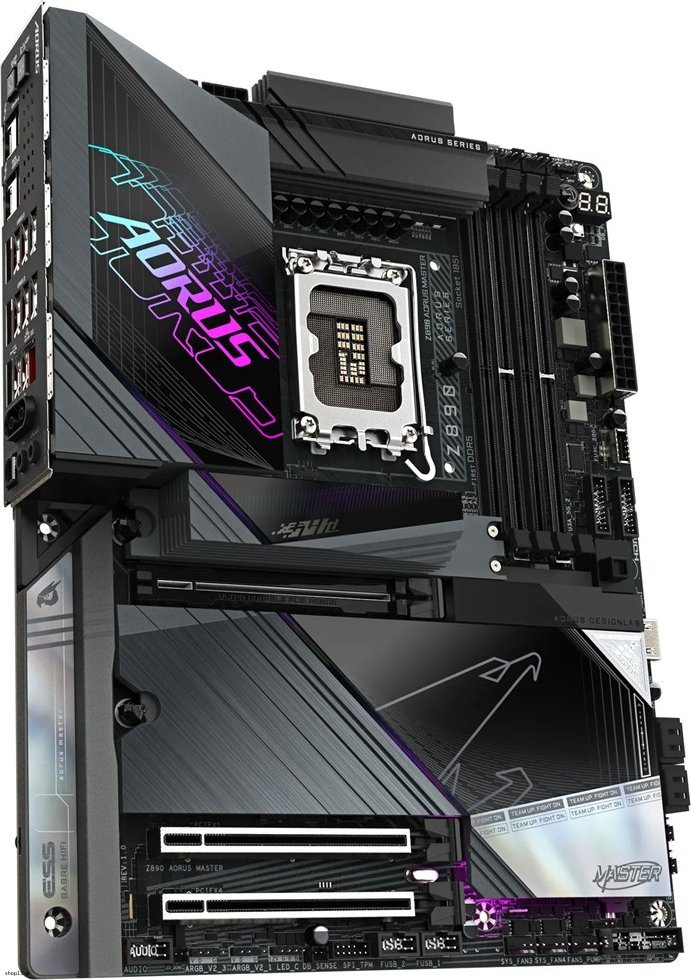

Gigabyte Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 18+1+2 Phases VRM, Up To 9500MHz DDR5 (OC), 2xPcie 5.0 + 3xPcie 4.0, Wi-Fi 7, 10GBe LAN, Thunderbolt 4 - (Z890 Aorus MASTER)

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: Intel Core Ultra (Series 2)
Maximum internal memory supported by processor: 256 GB
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851

Graphics
DirectX version: 12.0

Features
Product colour: Black
Motherboard chipset: Intel Z890
Motherboard form factor: ATX
PC health monitoring: Temperature, Voltage, Fan
Audio output channels: 5.1 channels
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11 x64

Memory
Supported memory clock speeds: 7600, 7800, 6000, 8000, 5600, 7200, 7000, 8200, 7950, 7900, 6400 MHz, 6600, 8600, 9500 MHz, 7400, 5800, 6200, 8400 MHz, 8266
Maximum internal memory: 256 GB
Supported memory module capacities: 16GB, 48GB, 1GB, 40GB, 8GB, 12GB, 64GB, 24GB, 2GB, 4GB, 32GB
Memory slots type: DIMM
Number of memory slots: 4
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
ECC ?ompatibility: Non-ECC
Supported memory clock speed (max): 9500 MHz

Weight & dimensions
Height: 35 mm
Depth: 244 mm
Width: 305 mm

Network
Bluetooth: Yes
Bluetooth version: 5.4
Ethernet LAN: Yes
WLAN controller model: Intel Wi-Fi 7 BE200
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Ethernet interface type: 10 Gigabit Ethernet

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
Number of SATA III connectors: 4
EPS power connector (8-pin): Yes
TPM connector: Yes
RGB LED pin header: Yes
Total number of SATA connectors: 4
12V power connector: Yes
USB 3.2 Gen 2x2 connectors: 1
ATX Power connector (24-pin): Yes

BIOS
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Clear CMOS button: Yes

Packaging data
Package weight: 2.51 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm

Packaging content
Batteries included: Yes

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Number of HDDs supported: 9
RAID levels: 10, 5, 0, 1
Number of storage drives supported: 4

Rear panel I/O ports
DisplayPorts quantity: 2
S/PDIF out port: Yes
USB 2.0 ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Microphone in: Yes
Thunderbolt ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
Ethernet LAN (RJ-45) ports: 1

Expansion slots
Number of M.2 (M) slots: 5

Battery
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Battery type: CR2032
Lithium weight per battery: 0.07 g

Other features
Weight: 2.19 kg

Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)

Safety warning
Warnings: Do not open or modify the motherboard to prevent damage., When disposing of the product, follow local regulations for the recycling of electronics., In case of installation problems, contact a qualified service technician.


Warranty: warranty 36 months
