Περιγραφή
Processor
Supported processor sockets: LGA 1700
Compatible processor series: Intel(R) Celeron(R), Intel(R) Pentium(R) Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i3 14th Gen, Intel Core i3 13th Gen, Intel Core i3 12th Gen, Intel Core i7 13th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i9 13th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 14th Gen
Processor manufacturer: Intel
Processor socket: LGA 1700
Graphics
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Not supported
Features
PC health monitoring: Fan, Water cooling, Voltage, Temperature
Audio output channels: 7.1 channels
Power source type: ATX
Motherboard form factor: micro ATX
Cooling type: Passive
Motherboard chipset family: Intel
Motherboard chipset: Intel B760 Express
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Memory
Supported memory clock speeds: 5200, 4800, 5600 MHz, 4400
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Supported memory clock speed (max): 5600 MHz
Maximum internal memory per slot: 64 GB
ECC ?ompatibility: ECC & Non-ECC
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Weight & dimensions
Width: 244 mm
Depth: 174 mm
Network
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Internal I/O
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
USB 2.0 connectors: 2
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 3
Parallel connector: Yes
S/PDIF out connector: Yes
Serial port headers: 1
CPU fan connector: Yes
Number of RGB LED pin headers: 3
Number of EPS power connectors (8-pin): 1
Number of CPU fan connectors: 1
12V power connector: Yes
TPM connector: Yes
Front panel connector: Yes
RGB LED pin header: Yes
BIOS
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID support: Yes
RAID levels: 5, 1, 10, 0
Number of HDDs supported: 4
Number of storage drives supported: 6

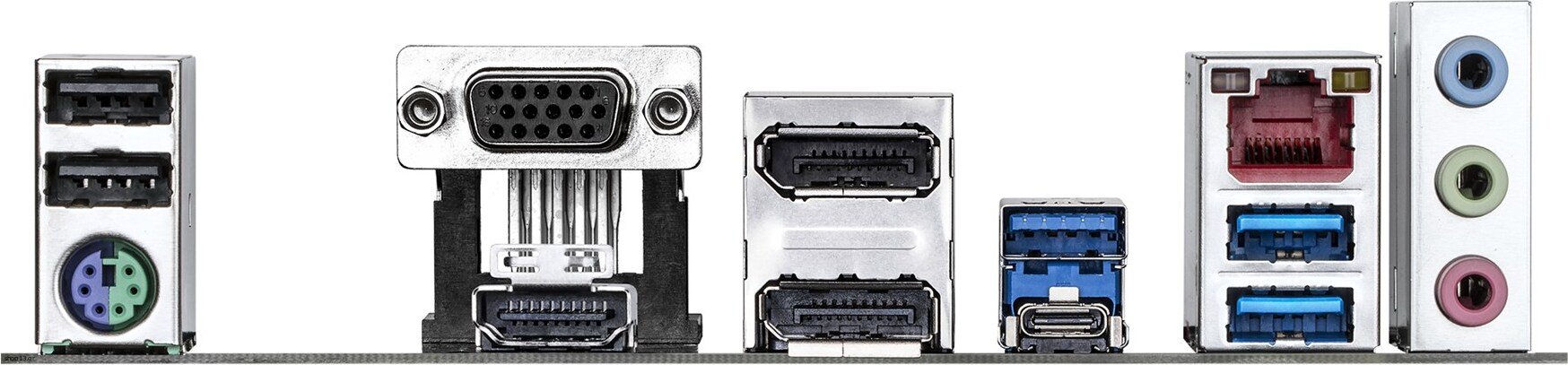

Rear panel I/O ports
DisplayPort version: 1.2
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
PS/2 ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
VGA (D-Sub) ports quantity: 1
Line-in: Yes
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Expansion slots
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 2
2nd M.2 largest key size: 2280
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 5.x) slots: 1
Warranty: warranty 36 months
