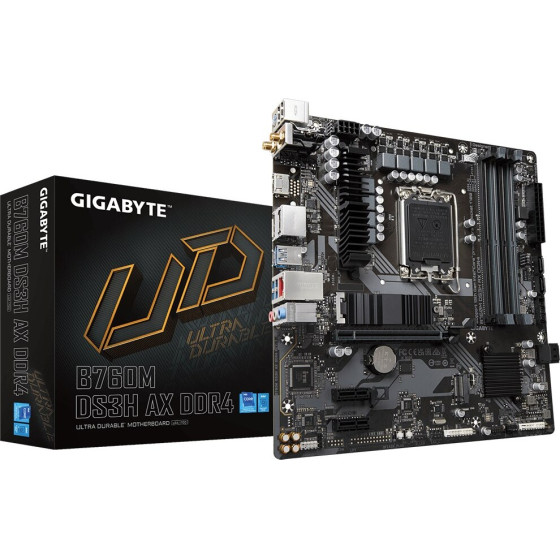

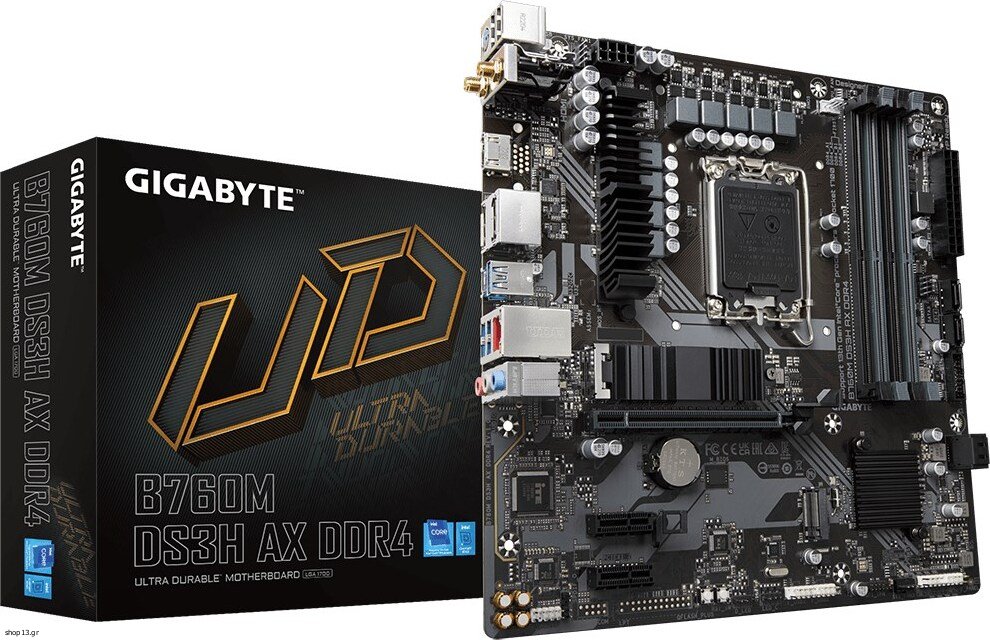

Gigabyte Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2 - (B760M DS3H AX DDR4)

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: Intel(R) Core(TM) i5, Intel(R) Celeron(R), Intel(R) Core(TM) i3, Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Pentium(R) Gold
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Processor socket: LGA 1700

Graphics
DirectX version: 12.0
HDCP: Yes
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels

Features
Motherboard chipset: Intel B760 Express
Product colour: Bronze
PC health monitoring: Fan, Water cooling, Temperature, Voltage
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard chipset family: Intel

Memory
Supported memory clock speeds: 3733, 4300, 4400, 5000, 3000, 5333 MHz, 4133, 4000, 3666, 4800, 4933, 3800, 3333, 4600, 4500, 2400, 4700, 3400, 3866, 3466, 2933, 3600, 3300, 5133, 3200 MHz, 2666, 4266, 2133
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Number of memory slots: 4
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Supported memory clock speed (max): 5333 MHz
ECC ?ompatibility: ECC & Non-ECC

Weight & dimensions
Width: 244 mm
Height: 35 mm
Depth: 244 mm

Network
Bluetooth: Yes
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth version: 5.2
Ethernet interface type: 2.5 Gigabit Ethernet
WLAN controller model: RZ608
Ethernet LAN: Yes
Wi-Fi: Yes

Internal I/O
S/PDIF out connector: Yes
USB 2.0 connectors: 2
Front panel audio connector: Yes
12V power connector: Yes
TPM connector: Yes
Total number of SATA connectors: 4
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Number of SATA III connectors: 4
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel connector: Yes
ATX Power connector (24-pin): Yes

BIOS
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI

Packaging data
Package depth: 265 mm
Package height: 54 mm
Package weight: 1.1 kg
Package width: 265 mm

Packaging content
Cables included: SATA
Batteries included: Yes

Storage controllers
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
RAID levels: 1, 0, 5, 10
RAID support: Yes
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
PS/2 ports quantity: 1
DisplayPorts quantity: 2
USB connector type: USB Type-A, USB Type-C
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 2
HDMI version: 2.0
WiFi-AP antenna jack: 2
Microphone in: Yes
HDMI ports quantity: 1
DisplayPort version: 1.2
Headphone outputs: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Expansion slots
PCI Express x16 slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 slots: 2

Battery
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Number of battery cells: 1
Battery type: CR2032
Lithium weight per battery: 0.07 g

Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)

Safety warning
Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.


Warranty: warranty 36 months
