Technical details
Warranty period: 3 year(s)
Processor
Compatible processor series: Intel(R) Celeron(R), Intel Core i9 13th Gen, Intel Core i3 12th Gen, Intel(R) Pentium(R) Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i5 12th Gen, Intel Core i9 14th Gen, Intel Core i7 13th Gen, Intel Core i3 14th Gen, Intel Core i3 13th Gen, Intel Core i7 14th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Processor socket: LGA 1700
Graphics
DirectX version: 12.0
Parallel processing technology support: Not supported
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels
Features
PC health monitoring: Fan, Voltage, Temperature, Water cooling
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Product colour: Black, Grey
Power source type: ATX
Motherboard form factor: micro ATX
Motherboard chipset: Intel B760 Express
Motherboard chipset family: Intel
Cooling type: Passive
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Memory
Supported memory clock speeds: 5600, 4800, 5200, 4400
Unbuffered memory: Yes
Maximum internal memory: 192 GB
Maximum internal memory per slot: 48 GB
ECC ?ompatibility: ECC & Non-ECC
Memory slots type: DIMM
Number of memory slots: 4
Memory channels: Dual-channel
Supported memory clock speed (max): 5600 MHz
Supported memory types: DDR5-SDRAM
Weight & dimensions
Height: 35 mm
Depth: 244 mm
Width: 244 mm
Network
Bluetooth: Yes
LAN controller: Realtek RTL8111H
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Bluetooth version: 5.3
Wi-Fi: Yes
Wi-Fi standards: 802.11 b/g/n, 802.11a, Wi-Fi 6 (802.11ax), 802.11ac
WLAN controller model: Realtek RTL8851BE
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Internal I/O
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
Number of SATA III connectors: 4
USB 2.0 connectors: 2
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 2
Number of EPS power connectors (8-pin): 1
Parallel connector: Yes
Serial port headers: 1
12V power connector: Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
RGB LED pin header: Yes
TPM connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 3
BIOS
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Packaging data
Package height: 54 mm
Package depth: 265 mm
Package width: 265 mm
Package weight: 1.2 kg
Packaging content
Antenna included: Yes
Screws included: Yes
Batteries included: Yes
Storage controllers
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Number of storage drives supported: 3
RAID levels: 1, 0, 5, 10
Number of HDDs supported: 4

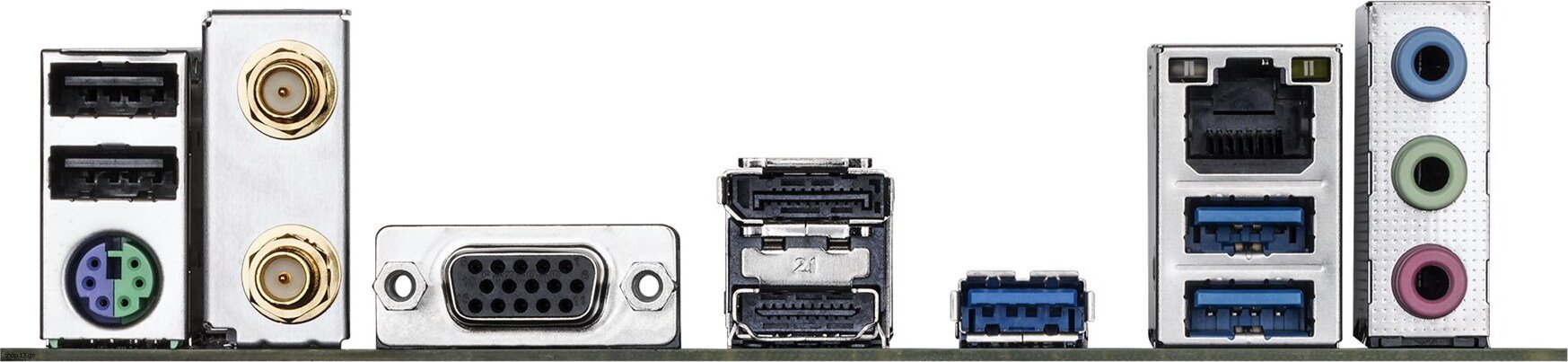

Rear panel I/O ports
DisplayPort version: 1.2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Headphone outputs: 1
USB 2.0 ports quantity: 2
Line-in: Yes
HDMI version: 2.1
WiFi-AP antenna jack: 2
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Battery
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Other features
Weight: 1.11 kg
Logistics data
Products per shipping (inner) case: 1 pc(s)
Warranty: warranty 36 months
