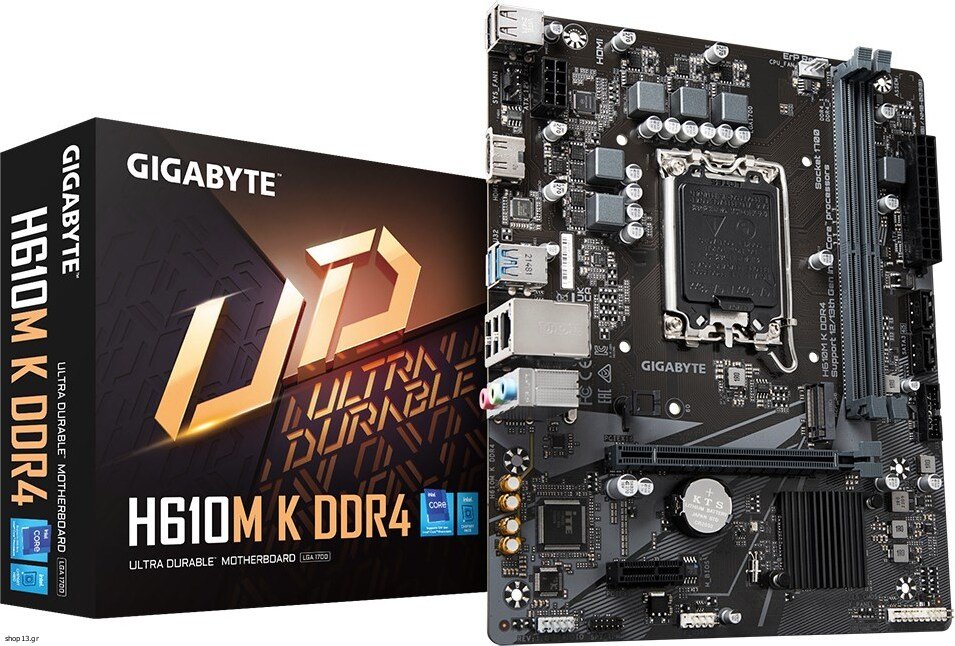

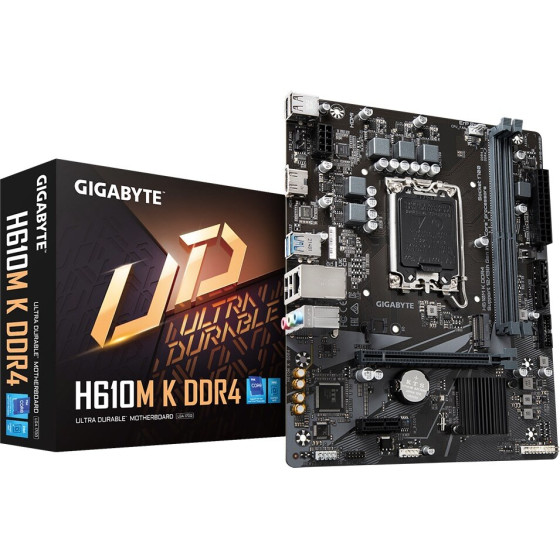

Gigabyte Motherboard - Supports Intel Core 14th Gen CPUs, 3+1+1 Phases Hybrid Power Design, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1 - (H610M K DDR4)

Technical details
Warranty period: 3 year(s)

Processor
Maximum number of SMP processors: 1
Compatible processor series: Intel(R) Celeron(R), Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Pentium(R) Gold, Intel(R) Core(TM) i3
Processor manufacturer: Intel
Processor socket: LGA 1700

Graphics
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Motherboard chipset: Intel H610 Express
Windows operating systems supported: Windows 10 x64, Windows 11 x64
PC health monitoring: Fan, Voltage, Water cooling, Temperature
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Power source type: ATX
Motherboard form factor: micro ATX
Product colour: Bronze

Memory
Supported memory clock speed (max): 3200 MHz
Number of memory slots: 2
Maximum RDIMM memory: 64 GB
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory clock speeds: 3000, 2400, 3200 MHz, 2666, 2933, 2133
Supported memory module capacities: 32GB, 12GB, 1GB, 8GB, 16GB, 2GB, 4GB
Maximum internal memory: 64 GB
Unbuffered memory: Yes
ECC ?ompatibility: ECC & Non-ECC

Weight & dimensions
Height: 35 mm
Width: 226 mm
Depth: 185 mm

Network
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H

Internal I/O
Total number of SATA connectors: 2
12V power connector: Yes
Audio connector: Yes
Number of SATA III connectors: 2
ATX Power connector (24-pin): Yes
Power fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel connector: Yes
TPM connector: Yes
Number of EATX power connectors: 1
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
CPU fan connector: Yes
USB 2.0 connectors: 1
Number of chassis fan connectors: 1

BIOS
Desktop Management Interface (DMI) version: 2.7
Clear CMOS button: Yes
BIOS type: UEFI AMI
Clear CMOS jumper: Yes

Packaging data
Package width: 265 mm
Package depth: 235 mm
Package weight: 717 g
Package height: 52 mm

Packaging content
Batteries included: Yes
Cables included: SATA

Storage controllers
Number of storage drives supported: 3
Number of HDDs supported: 2
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
Line-in: Yes
Headphone outputs: 1
HDMI version: 2.1
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB connector type: USB Type-A
USB 2.0 ports quantity: 4
HDMI ports quantity: 1

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1

Battery
Number of battery cells: 1
Battery weight: 3 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery: 0.07 g
Battery type: CR2032

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China

Safety warning
Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage.


Warranty: warranty 36 months
