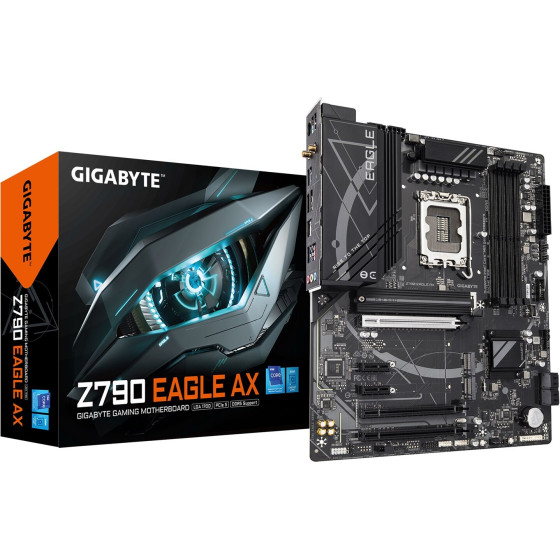

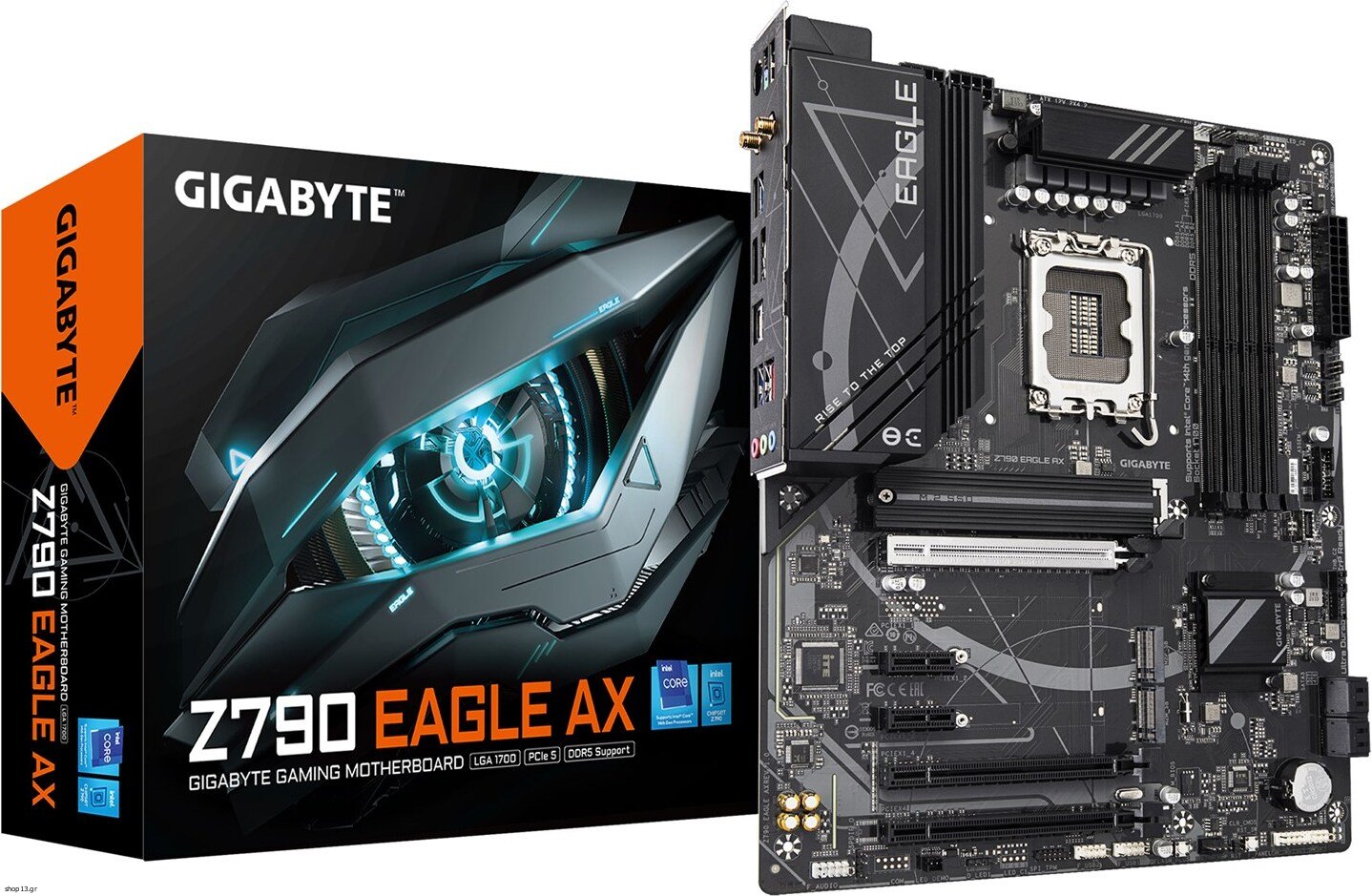

Gigabyte Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2 - (Z790 EAGLE AX)

Technical details
Warranty period: 3 year(s)

Processor
Maximum number of SMP processors: 1
Compatible processor series: Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Pentium(R) Gold, Intel(R) Core(TM) i5, Intel(R) Celeron(R), Intel(R) Core(TM) i3
Maximum internal memory supported by processor: 192 GB
Processor socket: LGA 1700
Processor manufacturer: Intel
Supported processor sockets: LGA 1700

Graphics
On-board graphics card: No
Parallel processing technology support: Not supported
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels

Features
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio chip: Realtek ALC897
Product colour: Bronze
PC health monitoring: Voltage, Water cooling, Temperature, Fan
Audio output channels: 7.1 channels
Power source type: ATX
Motherboard chipset family: Intel
Motherboard form factor: ATX
Motherboard chipset: Intel Z790 Express

Memory
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 7600 MHz
Memory slots type: DIMM
Number of memory slots: 4
Memory channels: Dual-channel
ECC ?ompatibility: ECC & Non-ECC
Supported memory module capacities: 2GB, 4GB, 8GB, 16GB, 48GB, 32GB, 12GB, 1GB
Supported memory clock speeds: 7400, 5800, 5400, 4400, 5200, 5600 MHz, 7200, 6400, 6200, 4800, 7000, 6000, 6800, 6600, 7600
Unbuffered memory: Yes
Maximum internal memory: 192 GB

Weight & dimensions
Width: 305 mm
Height: 35 mm
Depth: 244 mm

Network
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), 802.11b
Bluetooth version: 5.3
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
WLAN controller model: Intel Wi-Fi 6E AX211
Bluetooth: Yes

Internal I/O
RGB LED pin header: Yes
12V power connector: Yes
Front panel connector: Yes
Number of EATX power connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
CPU fan connector: Yes
Total number of SATA connectors: 4
TPM connector: Yes
EPS power connector (8-pin): Yes
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
Thunderbolt headers: 2
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2

BIOS
Clear CMOS button: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes

Packaging data
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Package weight: 1.81 kg

Packaging content
Batteries included: Yes
Cables included: SATA
Antenna included: Yes

Storage controllers
Number of HDDs supported: 4
RAID levels: 1, 5, 0, 10
Number of storage drives supported: 7
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
PS/2 ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB connector type: USB Type-C, USB Type-A
WiFi-AP antenna jack: 2
HDMI ports quantity: 1
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI version: 2.1
USB 2.0 ports quantity: 2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.2
S/PDIF out port: Yes

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1

Battery
Number of battery cells: 1
Battery weight: 3 g
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery: 0.07 g

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China

Safety warning
Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage.


Warranty: warranty 36 months
