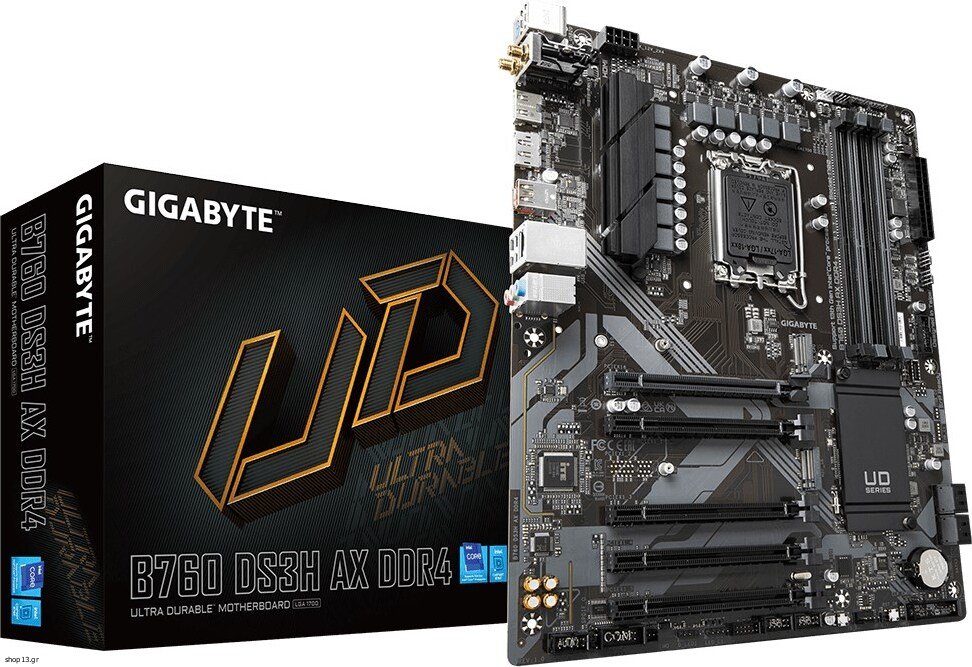

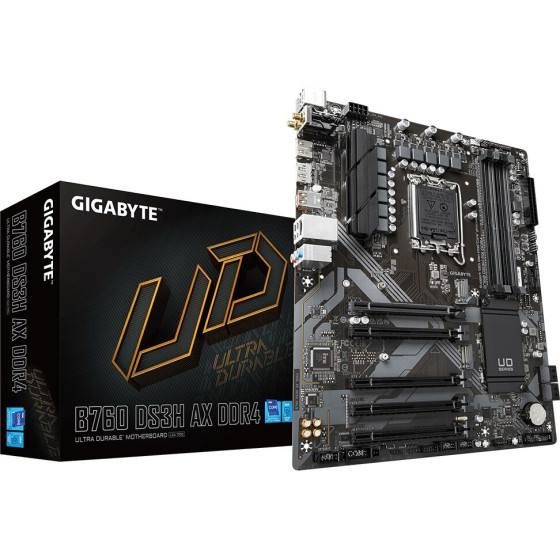

Gigabyte Motherboard - Supports Intel Core 14th CPUs, 8+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2 - (B760 DS3H AX DDR4)

Technical details
Warranty period: 3 year(s)

Processor
Processor socket: LGA 1700
Processor manufacturer: Intel
Compatible processor series: Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Pentium(R) Gold, Intel(R) Core(TM) i5, Intel(R) Celeron(R), Intel(R) Core(TM) i3
Maximum internal memory supported by processor: 128 GB
Supported processor sockets: LGA 1700

Graphics
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Not supported
HDCP: Yes
DirectX version: 12.0

Features
Motherboard chipset: Intel B760 Express
PC health monitoring: Water cooling, Voltage, Fan, Temperature
Motherboard chipset family: Intel
Motherboard form factor: ATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio output channels: 7.1 channels

Memory
Supported memory clock speeds: 3733, 3200 MHz, 2666, 4266, 4600, 3000, 5333 MHz, 3466, 4300, 4400, 5000, 2133, 4500, 2933, 3600, 3300, 5133, 3400, 3866, 2400, 4700, 4133, 4000, 3666, 4800, 4933, 3800, 3333
Supported memory types: DDR4-SDRAM
Supported memory module capacities: 8GB, 16GB, 12GB, 32GB, 1GB, 2GB, 4GB
Maximum internal memory: 128 GB
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory clock speed (max): 5333 MHz
Unbuffered memory: Yes

Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm

Network
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g, 802.11b, Wi-Fi 6E (802.11ax)
WLAN controller model: RZ608
Bluetooth version: 5.2
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: Yes

Internal I/O
Front panel connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
12V power connector: Yes
USB 2.0 connectors: 2
Number of SATA III connectors: 4
Serial port headers: 1
CPU fan connector: Yes
RGB LED pin header: Yes
TPM connector: Yes
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
S/PDIF out connector: Yes

BIOS
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
BIOS type: UEFI AMI

Packaging data
Package depth: 270 mm
Package width: 335 mm
Package height: 80 mm
Package weight: 1.49 kg

Packaging content
Batteries included: Yes
Cables included: SATA

Storage controllers
RAID levels: 10, 0, 1, 5
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes
Number of HDDs supported: 4

Rear panel I/O ports
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB connector type: USB Type-C, USB Type-A
PS/2 ports quantity: 1
DisplayPort version: 1.2
HDMI ports quantity: 1
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
HDMI version: 2.0
Headphone outputs: 3
WiFi-AP antenna jack: 2

Expansion slots
PCI Express x16 slots: 5
Number of M.2 (M) slots: 2

Battery
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Lithium weight per battery: 0.07 g

Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)


Warranty: warranty 36 months
