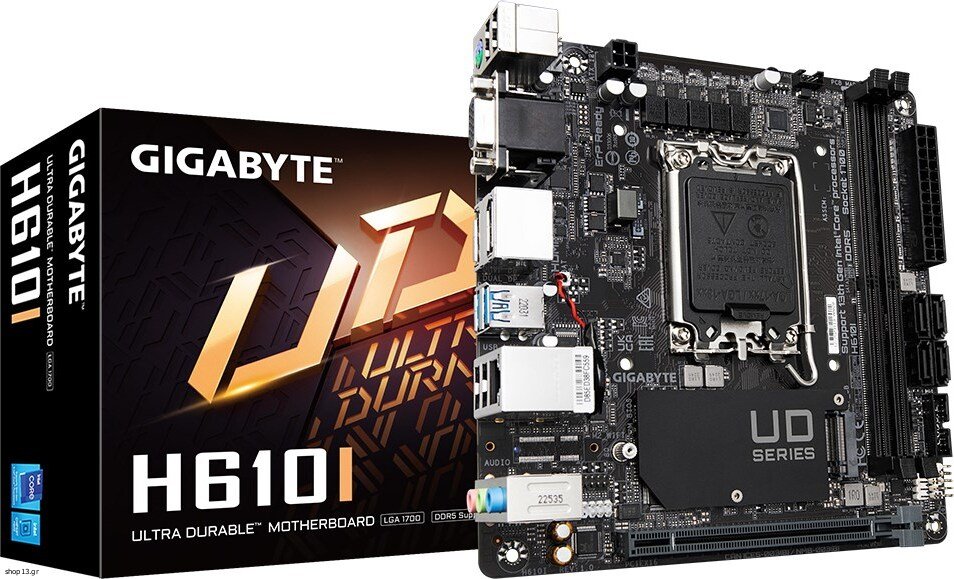

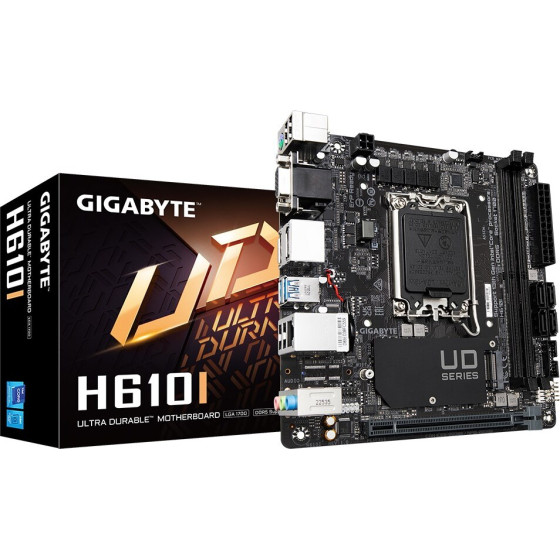

Gigabyte Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1 - (H610I)

Technical details
Warranty period: 3 year(s)

Processor
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Compatible processor series: Intel Pentium G, Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Core(TM) i3, Intel(R) Core(TM) i5, Intel(R) Celeron(R)
Processor socket: LGA 1700
Maximum internal memory supported by processor: 64 GB

Graphics
Graphics card family: Intel
Graphics card: HD Graphics
HDCP: Yes
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels

Features
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Product colour: Black
PC health monitoring: Fan, Temperature, Voltage
Motherboard form factor: mini ITX
Cooling type: Active
Audio chip: Realtek ALC897
Power source type: ATX
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Motherboard chipset: Intel H610 Express

Memory
ECC ?ompatibility: ECC & Non-ECC
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Supported memory module capacities: 1GB, 32GB, 2GB, 4GB, 8GB, 16GB, 12GB
Supported memory clock speeds: 4800, 4400, 5600 MHz, 5200
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory clock speed (max): 5600 MHz
Maximum internal memory: 64 GB

Weight & dimensions
Width: 170 mm
Height: 35 mm
Depth: 170 mm

Network
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No

Internal I/O
TPM connector: Yes
Front panel connector: Yes
Chassis intrusion connector: Yes
Number of chassis fan connectors: 2
Front panel audio connector: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
CPU fan connector: Yes
Serial port headers: 1
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 1
12V power connector: Yes
RGB LED pin header: Yes

BIOS
Clear CMOS jumper: Yes
Clear CMOS button: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI

Packaging data
Package depth: 180 mm
Package width: 222 mm
Package height: 65 mm
Package weight: 590 g

Packaging content
Cables included: SATA
Batteries included: Yes

Storage controllers
Number of storage drives supported: 5
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 1

Rear panel I/O ports
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
PS/2 ports quantity: 1
HDMI version: 2.0
Headphone outputs: 3
Microphone in: Yes
VGA (D-Sub) ports quantity: 1
DisplayPort version: 1.2
USB connector type: USB Type-A
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x16 slots: 1

Battery
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China


Warranty: warranty 36 months
