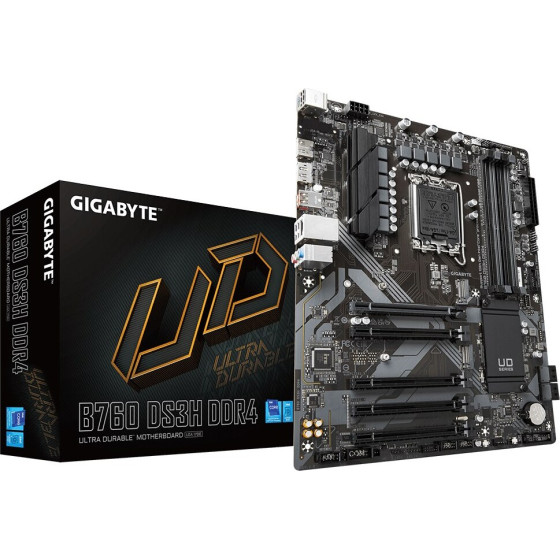

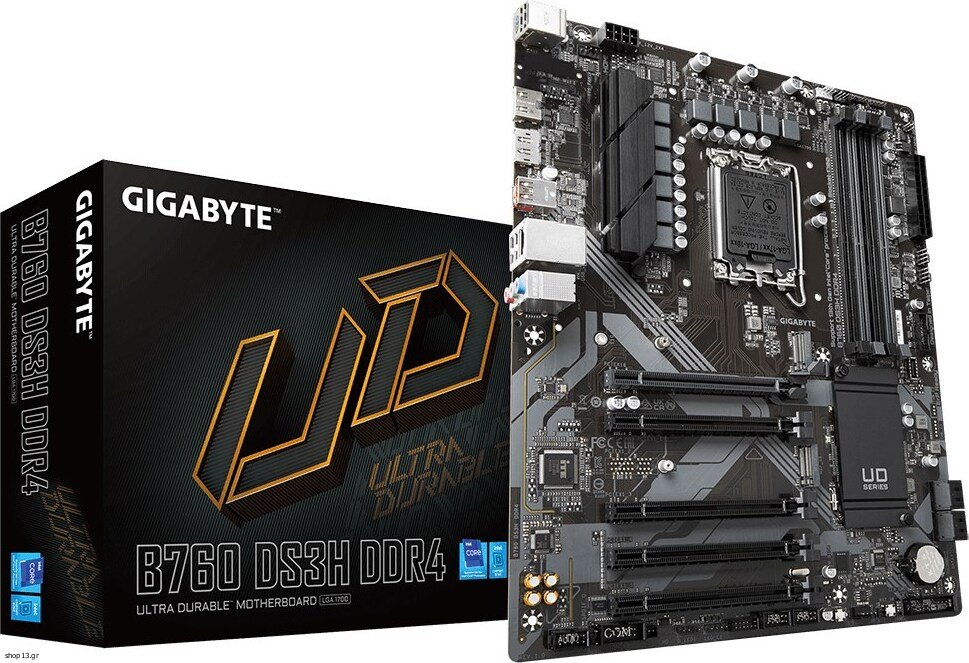

Gigabyte Motherboard - Supports Intel Core 14th CPUs, 18+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2 - (B760 DS3H DDR4)

Technical details
Warranty period: 3 year(s)

Processor
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Compatible processor series: Intel(R) Core(TM) i3, Intel(R) Core(TM) i5, Intel(R) Celeron(R), Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Pentium(R) Gold
Maximum internal memory supported by processor: 128 GB
Processor socket: LGA 1700

Graphics
DirectX version: 12.0
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
Parallel processing technology support: Not supported

Features
PC health monitoring: Water cooling, Temperature, Fan, Voltage
Motherboard chipset: Intel B760 Express
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard chipset family: Intel

Memory
Supported memory clock speeds: 3000, 5333 MHz, 3200 MHz, 2666, 4266, 3466, 4133, 4000, 3666, 4800, 4933, 3733, 4300, 4400, 5000, 4500, 2133, 4600, 2933, 3600, 3300, 5133, 2400, 4700, 3800, 3333, 3400, 3866
Number of memory slots: 4
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 12GB, 32GB
Memory channels: Dual-channel
Supported memory types: DDR4-SDRAM
Supported memory clock speed (max): 5333 MHz
Maximum internal memory: 128 GB
Memory slots type: DIMM
Unbuffered memory: Yes

Weight & dimensions
Height: 35 mm
Width: 305 mm
Depth: 244 mm

Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No

Internal I/O
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
Total number of SATA connectors: 4
Front panel audio connector: Yes
S/PDIF out connector: Yes
CPU fan connector: Yes
Front panel connector: Yes
RGB LED pin header: Yes
Serial port headers: 1
EPS power connector (8-pin): Yes
TPM connector: Yes
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

BIOS
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7

Packaging data
Package width: 335 mm
Package weight: 1.31 kg
Package height: 80 mm
Package depth: 270 mm

Packaging content
Cables included: SATA
Batteries included: Yes

Storage controllers
RAID levels: 0, 1, 5, 10
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Number of storage drives supported: 6
Number of HDDs supported: 4

Rear panel I/O ports
Headphone outputs: 3
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
PS/2 ports quantity: 1
DisplayPorts quantity: 1
USB connector type: USB Type-A, USB Type-C
HDMI version: 2.0
Microphone in: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 2.0 ports quantity: 4
DisplayPort version: 1.2

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 slots: 5

Battery
Battery type: CR2032
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Lithium weight per battery: 0.07 g

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China


Warranty: warranty 36 months
