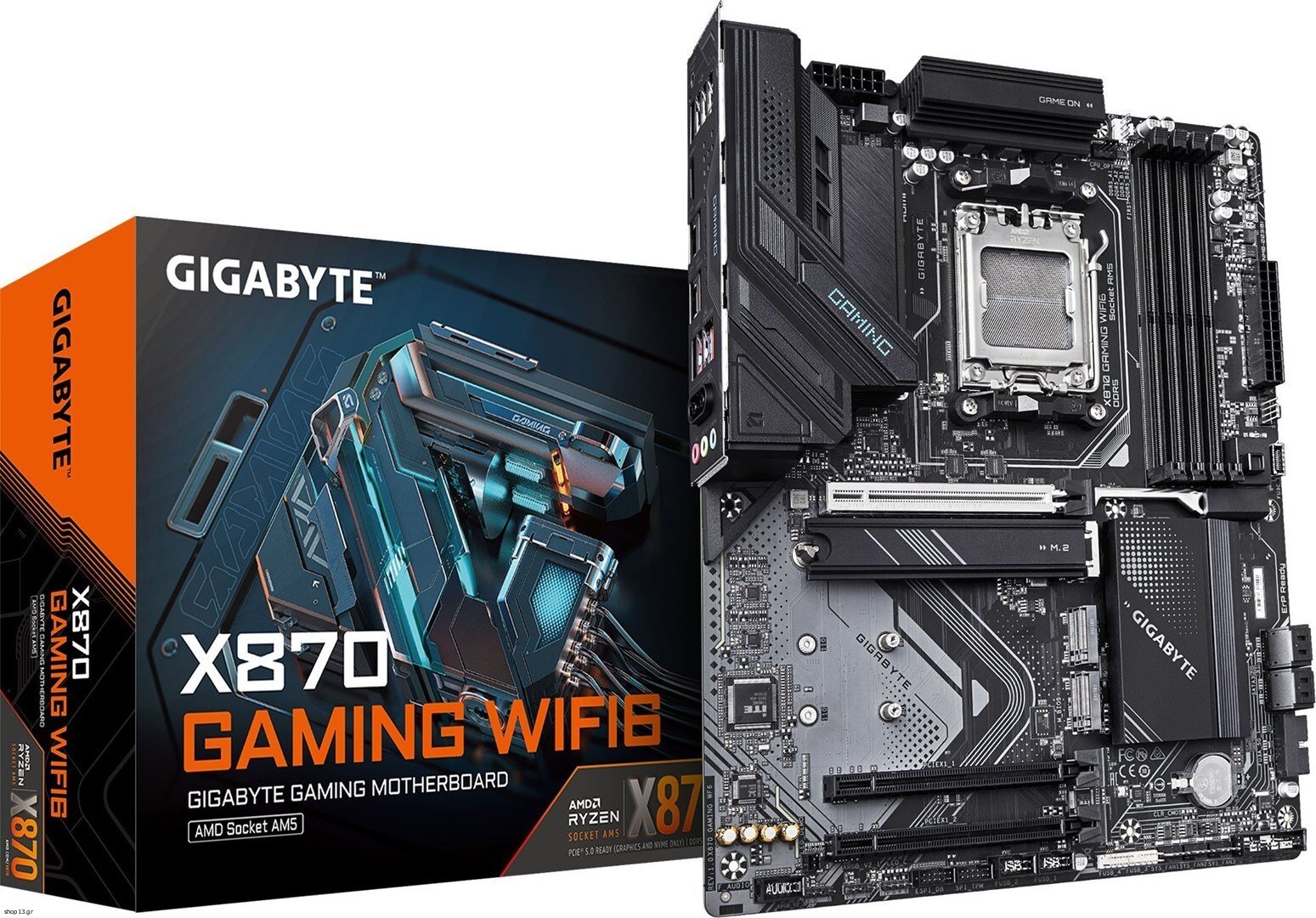

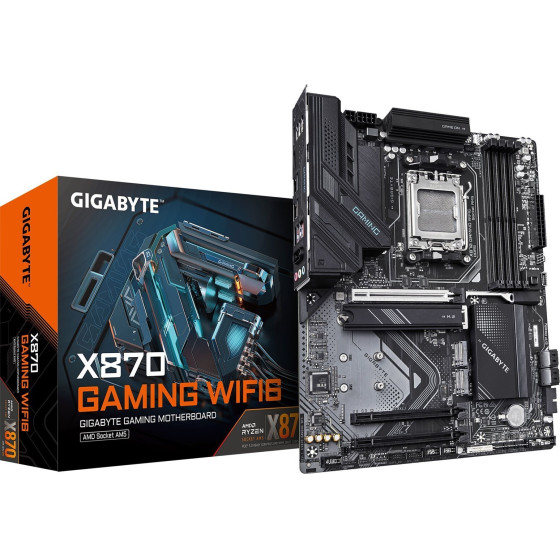

Gigabyte Motherboard - Supports AMD Ryzen 9000 CPUs, 8+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 6, 2.5GbE LAN, USB 4 - (X870 GAMING WIFI6)

Technical details
Warranty period: 3 year(s)

Processor
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen(TM) 7
Processor socket: Socket AM5
Maximum internal memory supported by processor: 256 GB

Graphics
DirectX version: 12.0

Features
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: ATX
Audio output channels: 7.1 channels
PC health monitoring: Fan, Voltage, Temperature
Motherboard chipset family: AMD
Product colour: Black
Motherboard chipset: AMD X870

Memory
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speed (max): 8000 MHz
Supported memory clock speeds: 5200, 6000, 7600, 7800, 7000, 4400, 8000, 5600 MHz, 7200, 6600, 6200, 6666, 6400, 4800, 6800
Supported memory module capacities: 2GB, 4GB, 64GB, 1GB, 40GB, 12GB, 48GB, 32GB, 8GB, 24GB, 16GB
Maximum internal memory: 256 GB

Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm

Network
Wi-Fi standards: 802.11g, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b
Bluetooth version: 5.3
WLAN controller model: Realtek RTL8851BE
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Bluetooth: Yes

Internal I/O
Total number of SATA connectors: 4
EPS power connector (8-pin): Yes
TPM connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
12V power connector: Yes
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
RGB LED pin header: Yes
USB 2.0 connectors: 4
USB 3.2 Gen 2x2 connectors: 1

BIOS
Desktop Management Interface (DMI) version: 2.7
Clear CMOS button: Yes
Clear CMOS jumper: Yes
BIOS type: UEFI AMI

Packaging data
Package width: 335 mm
Package height: 80 mm
Package depth: 270 mm
Package weight: 2.53 kg

Packaging content
Batteries included: Yes

Storage controllers
RAID levels: 1, 0, 10
Number of storage drives supported: 4
RAID support: Yes
Number of HDDs supported: 7
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DisplayPorts quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 2.0 ports quantity: 4
USB4 Gen 2x2 ports quantity: 2

Expansion slots
Number of M.2 (M) slots: 3
PCI Express x4 slots: 2
PCI Express x16 (Gen 5.x) slots: 1

Battery
Number of battery cells: 1
Battery type: CR2032
Battery weight: 3 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery: 0.07 g

Other features
Weight: 2.23 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China


Warranty: warranty 36 months
