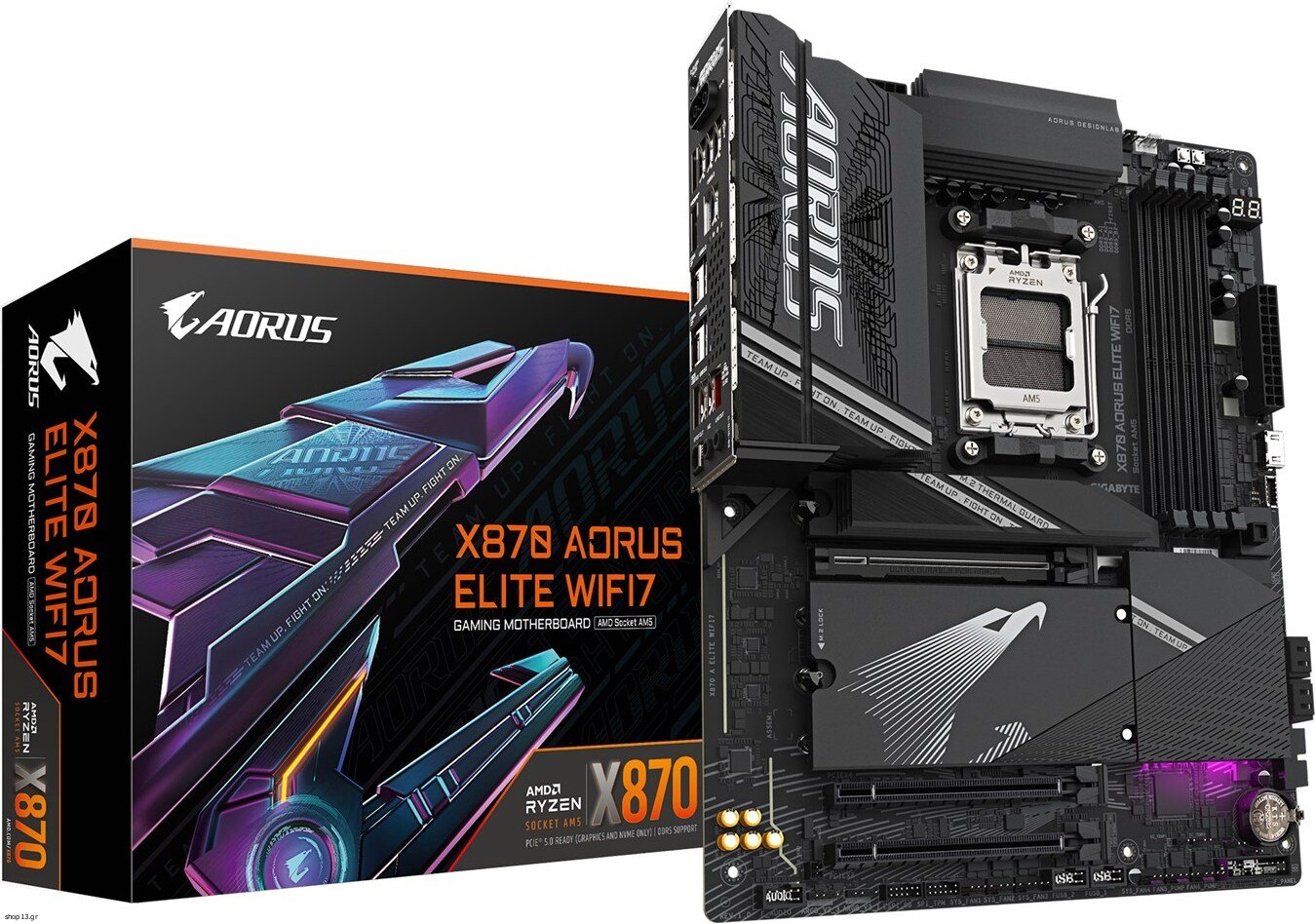

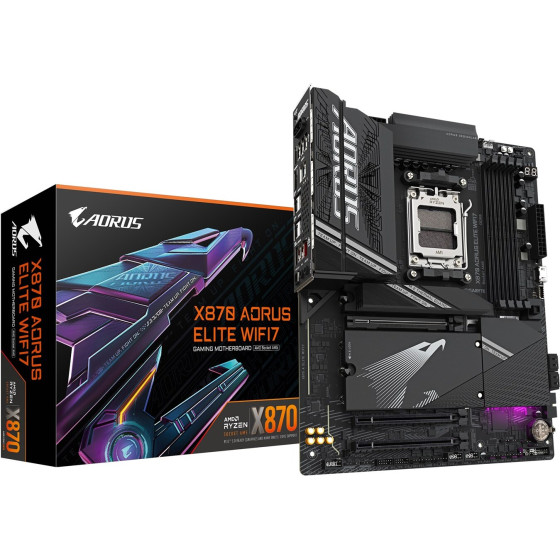

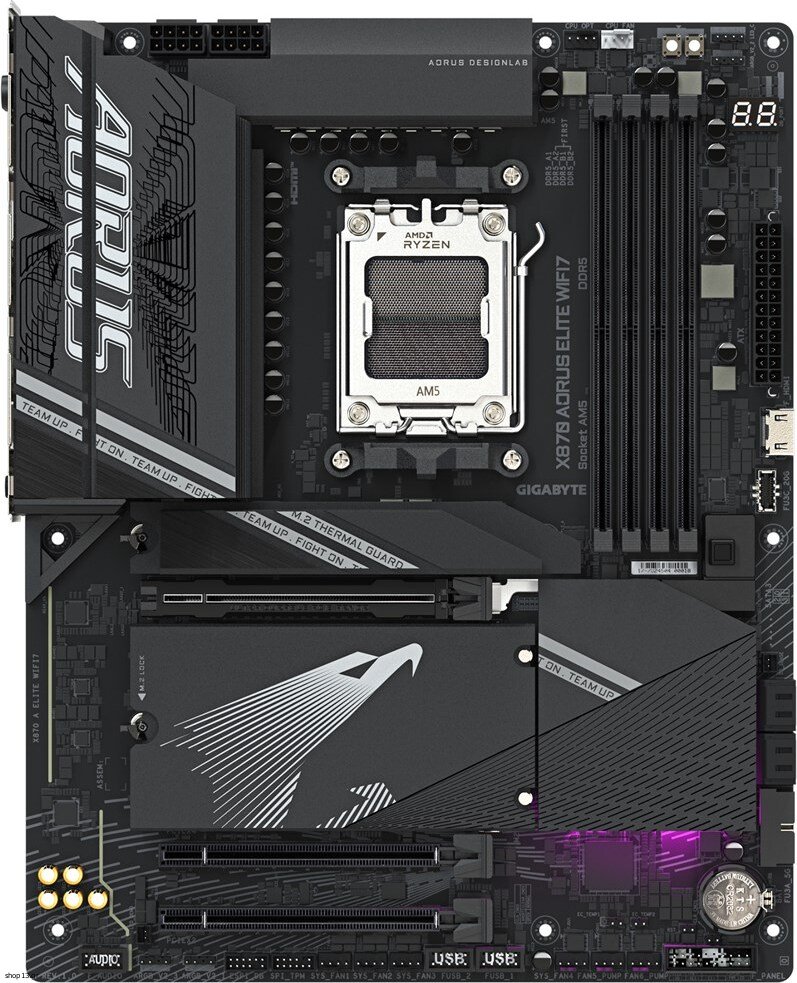

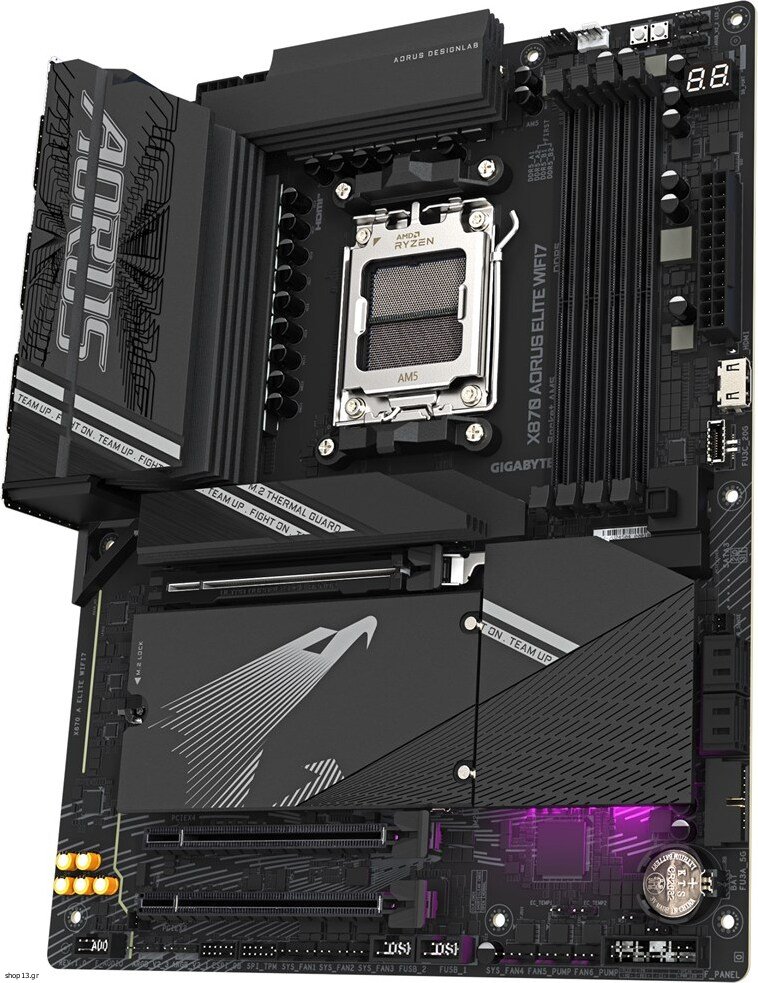

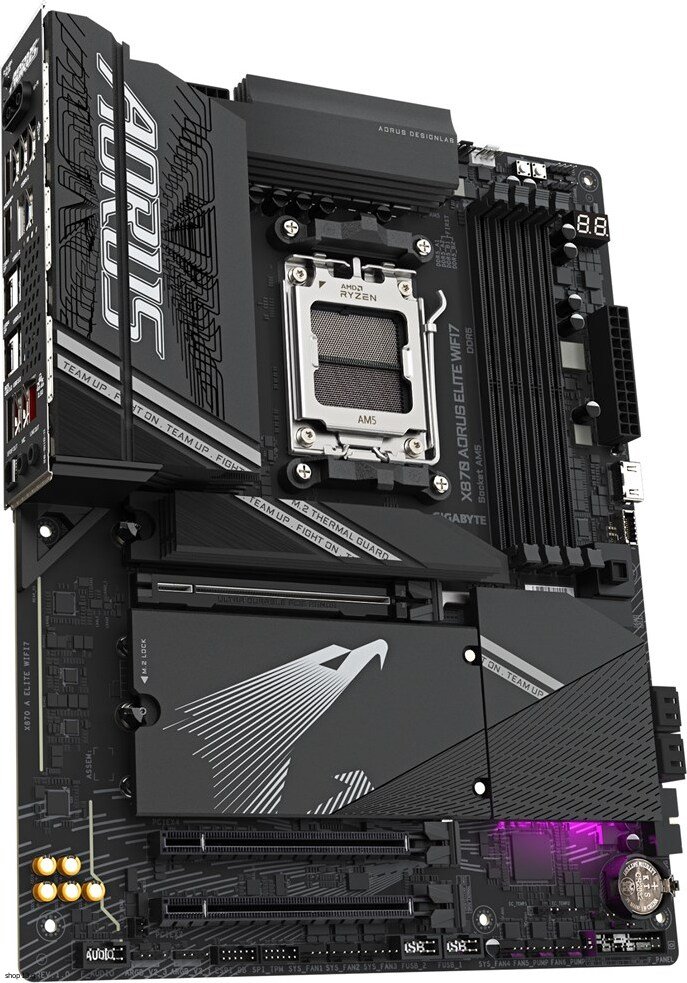

Gigabyte Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4 - (X870 AORUS ELITE WIFI7)

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Maximum internal memory supported by processor: 256 GB
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5

Graphics
On-board graphics card: No
DirectX version: 12.0
Parallel processing technology support: Not supported

Features
Audio chip: Realtek ALC1220
Product colour: Black
Motherboard chipset: AMD X870
Motherboard form factor: ATX
Audio output channels: 7.1 channels
PC health monitoring: Fan, Voltage, Temperature
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64

Memory
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 8200 MHz
ECC ?ompatibility: Non-ECC
Maximum internal memory per slot: 64 GB
Supported memory clock speeds: 6200, 6666, 5200, 6400, 6600, 4400, 8000, 4800, 7600, 7800, 5600 MHz, 7200, 6000, 7000, 8200, 6800
Supported memory module capacities: 32GB, 24GB, 1GB, 8GB, 16GB, 2GB, 4GB
Maximum internal memory: 256 GB

Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm

Network
WLAN controller model: MediaTek MT7925
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Ethernet LAN: Yes
Bluetooth version: 5.4
Wi-Fi standards: Wi-Fi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth: Yes
LAN controller: Realtek RTL8125

Internal I/O
TPM connector: Yes
RGB LED pin header: Yes
Number of water pump connectors: 3
Number of RGB LED pin headers: 4
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 2
USB 3.2 Gen 2x2 connectors: 1
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 6
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Front panel connector: Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 2.0 connectors: 2

BIOS
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging data
Package depth: 270 mm
Package height: 80 mm
Package weight: 2.74 kg
Package width: 335 mm

Packaging content
Screws included: Yes
Antenna included: Yes
Batteries included: Yes

Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 8
RAID levels: 1, 10, 0
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
Microphone in: Yes
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
WiFi-AP antenna jack: 2
USB4 Gen 2x2 ports quantity: 2
HDMI version: 2.1
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 2
USB 2.0 ports quantity: 2
S/PDIF out port: Yes
DisplayPort version: 1.4

Expansion slots
2nd M.2 largest key size: 22110
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 highest PCI Express generation: 5.0
PCI Express x4 slots: 2
4th M.2 highest PCI Express generation: 4.0
4th M.2 largest key size: 22110
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
3rd M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 22110
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 4

Battery
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Battery type: CR2032
Lithium weight per battery: 0.07 g

Other features
Weight: 2.4 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China

Safety warning
Warnings: Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.


Warranty: warranty 36 months
