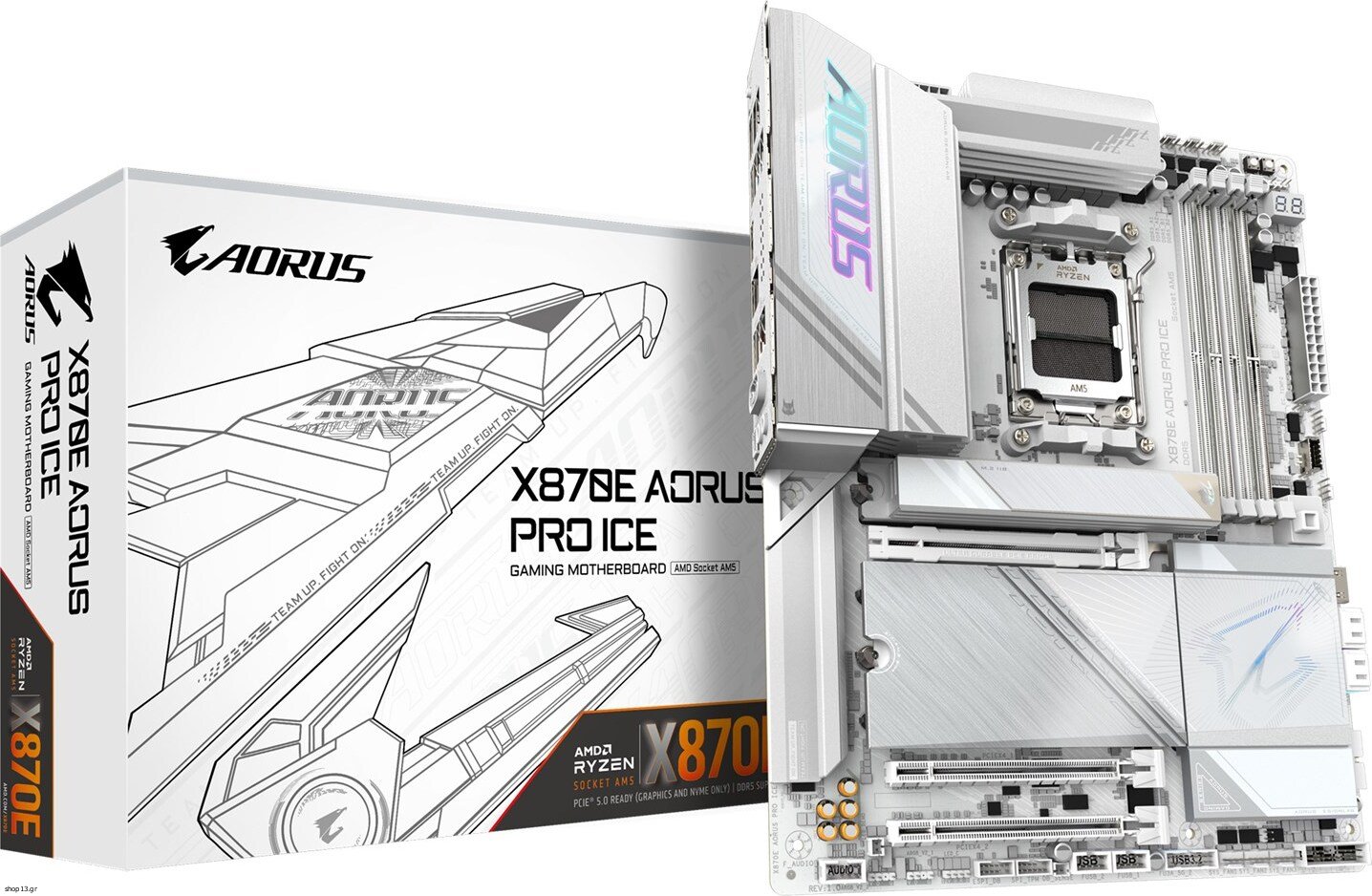

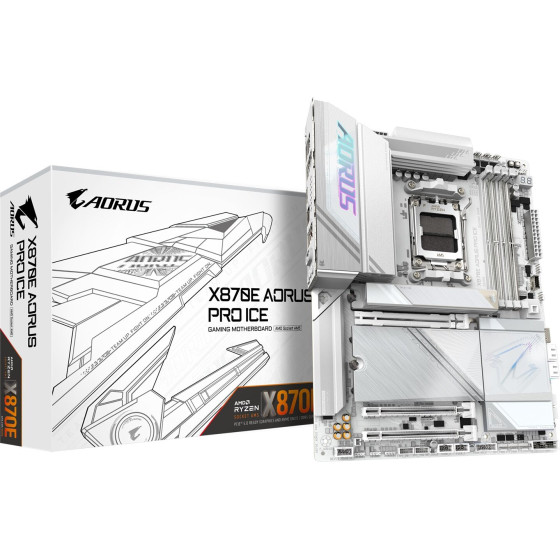

Gigabyte Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4 - (X870E AORUS PRO ICE)

Technical details
Warranty period: 3 year(s)

Processor
Maximum internal memory supported by processor: 256 GB
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported
DirectX version: 12.0
On-board graphics card: No

Features
Product colour: White
Motherboard chipset: AMD X870E
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
PC health monitoring: Voltage, Fan, Temperature
Audio chip: Realtek ALC1220
Motherboard form factor: ATX
Windows operating systems supported: Windows 11 x64

Memory
ECC ?ompatibility: Non-ECC
Maximum internal memory per slot: 64 GB
Supported memory clock speed (max): 8200 MHz
Supported memory clock speeds: 8000, 7600, 7800, 6600, 6800, 4400, 6200, 5600 MHz, 7000, 8200, 4800, 6000, 6400
Supported memory module capacities: 32GB, 1GB, 24GB, 8GB, 12GB, 2GB, 4GB
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel

Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm

Network
WLAN controller model: Qualcomm QCNCM865
Bluetooth version: 5.3
Bluetooth: Yes
LAN controller: Realtek RTL8125
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi standards: Wi-Fi 7 (802.11be)
Wi-Fi: Yes

Internal I/O
RGB LED pin header: Yes
Number of CPU fan connectors: 2
Number of water pump connectors: 2
Audio connector: Yes
Number of RGB LED pin headers: 4
USB 3.2 Gen 2x2 connectors: 1
Number of EPS power connectors (8-pin): 2
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
Number of SATA III connectors: 4
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of chassis fan connectors: 6
TPM connector: Yes
EPS power connector (8-pin): Yes
CPU fan connector: Yes

BIOS
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Clear CMOS button: Yes

Packaging data
Package weight: 2.74 kg
Package width: 345 mm
Package depth: 294 mm
Package height: 80 mm

Packaging content
Antenna included: Yes
Screws included: Yes
Batteries included: Yes

Storage controllers
Number of HDDs supported: 4
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID levels: 1, 0, 10
Number of storage drives supported: 8

Rear panel I/O ports
WiFi-AP antenna jack: 2
USB4 Gen 2x2 ports quantity: 2
DisplayPort version: 1.4
S/PDIF out port: Yes
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
HDMI version: 2.1
Headphone outputs: 1

Expansion slots
2nd M.2 largest key size: 22110
PCI Express x16 (Gen 5.x) slots: 1
3rd M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 25110
PCI Express x16 (Gen 4.x) slots: 1
3rd M.2 highest PCI Express generation: 5.0
4th M.2 highest PCI Express generation: 4.0
PCI Express x4 slots: 2
2nd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 22110
Number of M.2 (M) slots: 4
PCI Express x16 (Gen 3.x) slots: 1

Battery
Number of battery cells: 1
Lithium weight per battery: 0.07 g
Battery weight: 3 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032

Other features
Weight: 2.4 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China


Warranty: warranty 36 months
