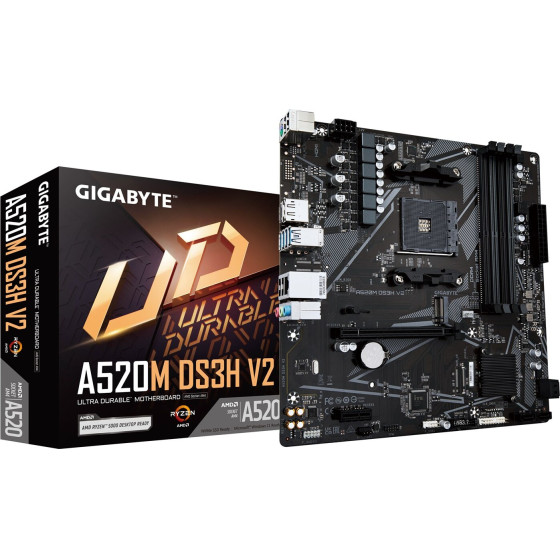

Gigabyte Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1 - (A520M DS3H V2)

Technical details
Warranty period: 3 year(s)

Processor
Maximum number of SMP processors: 1
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen Threadripper 3000 Series, AMD Ryzen 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Processor socket: Socket AM4
Maximum internal memory supported by processor: 128 GB
Supported processor sockets: Socket AM4

Graphics
Number of displays supported: 3
HDCP: Yes
Maximum resolution: 5120 x 2880 pixels

Features
Windows operating systems supported: Windows 10 x64
PC health monitoring: CPU, LED, Power supply, Voltage, Temperature
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Product colour: Black
Audio chip: Realtek ALC887
Cooling type: Active
Power source type: ATX

Memory
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Maximum internal memory: 128 GB
Supported memory module capacities: 8GB, 32GB, 16GB, 1GB, 2GB, 4GB
Supported memory clock speeds: 3333, 2933 MHz, 3600, 4733, 2400, 4000, 3200, 2667, 4400, 2133
ECC ?ompatibility: ECC & Non-ECC
Unbuffered memory: Yes

Weight & dimensions
Width: 244 mm
Height: 35 mm
Depth: 244 mm

Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No

Internal I/O
Total number of SATA connectors: 4
Number of EATX power connectors: 1
TPM connector: Yes
12V power connector: Yes
Number of SATA III connectors: 4
Power fan connector: Yes
Front panel connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Serial port headers: 1
CPU fan connector: Yes
USB 2.0 connectors: 1

BIOS
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
Clear CMOS button: Yes
BIOS type: UEFI AMI

Packaging data
Package height: 54 mm
Package depth: 265 mm
Package width: 265 mm
Package weight: 810 g

Packaging content
Batteries included: Yes
Cables included: SATA
Drivers included: Yes

Storage controllers
Number of storage drives supported: 5
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
RAID levels: 1, 0, 10
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
HDMI ports quantity: 1
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
PS/2 ports quantity: 1
HDMI version: 2.1
DVI-D ports quantity: 1
Microphone in: Yes
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Digital audio optical out: 1
USB connector type: USB Type-A
DisplayPort version: 2.0
DisplayPorts quantity: 1

Expansion slots
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 2

Battery
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China

Safety warning
Warnings: Dispose of according to local electro-waste regulations., Store away from water and sources of moisture., Avoid direct contact with sensitive electronic components.


Warranty: warranty 36 months
