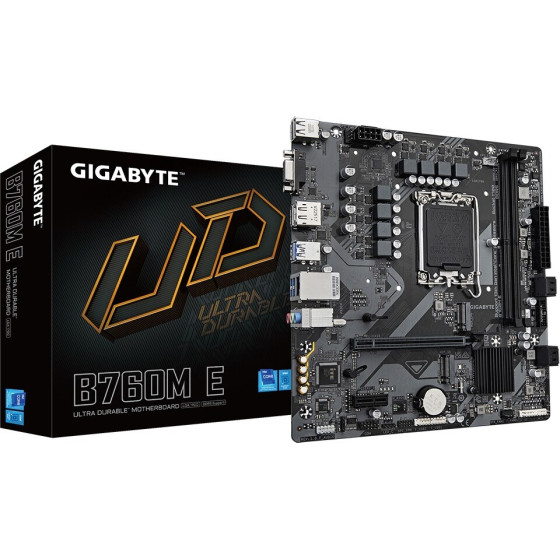

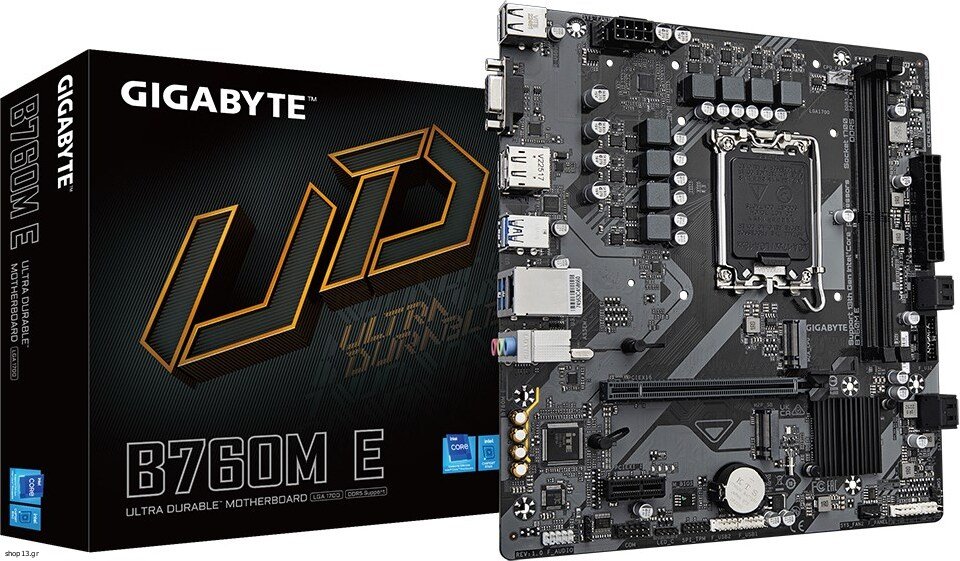

Gigabyte Motherboard - Supports 14th Gen. Intel Core CPUs, 6+1+1 phases VRM, up to 7200MHz DDR5 (OC), 2xPCIe 4.0 M.2, 1 GbE LAN, USB 3.2 Gen 1 - (B760M E)

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: Intel(R) Celeron(R), Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i3 14th Gen, Intel(R) Pentium(R) Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i7 13th Gen, Intel Core i3 13th Gen, Intel Core i9 13th Gen, Intel Core i3 12th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 14th Gen
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Processor socket: LGA 1700

Graphics
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported

Features
PC health monitoring: Water cooling, Fan, Voltage, Temperature
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Audio chip: Realtek ALC897
Motherboard chipset: Intel B760
Audio output channels: 7.1 channels
Cooling type: Passive
Motherboard chipset family: Intel
Power source type: ATX
Motherboard form factor: micro ATX

Memory
Supported memory clock speeds: 4000, 4800, 5600, 7200, 6400, 6600, 7000, 6000, 5200, 6200, 6800, 5800, 5400
Maximum internal memory: 128 GB
Supported memory clock speed (max): 7200 MHz
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
ECC ?ompatibility: ECC & Non-ECC
Unbuffered memory: Yes
Maximum internal memory per slot: 64 GB

Weight & dimensions
Height: 35 mm
Width: 230 mm
Depth: 215 mm

Network
LAN controller: Realtek RTL8111H
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet

Internal I/O
Number of RGB LED pin headers: 1
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 1
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
Serial port headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
TPM connector: Yes
S/PDIF out connector: Yes
12V power connector: Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
USB 2.0 connectors: 2
Number of chassis fan connectors: 2
Front panel connector: Yes
CPU fan connector: Yes

BIOS
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes

Packaging data
Package weight: 900 g
Package depth: 265 mm
Package height: 54 mm
Package width: 265 mm

Packaging content
Screws included: Yes

Storage controllers
Supported storage drive types: HDD & SSD
RAID support: Yes
RAID levels: 10, 1, 5, 0
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 6

Rear panel I/O ports
DisplayPorts quantity: 1
Microphone in: Yes
HDMI version: 2.1
DisplayPort version: 1.2
USB 2.0 ports quantity: 2
Line-in: Yes
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1

Expansion slots
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2

Battery
Number of battery cells: 1
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery: 0.07 g
Battery weight: 3 g


Warranty: warranty 36 months
