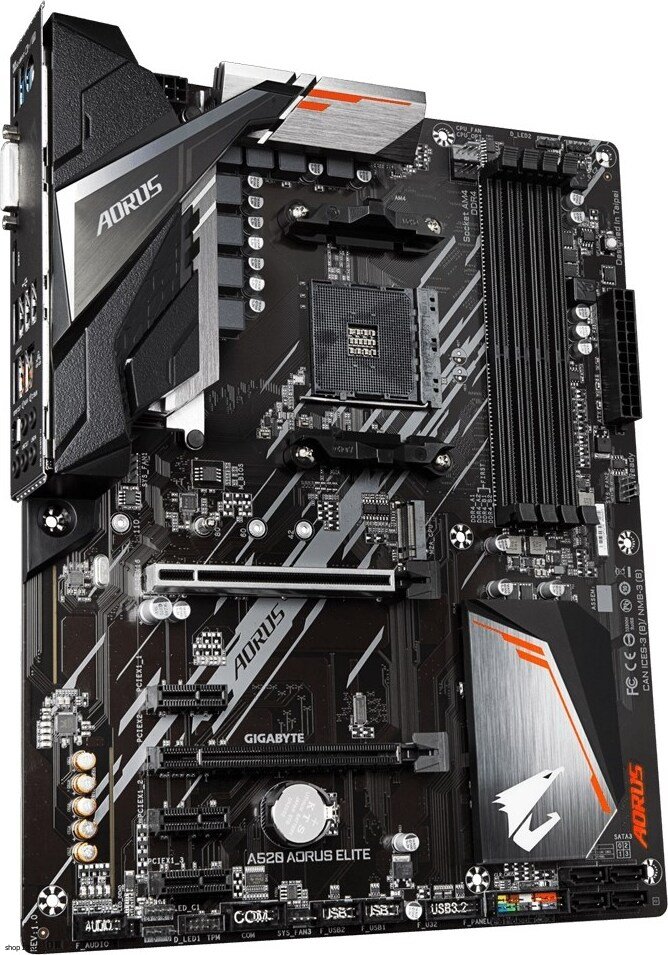

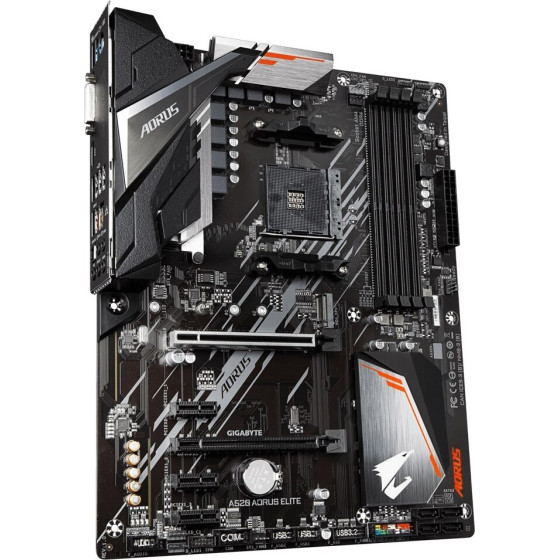

Gigabyte motherboard Socket AM4 ATX AMD A520 - (A520 AORUS ELITE)
[Κωδικός : 757852]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Processor
Compatible processor series: 3rd Generation AMD Ryzen(TM) 9, 3rd Generation AMD Ryzen(TM) 7, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen(TM) 3
Processor manufacturer: AMD
Supported processor sockets: Socket AM4
Processor socket: Socket AM4
Graphics
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Features
Motherboard chipset family: AMD
PC health monitoring: Temperature, Voltage, Fan
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Windows operating systems supported: Windows 10 x64
Audio chip: Realtek ALC1200
Motherboard chipset: AMD A520
Memory
Number of memory slots: 4
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Maximum internal memory: 128 GB
Supported memory clock speeds: 4600, 3200 MHz, 3333, 2400, 2133, 2933, 3600, 4733, 4000, 2667, 4400
Memory channels: Dual-channel
Unbuffered memory: Yes
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Internal I/O
RGB LED pin header: Yes
Serial port headers: 1
CPU fan connector: Yes
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
USB 2.0 connectors: 2
TPM connector: Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel connector: Yes
Power fan connector: Yes
BIOS
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Storage controllers
Supported storage drive interfaces: M.2, Serial ATA III
RAID levels: 10, 1, 0
Number of storage drives supported: 5
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI version: 2.1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 5
DVI-D ports quantity: 1
PS/2 ports quantity: 1
S/PDIF out port: Yes
Expansion slots
PCI Express x1 slots: 3
PCI Express x16 slots: 1
Number of M.2 (M) slots: 1
Warranty: warranty 36 months
Compatible processor series: 3rd Generation AMD Ryzen(TM) 9, 3rd Generation AMD Ryzen(TM) 7, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen(TM) 3
Processor manufacturer: AMD
Supported processor sockets: Socket AM4
Processor socket: Socket AM4
Graphics
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Features
Motherboard chipset family: AMD
PC health monitoring: Temperature, Voltage, Fan
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Windows operating systems supported: Windows 10 x64
Audio chip: Realtek ALC1200
Motherboard chipset: AMD A520
Memory
Number of memory slots: 4
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Maximum internal memory: 128 GB
Supported memory clock speeds: 4600, 3200 MHz, 3333, 2400, 2133, 2933, 3600, 4733, 4000, 2667, 4400
Memory channels: Dual-channel
Unbuffered memory: Yes
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Internal I/O
RGB LED pin header: Yes
Serial port headers: 1
CPU fan connector: Yes
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
USB 2.0 connectors: 2
TPM connector: Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel connector: Yes
Power fan connector: Yes
BIOS
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Storage controllers
Supported storage drive interfaces: M.2, Serial ATA III
RAID levels: 10, 1, 0
Number of storage drives supported: 5
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI version: 2.1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 5
DVI-D ports quantity: 1
PS/2 ports quantity: 1
S/PDIF out port: Yes
Expansion slots
PCI Express x1 slots: 3
PCI Express x16 slots: 1
Number of M.2 (M) slots: 1
Warranty: warranty 36 months
Χαρακτηριστικά
Μοντέλο
Gigabyte motherboard Socket AM4 ATX AMD A520 - (A520 AORUS ELITE)
Δείτε περισσότερα
