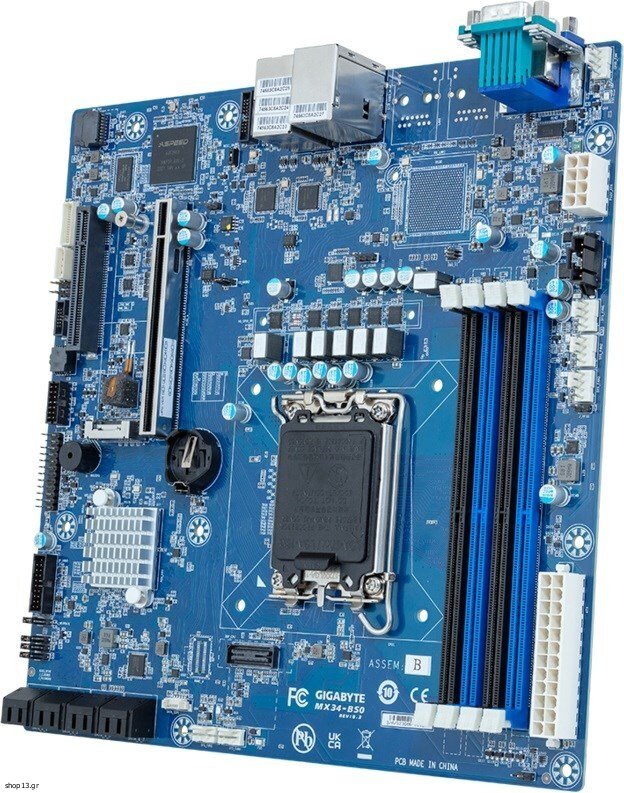

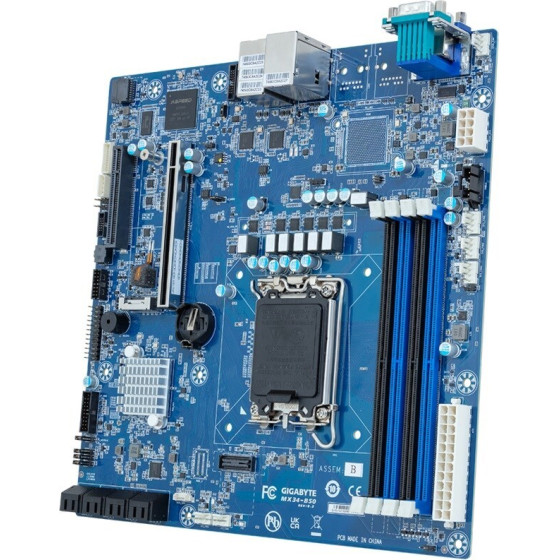

Gigabyte Motherboard - MX34-BS0 1x LGA 1700 Intel(R) Xeon(R) E-2400 / 6300 Intel(R) Pentium(R) Gold G7400 / G7400T Intel(R) C262 - (9MX34BS0MR-000)

Processor
Processor manufacturer: Intel
Compatible processor series: Intel Pentium Gold G7400T, Intel Xeon E-2400, Intel Pentium Gold G7400
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Maximum number of SMP processors: 1

Graphics
Parallel processing technology support: Not supported

Features
Motherboard form factor: micro ATX
Component for: Server/workstation
Motherboard chipset: Intel C262
Product colour: Blue
Motherboard chipset family: Intel

Memory
Supported memory clock speeds: 4000, 3600, 4400
Supported memory types: DDR5 UDIMM
Memory slots type: DIMM
Memory channels: Dual-channel
Number of memory slots: 4

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: 1 Gigabit Ethernet

Internal I/O
12V power connector: Yes
CPU fan connector: Yes
Number of SATA connectors: 8
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of chassis fan connectors: 5

Packaging data
Package depth: 308,5 mm
Package width: 321 mm
Package height: 78,5 mm

Packaging content
Cables included: 2 x SATA
DFU / User manual: Y

Storage controllers
Supported RAID configuration: 0,1,5,10
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes

Rear panel I/O ports
Port Management LAN: Yes, 1
COM ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x8 (Gen 4.x) slots: 1

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., The motherboard may contain electronic components hazardous to health - avoid direct contact., Do not open or disassemble the motherboard.


Warranty: warranty 36 months
