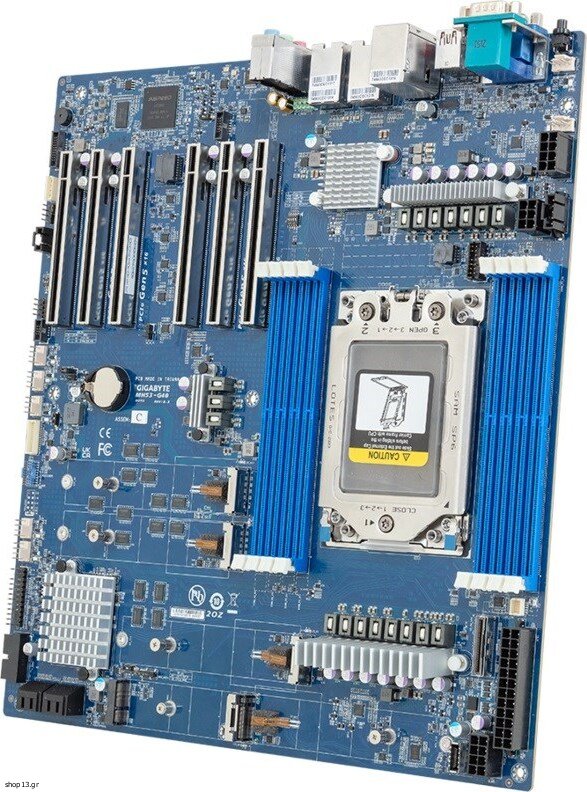

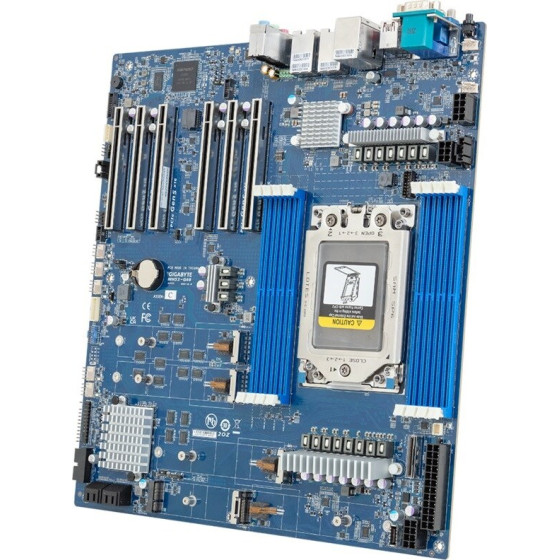

Gigabyte Motherboard - MH53-G40 1x sTR5 AMD Ryzen Threadripper PRO 7000 WRX90 - (9MH53G40MR-000)

Gigabyte Motherboard - MH53-G40 1x sTR5 AMD Ryzen Threadripper PRO 7000 WRX90 - (9MH53G40MR-000)
[Κωδικός : 757831]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*


Περιγραφή
Processor
Processor socket: Socket sTR5
Maximum number of SMP processors: 1
Supported processor sockets: Socket sTR5
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen Threadripper PRO 7000 WX-Series

Graphics
Parallel processing technology support: Not supported

Features
Product colour: Blue
Motherboard form factor: EATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Component for: Server/workstation
Motherboard chipset: AMD WRX90
Motherboard chipset family: AMD

Memory
Memory channels: Octa-channel
Supported memory clock speeds: 5200
Number of memory slots: 8
Supported memory types: DDR5 ECC RDIMM
Memory slots type: DIMM
ECC ?ompatibility: ECC

Weight & dimensions
Width: 304.8 mm
Depth: 330.2 mm

Network
Ethernet interface type: 10 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No

Internal I/O
ATX Power connector (24-pin): Yes
12V power connector: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 6
USB 3.2 Gen 2 (3.1 Gen 2) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
CPU fan connector: Yes
Number of MCIO connectors: 1

Packaging data
Package height: 78 mm
Package depth: 355 mm
Package width: 409 mm

Packaging content
DFU / User manual: Y

Storage controllers
RAID levels: 10, 1, 5, 0
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
COM ports quantity: 1
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Port Management LAN: Yes, 1
Number of audio jack connectors: 3

Expansion slots
PCI Express x16 (Gen 5.x) slots: 6

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Do not open or disassemble the motherboard., The motherboard may contain electronic components hazardous to health - avoid direct contact.


Warranty: warranty 36 months
