Περιγραφή
Processor
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Compatible processor series: AMD EPYC 4004 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Maximum number of SMP processors: 1
Processor socket: Socket AM5
Graphics
Parallel processing technology support: Not supported
Features
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset: AMD B650E
Motherboard form factor: micro ATX
Component for: Server/workstation
Product colour: Blue
Motherboard chipset family: AMD
Memory
Supported memory clock speeds: 5200, 4000, 4800, 3600, 4400
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
ECC ?ompatibility: ECC & Non-ECC
Weight & dimensions
Width: 244 mm
Depth: 244 mm
Network
Ethernet interface type: 10 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No
Internal I/O
CPU fan connector: Yes
Number of chassis fan connectors: 5
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
12V power connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 2x2 connectors: 1
Packaging data
Package width: 321 mm
Packaging content
DFU / User manual: Y
Cables included: SATA
Storage controllers
RAID levels: 1, 0, 10
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD

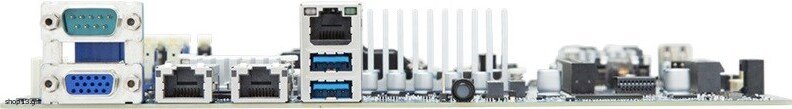

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
COM ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
Port Management LAN: Yes, 1
Expansion slots
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty.
Warranty: warranty 36 months
