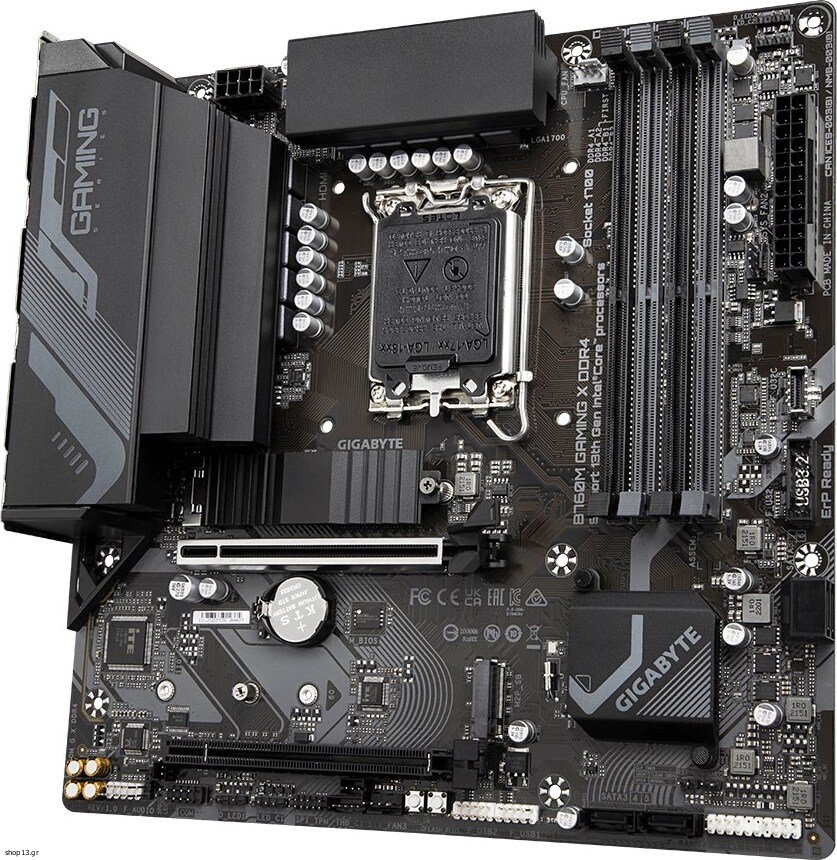

Gigabyte motherboard LGA 1700 micro ATX - (B760M GAMING X DDR4)

Processor
Supported processor sockets: LGA 1700
Compatible processor series: Intel(R) Core(TM) i3, Intel(R) Core(TM) i5, Intel(R) Celeron(R), Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Pentium(R) Gold
Processor socket: LGA 1700
Processor manufacturer: Intel

Graphics
HDCP: Yes
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels

Features
Motherboard form factor: micro ATX
PC health monitoring: Fan, Water cooling, Temperature, Voltage
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11, Windows 10
Power source type: ATX

Memory
Supported memory clock speeds: 4133, 4000, 4800, 4933, 4500, 3400, 3866, 3333, 4300, 4400, 3200 MHz, 2666, 4266, 4600, 2133, 2400, 4700, 2933, 3300, 3000
Memory slots type: DIMM
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Unbuffered memory: Yes
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Supported memory clock speed (max): 4933 MHz

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes

Internal I/O
Thunderbolt headers: 2
TPM connector: Yes
CPU fan connector: Yes
Serial port headers: 1
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
S/PDIF out connector: Yes
RGB LED pin header: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 3
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel connector: Yes
USB 2.0 connectors: 2

BIOS
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7

Storage controllers
RAID levels: 1, 0, 10, 5
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes

Rear panel I/O ports
HDMI ports quantity: 1
Line-in: Yes
HDMI version: 2.0
DisplayPorts quantity: 1
USB 2.0 ports quantity: 5
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Headphone outputs: 1

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1


Warranty: warranty 36 months
