Technical details
Warranty period: 3 year(s)
Processor
Compatible processor series: Intel Core i3 12th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i3 13th Gen, Intel(R) Pentium(R) Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i7 13th Gen, Intel Core i9 14th Gen, Intel Core i9 13th Gen, Intel(R) Celeron(R), Intel Core i3 14th Gen
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
Graphics
DirectX version: 12.0
Parallel processing technology support: Not supported
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels
Features
Audio output channels: 7.1 channels
Product colour: Bronze
Motherboard chipset: Intel B760 Express
Windows operating systems supported: Windows 11, Windows 10
PC health monitoring: Fan, Temperature, Water cooling, Voltage
Motherboard form factor: micro ATX
Power source type: ATX
Motherboard chipset family: Intel
Memory
Supported memory clock speeds: 4800, 4400, 5600, 5200
Memory slots type: DIMM
Supported memory clock speed (max): 5600 MHz
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
ECC ?ompatibility: ECC & Non-ECC
Number of memory slots: 4
Maximum internal memory per slot: 64 GB
Weight & dimensions
Width: 244 mm
Height: 35 mm
Depth: 244 mm
Network
LAN controller: Realtek RTL8111H
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
Internal I/O
Number of chassis fan connectors: 3
CPU fan connector: Yes
Number of RGB LED pin headers: 2
Serial port headers: 1
Number of EPS power connectors (8-pin): 1
Front panel connector: Yes
TPM connector: Yes
S/PDIF out connector: Yes
EPS power connector (8-pin): Yes
Parallel connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Number of CPU fan connectors: 1
Number of SATA III connectors: 4
12V power connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
BIOS
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
Packaging data
Package depth: 268 mm
Package height: 68 mm
Package width: 270 mm
Package weight: 1.21 kg
Packaging content
Batteries included: Yes
Screws included: Yes
Storage controllers
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 5, 0, 10, 1
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes

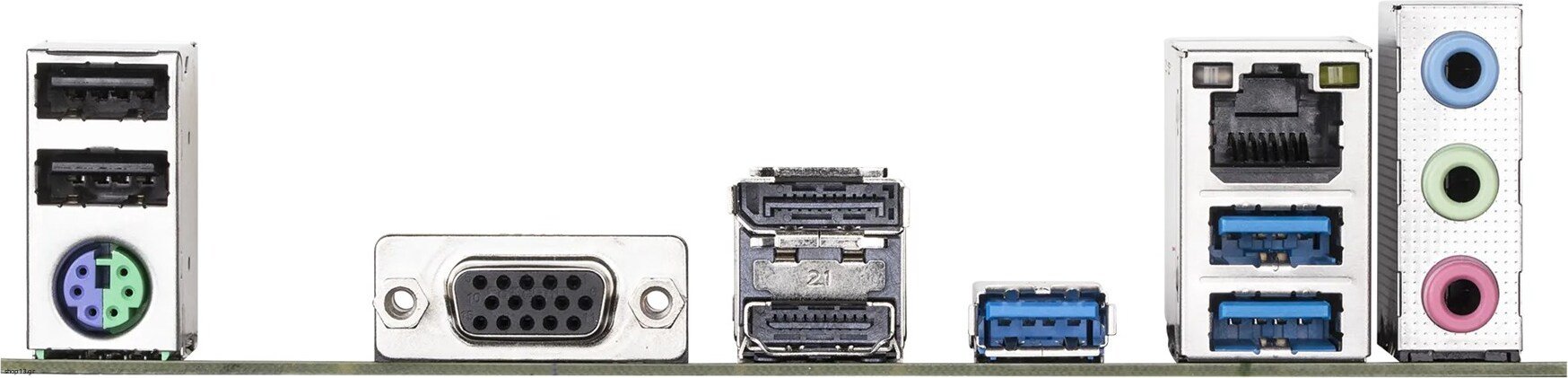

Rear panel I/O ports
Line-in: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
PS/2 ports quantity: 1
HDMI version: 2.1
VGA (D-Sub) ports quantity: 1
Microphone in: Yes
DisplayPorts quantity: 1
DisplayPort version: 1.2
Expansion slots
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 4.x) slots: 1
Battery
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Lithium weight per battery: 0.07 g
Battery weight: 3 g
Other features
Weight: 720 g
Logistics data
Products per shipping (inner) case: 1 pc(s)
Warranty: warranty 36 months
