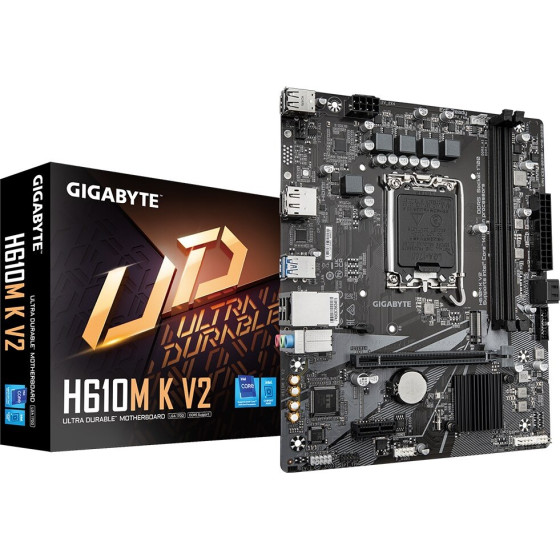

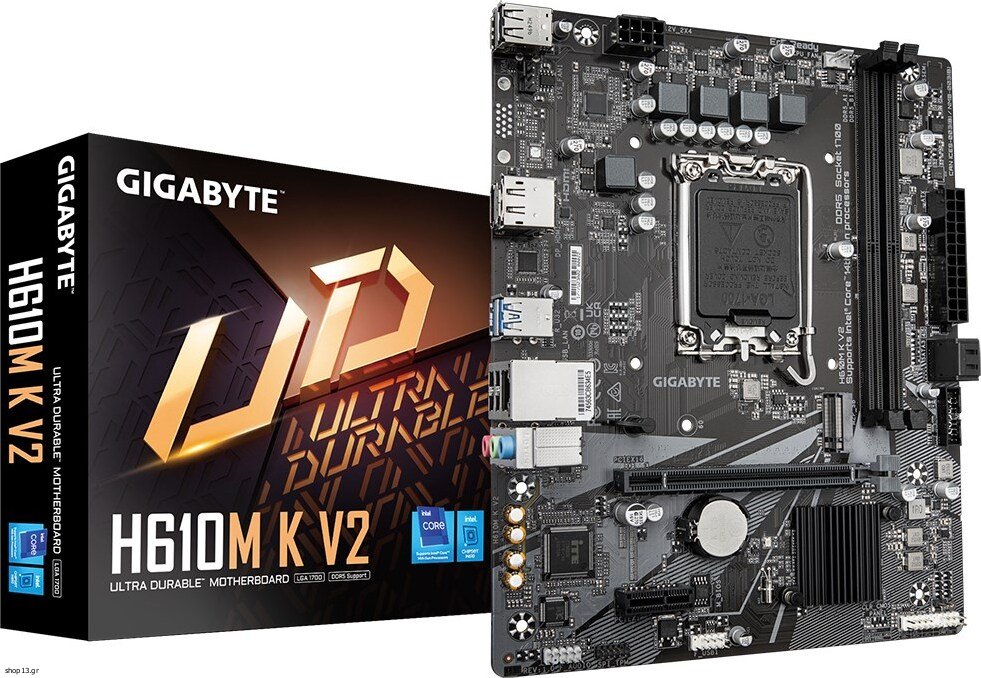

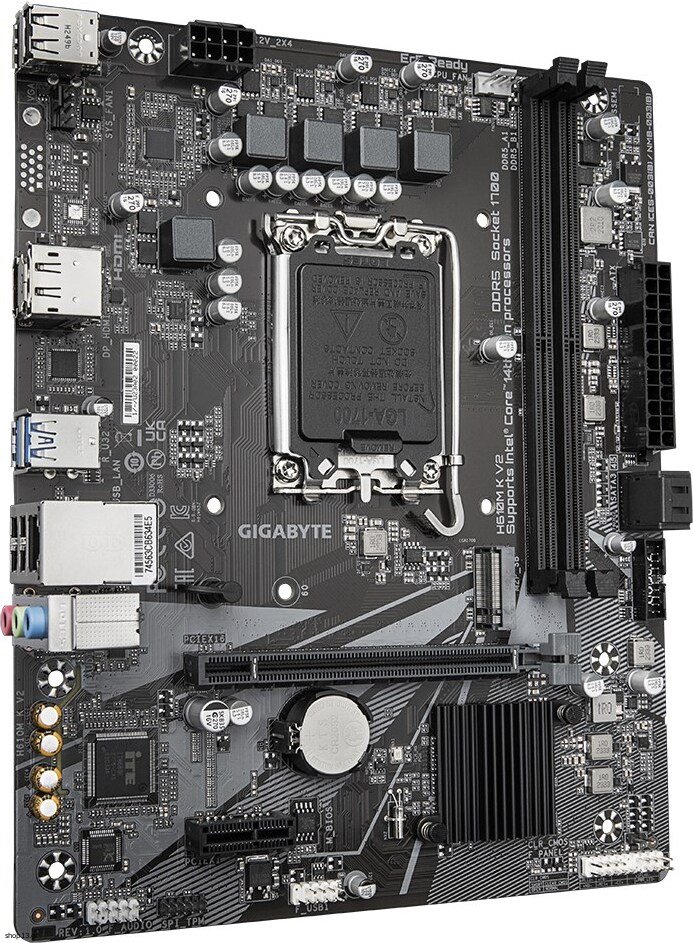

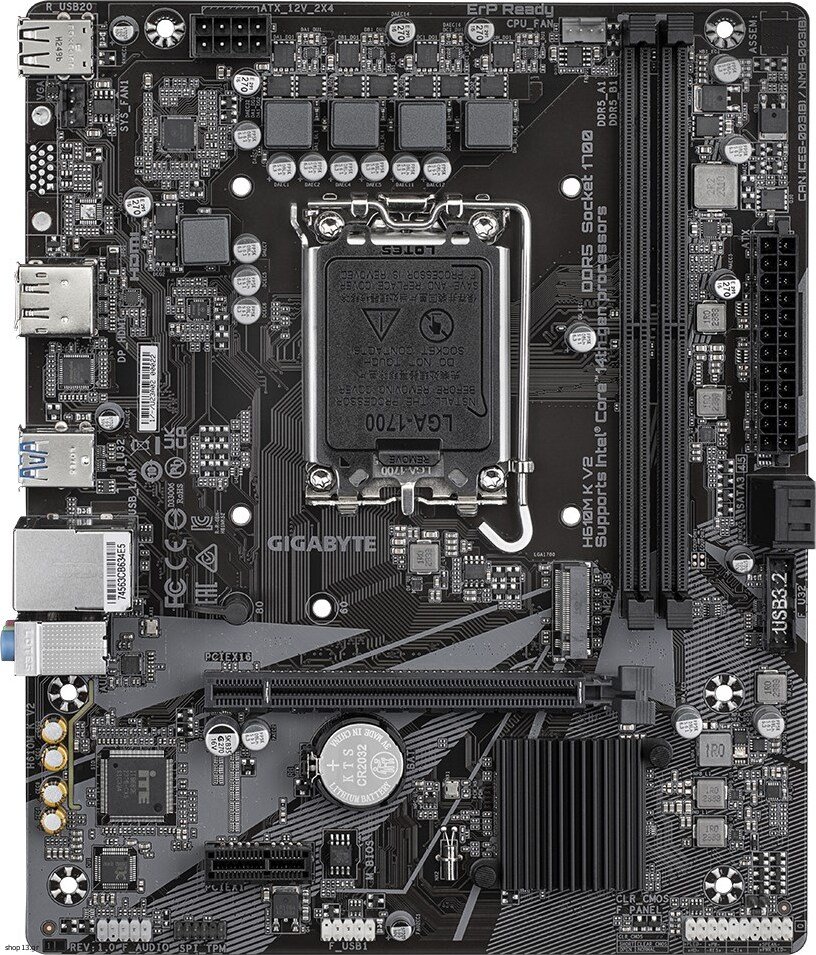

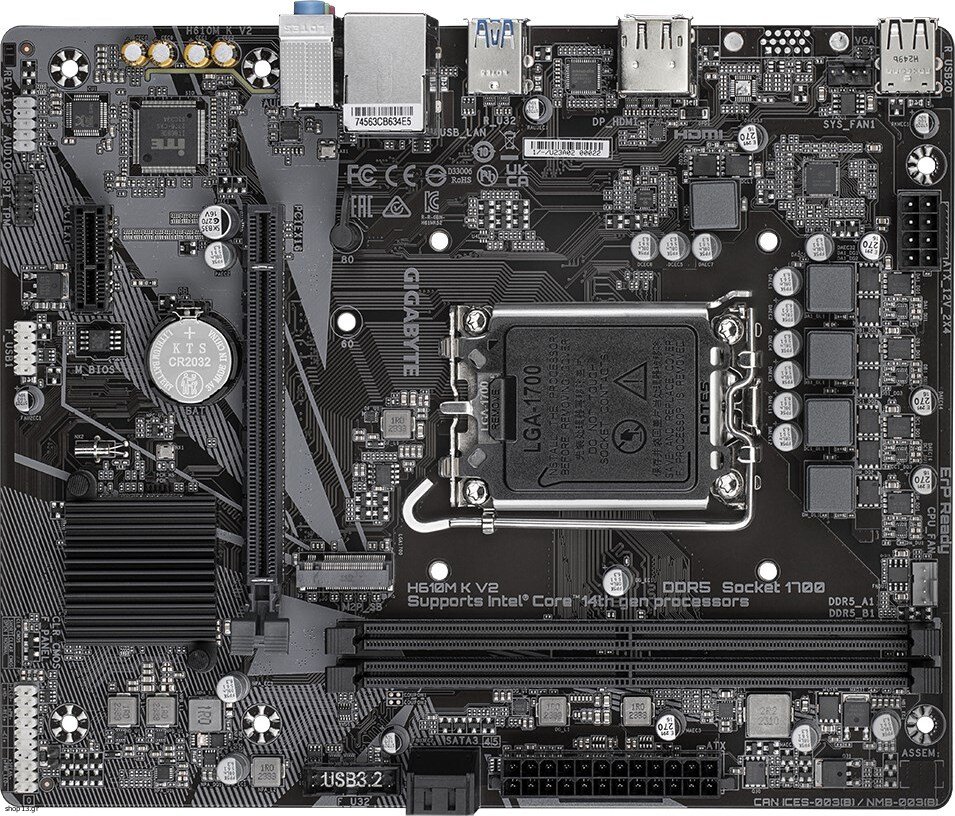

Gigabyte Motherboard - Intel Core 14th CPUs, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1 - (H610M K V2)

Technical details
Warranty period: 3 year(s)

Processor
Supported processor sockets: LGA 1700
Compatible processor series: Intel(R) Pentium(R) Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i3 12th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i7 13th Gen, Intel Core i3 14th Gen, Intel Core i9 13th Gen, Intel Core i3 13th Gen, Intel(R) Celeron(R), Intel Core i9 14th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen
Processor manufacturer: Intel
Processor socket: LGA 1700

Graphics
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported
HDCP: Yes
DirectX version: 12.0

Features
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Motherboard chipset: Intel H610
PC health monitoring: Water cooling, Voltage, Temperature, Fan
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard chipset family: Intel
Cooling type: Passive
Product colour: Dark brown
Audio chip: Realtek ALC897
Power source type: ATX

Memory
Supported memory clock speeds: 5600, 4400, 5200, 4800
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 2
ECC ?ompatibility: ECC & Non-ECC
Supported memory clock speed (max): 5600 MHz
Maximum internal memory per slot: 64 GB

Weight & dimensions
Height: 35 mm
Width: 226 mm
Depth: 185 mm

Network
LAN controller: Realtek RTL8111H
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
EPS power connector (8-pin): Yes
USB 2.0 connectors: 1
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Front panel connector: Yes
TPM connector: Yes
Number of SATA III connectors: 2
Number of EPS power connectors (8-pin): 1
Number of CPU fan connectors: 1

BIOS
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7

Packaging data
Package weight: 723 g
Package width: 265 mm
Package height: 52 mm
Package depth: 235 mm

Packaging content
Screws included: Yes
Batteries included: Yes

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
Number of storage drives supported: 3
Number of HDDs supported: 2

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.2
HDMI version: 2.1
DisplayPorts quantity: 1
HDMI ports quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Microphone in: Yes
Line-in: Yes
Headphone outputs: 1

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 3.0

Battery
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g

Other features
Weight: 650 g

Logistics data
Products per shipping (inner) case: 1 pc(s)


Warranty: warranty 36 months
