Technical details
Warranty period: 3 year(s)
Processor
Compatible processor series: Intel(R) Core(TM) i3, Intel(R) Core(TM) i5, Intel(R) Celeron(R), Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Pentium(R) Gold
Processor socket: LGA 1700
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Maximum internal memory supported by processor: 192 GB
Maximum number of SMP processors: 1
Graphics
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels
DirectX version: 12.0
HDCP: Yes
Features
Motherboard chipset family: Intel
Power source type: ATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard form factor: ATX
Audio chip: Realtek ALC897
PC health monitoring: Voltage, Water cooling, Temperature, Fan
Product colour: Bronze
Motherboard chipset: Intel Z790 Express
Audio output channels: 7.1 channels
Memory
Supported memory clock speed (max): 7600 MHz
Number of memory slots: 4
Memory slots type: DIMM
ECC ?ompatibility: ECC & Non-ECC
Supported memory types: DDR5-SDRAM
Supported memory clock speeds: 6400 MHz, 6800 MHz, 4400, 6000, 4800, 7400, 5200, 6200, 6600, 7000, 5600, 7200, 5800, 5400, 7600
Supported memory module capacities: 16GB, 8GB, 12GB, 1GB, 48GB, 32GB, 2GB, 4GB
Unbuffered memory: Yes
Memory channels: Dual-channel
Maximum internal memory: 192 GB
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm
Network
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
TPM connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
RGB LED pin header: Yes
Front panel connector: Yes
12V power connector: Yes
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
Front panel audio connector: Yes
Number of EATX power connectors: 2
Total number of SATA connectors: 4
EPS power connector (8-pin): Yes
Thunderbolt headers: 2
BIOS
Desktop Management Interface (DMI) version: 2.7
Clear CMOS button: Yes
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Packaging data
Package height: 80 mm
Package depth: 270 mm
Package width: 335 mm
Package weight: 1.8 kg
Packaging content
Antenna included: Yes
Batteries included: Yes
Cables included: SATA
Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID support: Yes
RAID levels: 1, 0, 10, 5
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Supported storage drive types: HDD & SSD

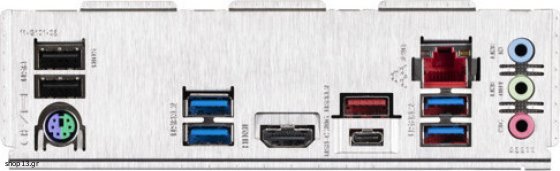

Rear panel I/O ports
Headphone outputs: 1
Microphone in: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2x2 Type-C ports quantity: 1
WiFi-AP antenna jack: 2
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
DisplayPort version: 1.2
DisplayPorts quantity: 1
USB connector type: USB Type-A, USB Type-C
S/PDIF out port: Yes
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 3.x) slots: 2
Battery
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Battery type: CR2032
Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
Warranty: warranty 36 months
