Περιγραφή
Processor
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
Graphics
Parallel processing technology support: Not supported
On-board graphics card: No
HDCP: Yes
DirectX version: 12.0
Maximum resolution: 3840 x 2160 pixels
Features
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Power source type: ATX
PC health monitoring: Water cooling, Temperature, Fan, Voltage
Motherboard chipset: AMD B850
Audio chip: Realtek ALC897
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Product colour: White
Memory
Supported memory clock speed (max): 8200 MHz
Memory slots type: DIMM
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Supported memory clock speeds: 5600, 5200, 6000, 5800, 4800, 4400, 7400, 6200, 7950, 7900, 7200, 7600 MHz, 7800, 8000, 6600, 6400, 7000, 8200, 6800
Unbuffered memory: Yes
Maximum internal memory: 256 GB
ECC ?ompatibility: Non-ECC
Maximum internal memory per slot: 64 GB
Weight & dimensions
Height: 35 mm
Width: 244 mm
Depth: 244 mm
Network
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth version: 5.3
WLAN controller model: Realtek RTL8852CE
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth: Yes
Internal I/O
Peripheral (Molex) power connectors (4-pin): 1
Number of chassis fan connectors: 3
Serial port headers: 1
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
12V power connector: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
USB 3.2 Gen 2x2 connectors: 1
Number of CPU fan connectors: 2
Number of water pump connectors: 2
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 4
BIOS
Clear CMOS jumper: Yes
Clear CMOS button: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Packaging data
Package weight: 1.97 kg
Package height: 68 mm
Package width: 270 mm
Package depth: 268 mm
Packaging content
Antenna included: Yes
Screws included: Yes
Batteries included: Yes
Storage controllers
RAID levels: 0, 10, 1
RAID support: Yes
Number of storage drives supported: 6
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III

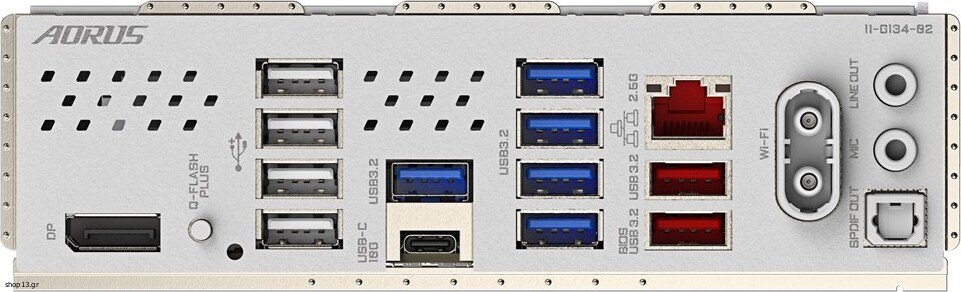

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
WiFi-AP antenna jack: 2
HDMI version: 1.4
Microphone in: Yes
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1
Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 largest key size: 25110
2nd M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
Battery
Battery type: CR2032
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Other features
Weight: 1.77 kg
Warranty: warranty 36 months
