Technical details
Warranty period: 3 year(s)
Processor
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Graphics
Parallel processing technology support: Not supported
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
DirectX version: 12.0
Features
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard form factor: ATX
PC health monitoring: Voltage, Fan, Water cooling, Temperature
Audio output channels: 7.1 channels
Motherboard chipset: AMD B650
Motherboard chipset family: AMD
Audio chip: Realtek ALC897
Product colour: Bronze
Power source type: ATX
Memory
Maximum internal memory per slot: 64 GB
Supported memory clock speed (max): 7600 MHz
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
ECC ?ompatibility: Non-ECC
Supported memory clock speeds: 7000, 4800, 6000, 7600 MHz, 6600, 5200, 5600, 7200, 6800, 6400, 6200
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Weight & dimensions
Depth: 244 mm
Width: 305 mm
Height: 35 mm
Network
WLAN controller model: Realtek RTL8851BE
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Wi-Fi: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Internal I/O
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 4
Number of water pump connectors: 2
Number of CPU fan connectors: 2
Serial port headers: 1
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 3
12V power connector: Yes
RGB LED pin header: Yes
EPS power connector (8-pin): Yes
Front panel connector: Yes
CPU fan connector: Yes
TPM connector: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 3
BIOS
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS button: Yes
Clear CMOS jumper: Yes
Packaging data
Package weight: 2.2 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Packaging content
Screws included: Yes
Batteries included: Yes
Antenna included: Yes
Storage controllers
RAID levels: 1, 10, 0
Number of HDDs supported: 4
Number of storage drives supported: 7
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes

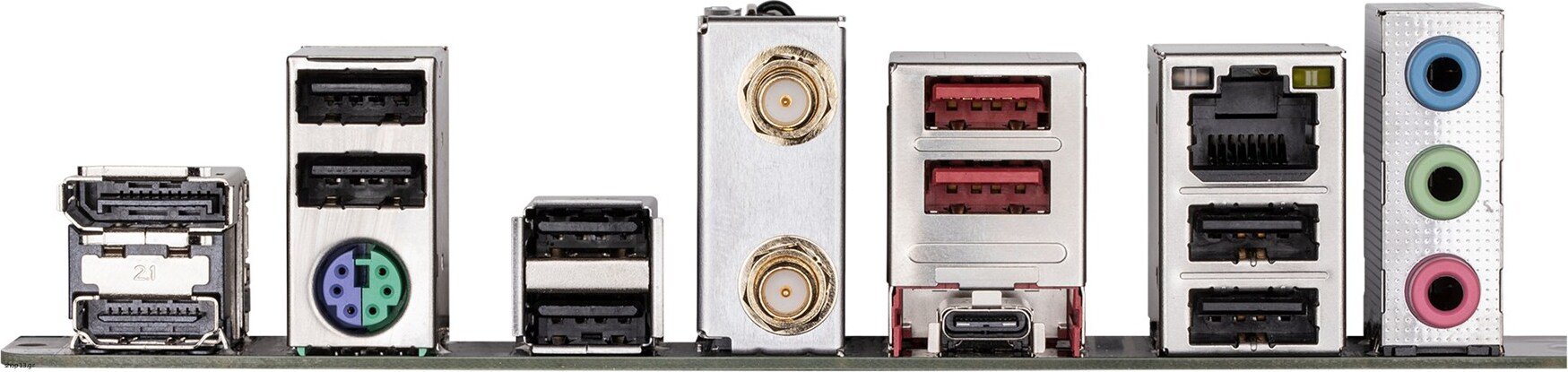

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI version: 2.1
WiFi-AP antenna jack: 2
Headphone outputs: 1
HDMI ports quantity: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1
Expansion slots
2nd M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 25110
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
Battery
Number of battery cells: 1
Battery weight: 3 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Lithium weight per battery: 0.07 g
Other features
Weight: 1.95 kg
Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
Safety warning
Warnings: Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.
Warranty: warranty 36 months
