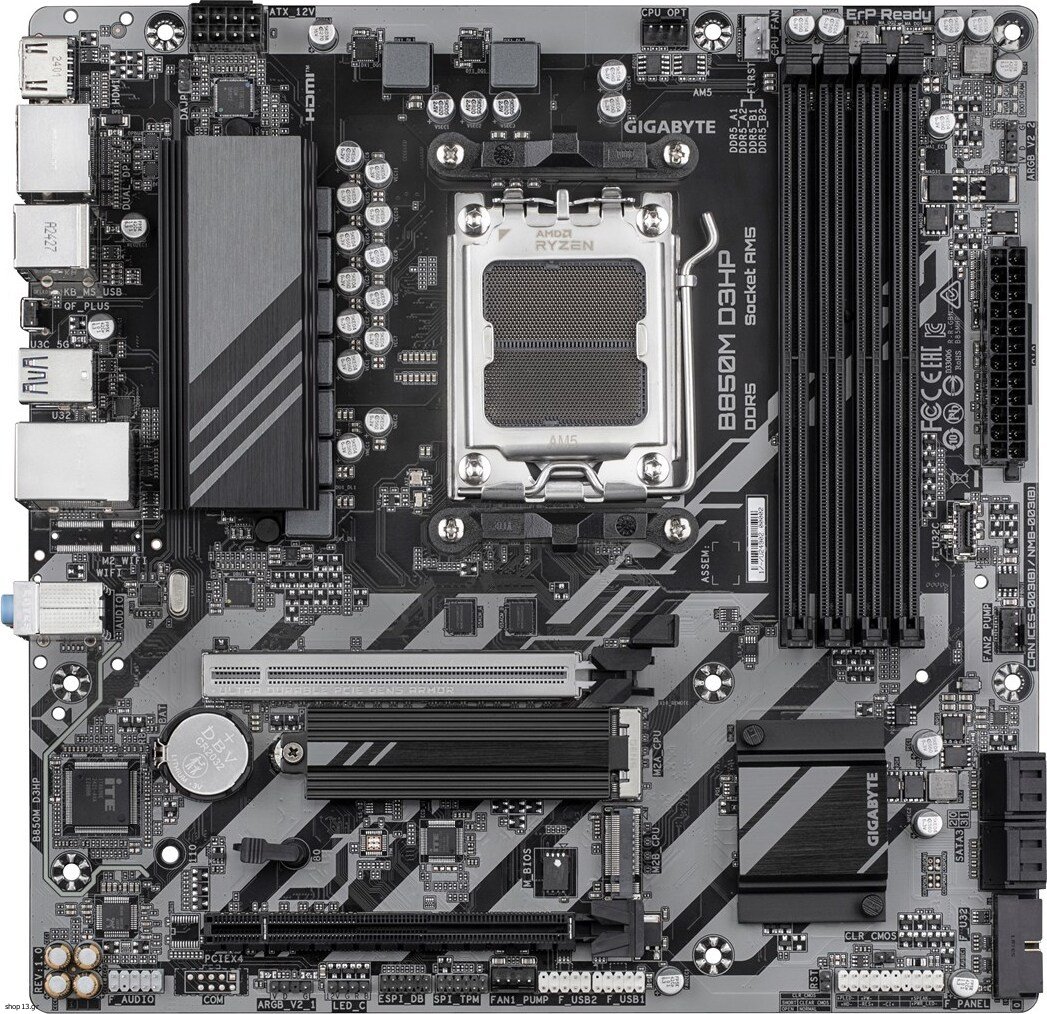

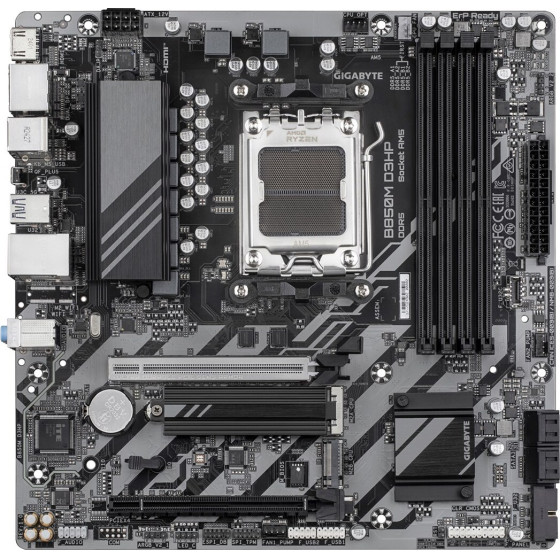

Gigabyte Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 2 - (B850M D3HP)

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5

Graphics
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes

Features
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio output channels: 7.1 channels
Product colour: Bronze
PC health monitoring: Voltage, Temperature, Fan, Water cooling
Motherboard chipset family: AMD
Motherboard chipset: AMD B850
Audio chip: Realtek ALC897
Motherboard form factor: micro ATX

Memory
Memory slots type: DIMM
Supported memory clock speeds: 8000, 6000, 4800, 6400, 5200, 6200, 6666, 7000, 8200, 4400, 6600, 7600, 7800, 6800, 5600 MHz, 7200
Unbuffered memory: Yes
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 8200 MHz
Memory channels: Dual-channel
Number of memory slots: 4
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
ECC ?ompatibility: Non-ECC

Weight & dimensions
Depth: 244 mm
Width: 244 mm
Height: 35 mm

Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
Front panel connector: Yes
Front panel audio connector: Yes
Number of SATA III connectors: 4
RGB LED pin header: Yes
Serial port headers: 1
Peripheral (Molex) power connectors (4-pin): 1
EPS power connector (8-pin): Yes
TPM connector: Yes
Number of chassis fan connectors: 3
12V power connector: Yes
Number of RGB LED pin headers: 4
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 1

BIOS
Clear CMOS button: Yes
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7

Packaging content
Batteries included: Yes
Antenna included: Yes
Screws included: Yes

Storage controllers
RAID support: Yes
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
RAID levels: 0, 1, 10

Rear panel I/O ports
DisplayPorts quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
HDMI ports quantity: 1
DisplayPort version: 2.1
Microphone in: Yes
WiFi-AP antenna jack: 2
HDMI version: 2.1

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
1st M.2 largest key size: 2580

Battery
Number of battery cells: 1
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Lithium weight per battery: 0.07 g

Other features
Weight: 1.3 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China

Safety warning
Warnings: Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.


Warranty: warranty 36 months
