Περιγραφή
Technical details
Warranty period: 3 year(s)
Processor
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Graphics
DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: Not supported
Features
Windows operating systems supported: Windows 11 x64, Windows 10 x64
PC health monitoring: Voltage, Water cooling, Fan, Temperature
Audio output channels: 7.1 channels
Motherboard chipset: AMD B850
Motherboard chipset family: AMD
Audio chip: Realtek ALC897
Power source type: ATX
Product colour: Bronze
Motherboard form factor: micro ATX
Memory
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speeds: 6000, 4800, 4400, 5200, 8000, 6200, 6666, 7000, 8200, 6600, 6800, 6400, 5600 MHz, 7200, 7600, 7800
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Maximum internal memory per slot: 64 GB
Supported memory clock speed (max): 8200 MHz
ECC ?ompatibility: Non-ECC
Weight & dimensions
Width: 244 mm
Height: 35 mm
Depth: 244 mm
Network
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet
Internal I/O
RGB LED pin header: Yes
Total number of SATA connectors: 4
EPS power connector (8-pin): Yes
Front panel connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
TPM connector: Yes
CPU fan connector: Yes
Peripheral (Molex) power connectors (4-pin): 1
12V power connector: Yes
Number of SATA III connectors: 4
Serial port headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
Number of RGB LED pin headers: 4
Number of EPS power connectors (8-pin): 1
Number of CPU fan connectors: 2
BIOS
Clear CMOS button: Yes
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Packaging data
Package width: 270 mm
Package depth: 268 mm
Package height: 68 mm
Package weight: 1.34 kg
Packaging content
Batteries included: Yes
Antenna included: Yes
Screws included: Yes
Storage controllers
Number of storage drives supported: 6
Number of HDDs supported: 4
RAID levels: 10, 1, 0
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III

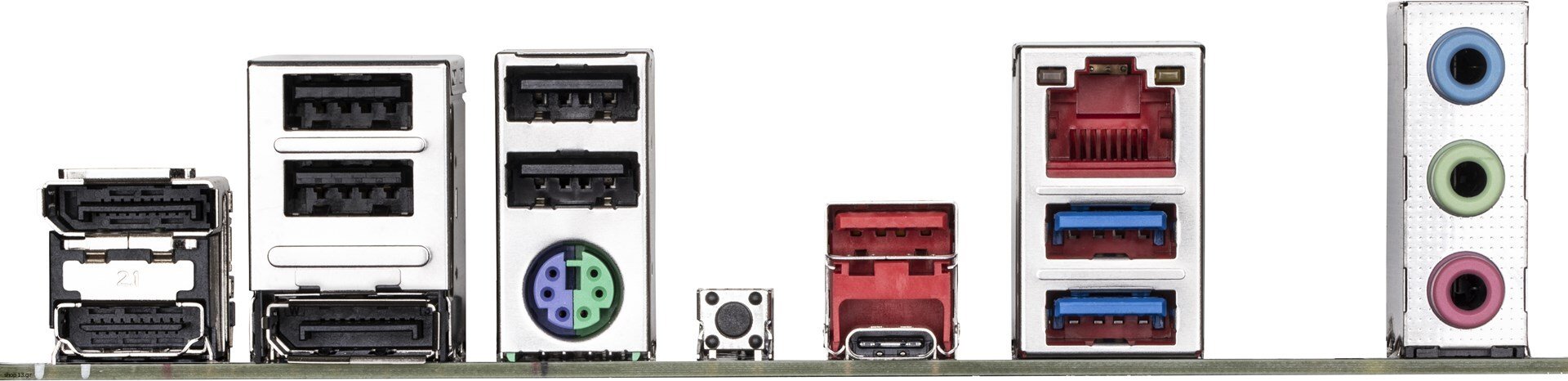

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Headphone outputs: 1
WiFi-AP antenna jack: 2
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
DisplayPorts quantity: 2
DisplayPort version: 2.1
Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 25110
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
Battery
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Battery type: CR2032
Lithium weight per battery: 0.07 g
Other features
Weight: 1.14 kg
Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
Safety warning
Warnings: Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage.
Warranty: warranty 36 months
