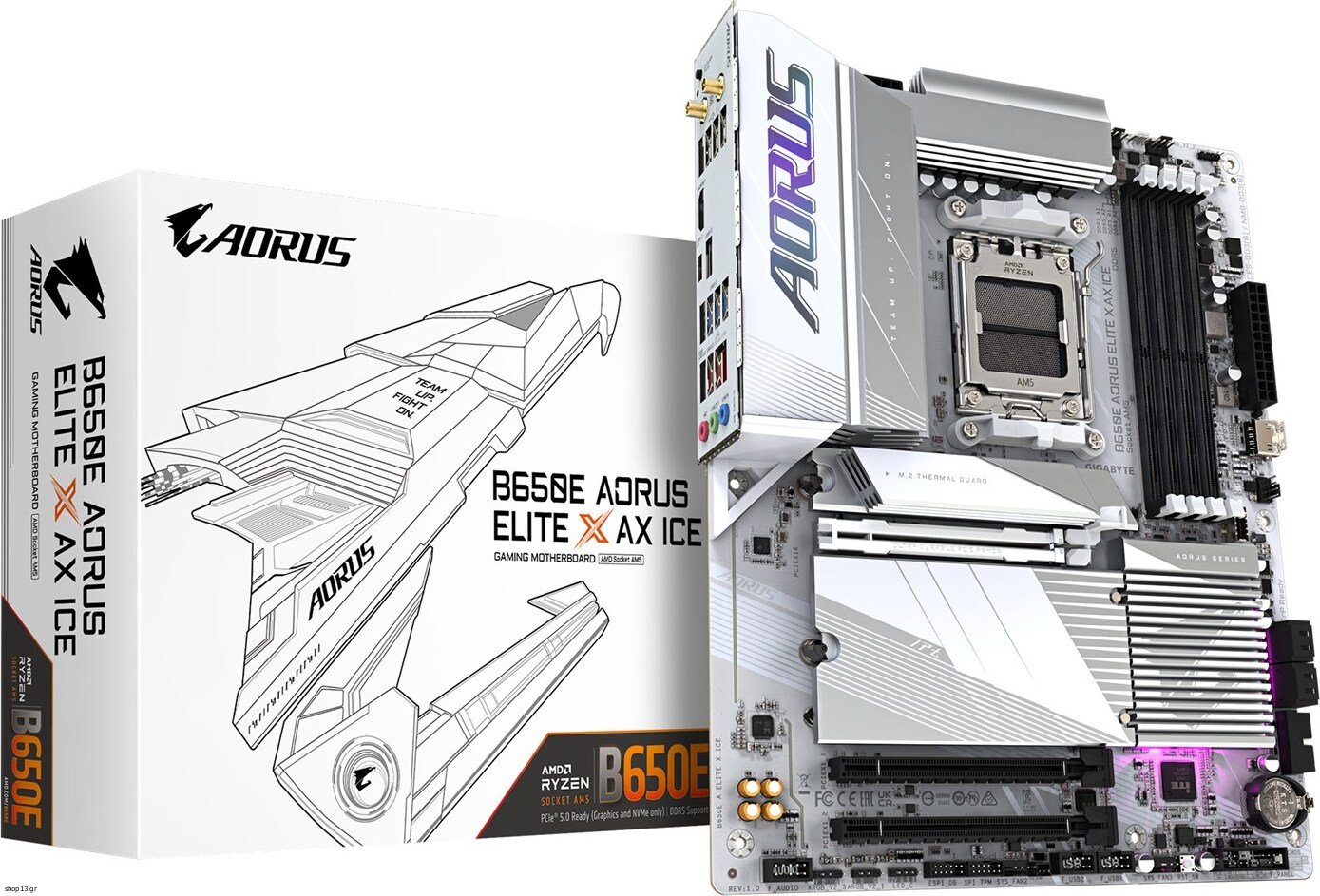

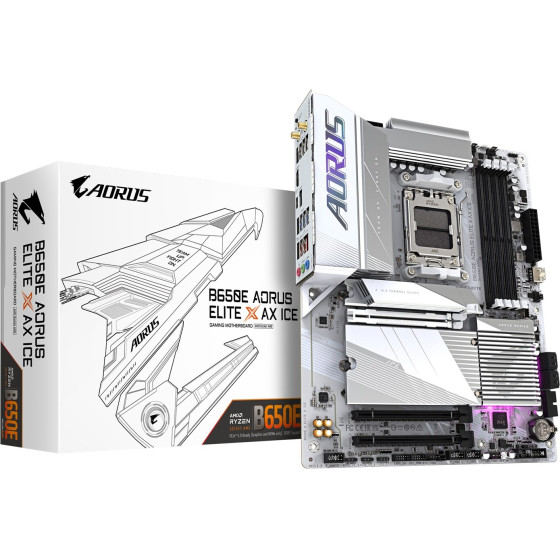

Gigabyte Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2 - (B650E AORUS ELITE X AX ICE)

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor socket: Socket AM5
Processor manufacturer: AMD
Supported processor sockets: Socket AM5

Graphics
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Parallel processing technology support: Not supported

Features
Product colour: White
Motherboard chipset: AMD B650
Audio output channels: 7.1 channels
PC health monitoring: Voltage, Water cooling, Temperature, Fan
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Power source type: ATX
Motherboard chipset family: AMD
Motherboard form factor: ATX
Audio chip: Realtek ALC897

Memory
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Supported memory clock speed (max): 8000 MHz
ECC ?ompatibility: Non-ECC
Maximum internal memory per slot: 64 GB
Supported memory clock speeds: 6000, 4800, 6200, 6666, 7600 MHz, 7800, 8000, 6800, 6400, 4400, 5200, 6600, 5600, 7200, 7000
Maximum internal memory: 256 GB
Unbuffered memory: Yes

Weight & dimensions
Depth: 244 mm
Width: 305 mm
Height: 35 mm

Network
Wi-Fi standards: 802.11b, Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax)
Bluetooth version: 5.3
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
WLAN controller model: Realtek RTL8852CE
Bluetooth: Yes
LAN controller: Realtek RTL8125

Internal I/O
RGB LED pin header: Yes
12V power connector: Yes
TPM connector: Yes
Number of CPU fan connectors: 2
USB 3.2 Gen 2x2 connectors: 1
Number of water pump connectors: 2
Number of RGB LED pin headers: 4
Number of EPS power connectors (8-pin): 1
EPS power connector (8-pin): Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
USB 2.0 connectors: 2
Front panel connector: Yes

BIOS
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI

Packaging data
Package height: 80 mm
Package depth: 270 mm
Package weight: 2.45 kg
Package width: 335 mm

Packaging content
Antenna included: Yes
Batteries included: Yes
Screws included: Yes

Storage controllers
Number of storage drives supported: 7
Number of HDDs supported: 3
RAID support: Yes
RAID levels: 10, 0, 1
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD

Rear panel I/O ports
Headphone outputs: 1
HDMI ports quantity: 1
Line-in: Yes
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
WiFi-AP antenna jack: 2
Microphone in: Yes
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
1st M.2 largest key size: 25110
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 3.x) slots: 2

Battery
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Lithium weight per battery: 0.07 g

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste.


Warranty: warranty 36 months
