Technical details
Warranty period: 3 year(s)
Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor socket: Socket AM5
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Graphics
HDCP version: 2.3
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Features
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Power source type: ATX
Motherboard chipset: AMD B840
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard form factor: micro ATX
Memory
Supported memory clock speeds: 6200, 6666, 4800, 5600, 7200, 5200, 4400, 7950, 7900, 7400, 7600 MHz, 7800, 8000, 6000, 6400, 6600, 6800, 7000, 8200
ECC ?ompatibility: Non-ECC
Memory slots type: DIMM
Unbuffered memory: Yes
Maximum internal memory per slot: 64 GB
Maximum internal memory: 256 GB
Supported memory clock speed (max): 8200 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Number of memory slots: 4
Weight & dimensions
Width: 244 mm
Depth: 174 mm
Network
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Internal I/O
Number of CPU fan connectors: 2
RGB LED pin header: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
EPS power connector (8-pin): Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 3
Number of water pump connectors: 2
USB 2.0 connectors: 2
Number of chassis fan connectors: 2
Front panel connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
TPM connector: Yes
BIOS
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Packaging content
Batteries included: Yes
Screws included: Yes
Storage controllers
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID levels: 10, 1, 0
Number of storage drives supported: 6
RAID support: Yes

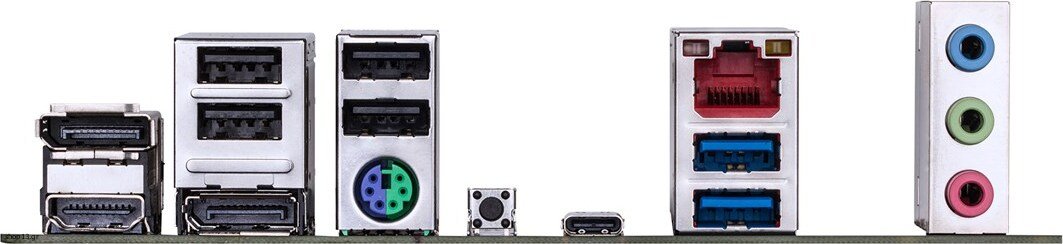

Rear panel I/O ports
PS/2 ports quantity: 1
Q-Flash Plus: Yes
DisplayPorts quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
Number of audio jack connectors: 3
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 4
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 25110
Number of M.2 (M) slots: 2
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2580
PCI Express x16 (Gen 3.x) slots: 1
Battery
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Warranty: warranty 36 months
