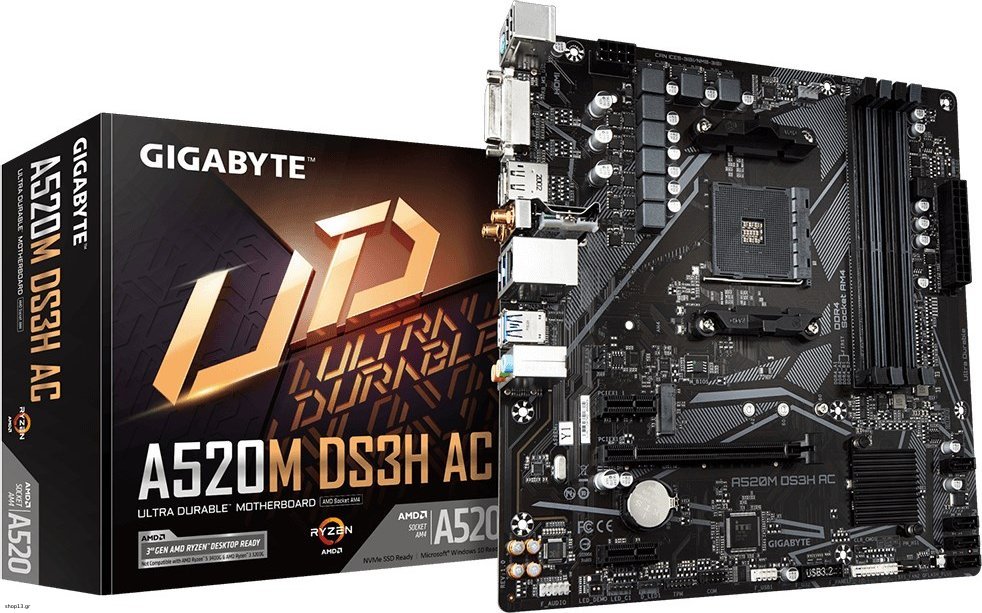

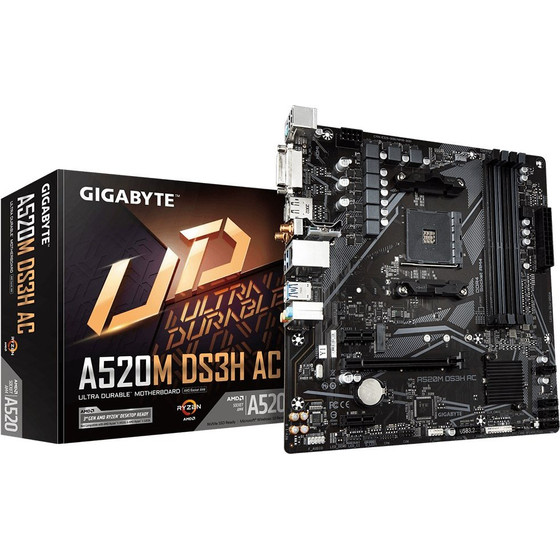

Gigabyte Motherboard - Amd Ryzen 5000 Series CPUs, 5+3 Phases VRM, Up To 4733MHz DDR5 (OC), 1xPcie 3.0 M.2, Gbe LAN, Wifi 5, Usb 3.2 Gen 1 - (A520M DS3H AC)

Technical details
Warranty period: 3 year(s)

Processor
Processor socket: Socket AM4
Supported processor sockets: Socket AM4
Compatible processor series: AMD Ryzen Threadripper 3000 Series, AMD Ryzen 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Processor manufacturer: AMD
Maximum number of SMP processors: 1

Graphics
Number of displays supported: 3
Parallel processing technology support: Not supported
HDCP: Yes
Maximum resolution: 5120 x 2880 pixels

Features
PC health monitoring: Temperature, Voltage, Fan
Power source type: ATX
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Motherboard chipset: AMD A520
Windows operating systems supported: Windows 11, Windows 10 x64

Memory
Unbuffered memory: Yes
Maximum internal memory per slot: 32 GB
Supported memory clock speed (max): 4733 MHz
Supported memory clock speeds: 2400, 3200 MHz, 3400, 3866, 3800, 3333, 2133 MHz, 4000, 2933, 3600, 3300, 4733, 2667, 3733, 4400, 3466
Maximum internal memory: 128 GB
ECC ?ompatibility: ECC & Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel

Weight & dimensions
Width: 244 mm
Height: 35 mm
Depth: 244 mm

Network
Bluetooth: Yes
WLAN controller model: Intel Dual Band Wireless-AC 3168
Ethernet interface type: Gigabit Ethernet
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11g, 802.11b, Wi-Fi 4 (802.11n)
Bluetooth version: 4.2
Ethernet LAN: Yes
Wi-Fi: Yes

Internal I/O
Number of EPS power connectors (8-pin): 1
RGB LED pin header: Yes
USB 2.0 connectors: 1
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of CPU fan connectors: 1
Front panel audio connector: Yes
Number of RGB LED pin headers: 2
Number of chassis fan connectors: 2
CPU fan connector: Yes
Serial port headers: 1
12V power connector: Yes
TPM connector: Yes
Front panel connector: Yes
Total number of SATA connectors: 4
EPS power connector (8-pin): Yes

BIOS
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes

Packaging data
Package weight: 1.21 kg
Package depth: 268 mm
Package width: 270 mm
Package height: 68 mm

Packaging content
Antenna included: Yes
Batteries included: Yes
Screws included: Yes

Storage controllers
RAID levels: 10, 1, 0
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
Number of storage drives supported: 5

Rear panel I/O ports
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Headphone outputs: 1
HDMI ports quantity: 1
HDMI version: 2.1
WiFi-AP antenna jack: 2
Line-in: Yes
DVI-D ports quantity: 1
Microphone in: Yes
PS/2 ports quantity: 1

Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
1st M.2 highest PCI Express generation: 3.0
1st M.2 largest key size: 2280
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1

Battery
Lithium weight per battery: 0.07 g
Battery weight: 3 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1

Other features
Weight: 720 g

Logistics data
Products per shipping (inner) case: 1 pc(s)


Warranty: warranty 36 months
