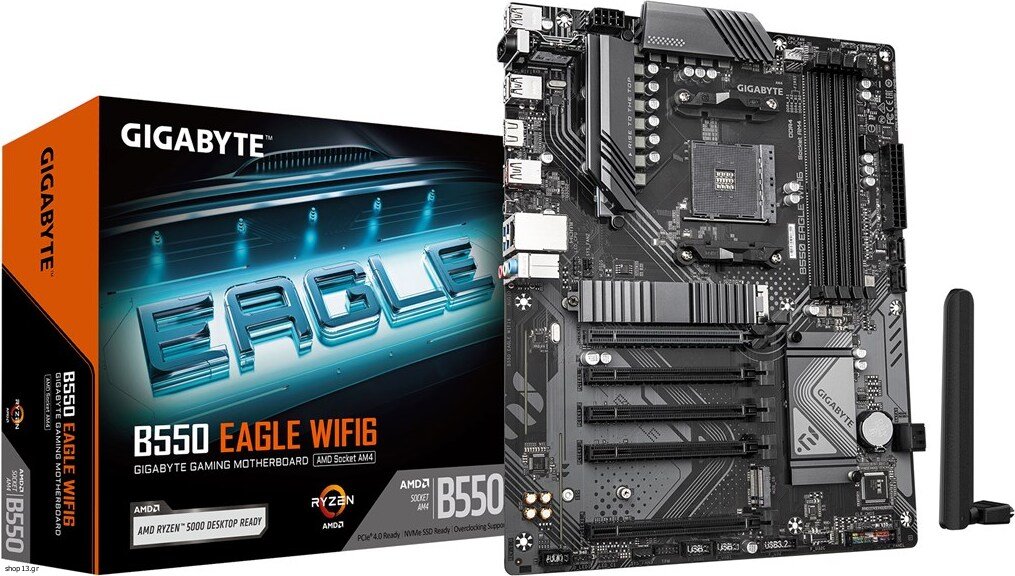

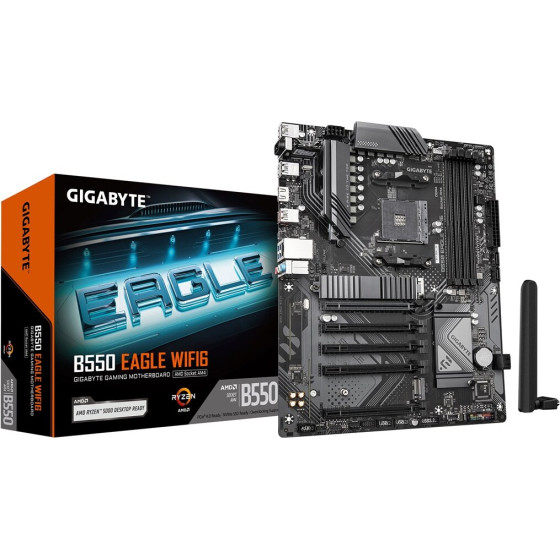

Gigabyte Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, WIFI 6, USB 3.2 Gen 2 - (B550 EAGLE WIFI6)

Technical details
Warranty period: 3 year(s)

Processor
Supported processor sockets: Socket AM4
Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series
Processor manufacturer: AMD
Processor socket: Socket AM4

Graphics
Maximum resolution: 4096 x 2160 pixels
DirectX version: 12.0
Parallel processing technology support: Not supported
HDCP: Yes

Features
Product colour: Dark brown
PC health monitoring: Voltage, Temperature, Fan, Water cooling
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset family: AMD
Motherboard form factor: ATX
Motherboard chipset: AMD B550
Power source type: ATX
Cooling type: Passive
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels

Memory
Supported memory clock speeds: 2933, 2133, 2667, 3200 MHz, 2400
Unbuffered memory: Yes
Memory channels: Dual-channel
ECC ?ompatibility: ECC & Non-ECC
Maximum internal memory per slot: 32 GB
Supported memory clock speed (max): 3200 MHz
Maximum internal memory: 128 GB
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Number of memory slots: 4

Weight & dimensions
Width: 305 mm
Height: 35 mm
Depth: 244 mm

Network
Bluetooth: Yes
LAN controller: Realtek RTL8111H
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g
Bluetooth version: 5.3
Ethernet LAN: Yes
WLAN controller model: Realtek RTL8851BE
Ethernet interface type: Gigabit Ethernet
Wi-Fi: Yes

Internal I/O
Front panel connector: Yes
Number of EPS power connectors (8-pin): 1
Number of chassis fan connectors: 3
Number of water pump connectors: 1
USB 2.0 connectors: 2
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
Number of RGB LED pin headers: 5
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
EPS power connector (8-pin): Yes
Number of CPU fan connectors: 2
TPM connector: Yes
CPU fan connector: Yes
RGB LED pin header: Yes

BIOS
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7

Packaging data
Package width: 335 mm
Package weight: 1.48 kg
Package depth: 270 mm
Package height: 80 mm

Packaging content
Antenna included: Yes
Batteries included: Yes
Screws included: Yes

Storage controllers
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID levels: 1, 0, 10
Number of storage drives supported: 6
Number of HDDs supported: 4

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI version: 2.1
HDMI ports quantity: 1
Headphone outputs: 1
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Microphone in: Yes
WiFi-AP antenna jack: 2

Expansion slots
1st M.2 largest key size: 22110
PCI Express x1 (Gen 3.x) slots: 4
1st M.2 highest PCI Express generation: 4.0
Number of M.2 (M) slots: 2
2nd M.2 highest PCI Express generation: 3.0
2nd M.2 largest key size: 22110
PCI Express x16 (Gen 4.x) slots: 1

Battery
Lithium weight per battery: 0.07 g
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Battery weight: 3 g

Other features
Weight: 1.25 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)


Warranty: warranty 36 months
