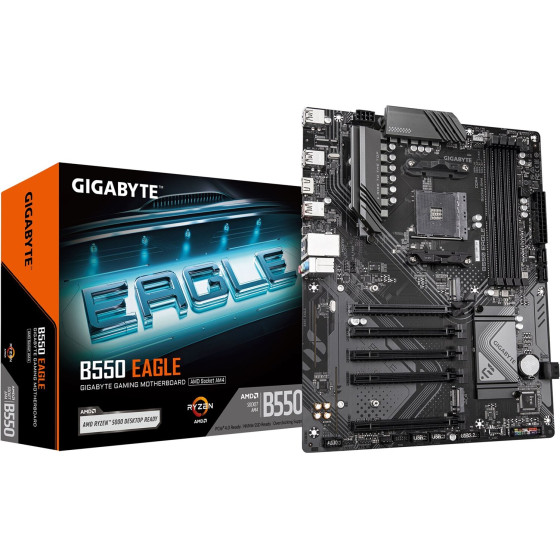

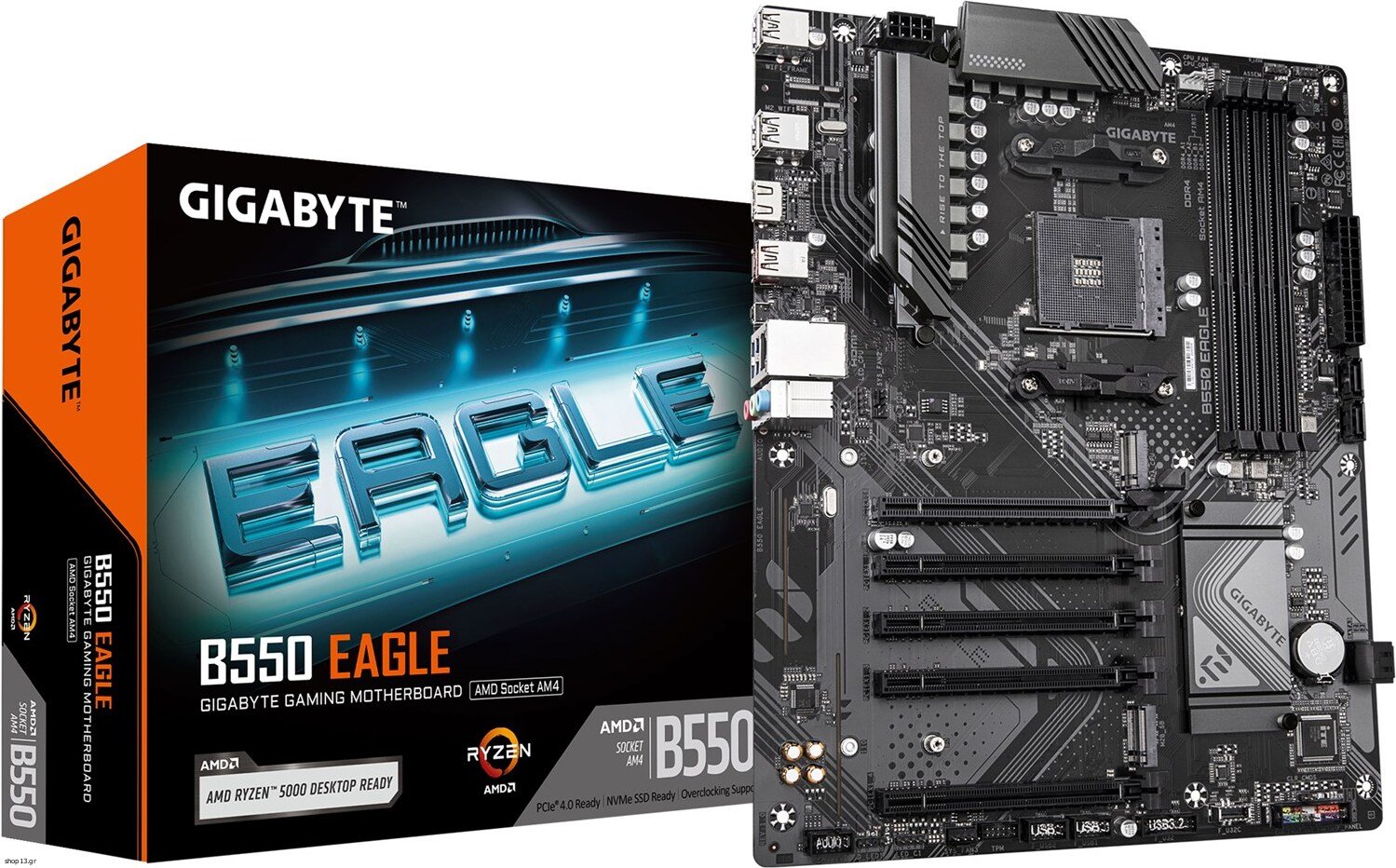

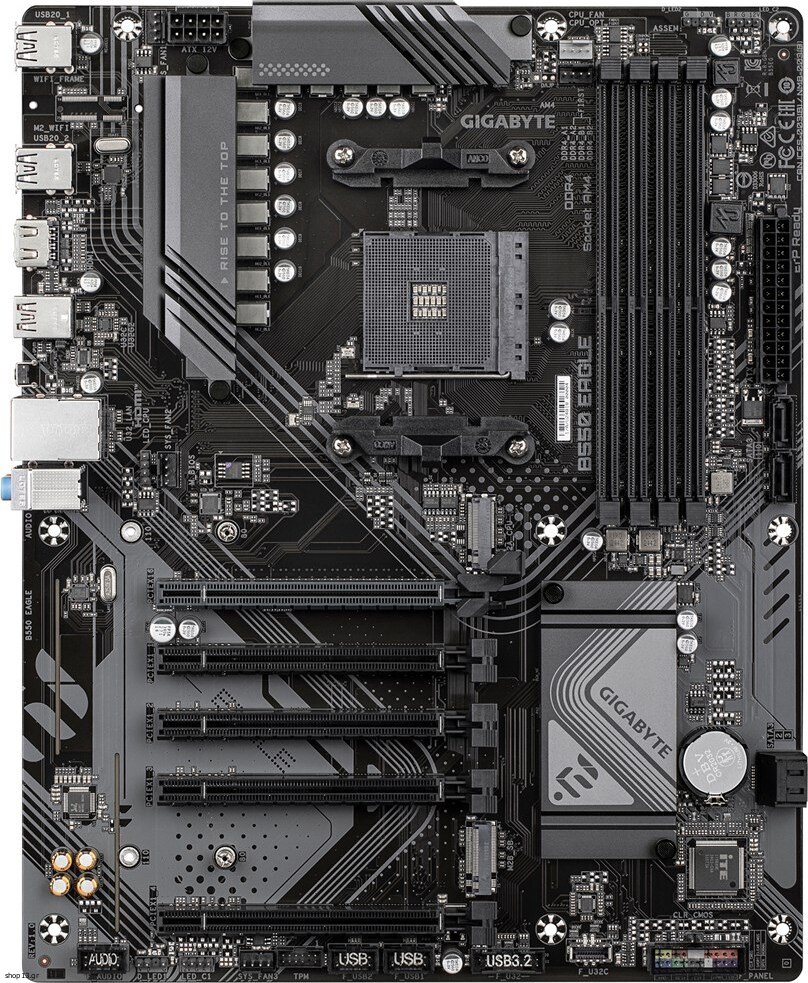

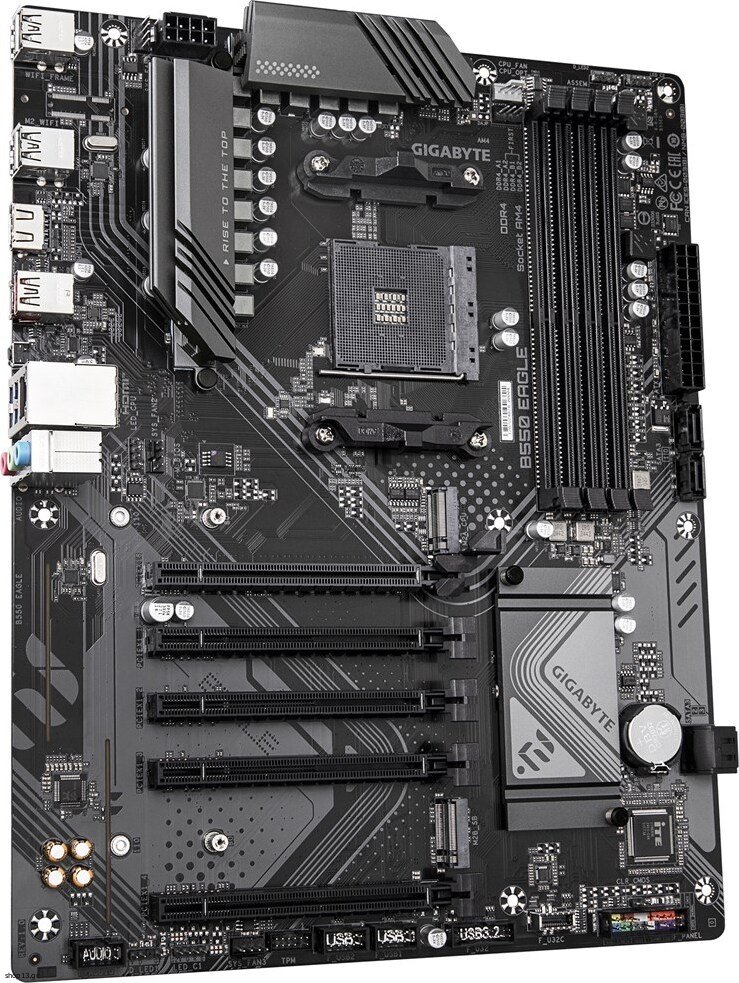

Gigabyte Motherboard - AMD Ryzen 5000 G-Series CPUs, 10+3+1 Phases VRM, up to 3200MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 2 - (B550 EAGLE)

Technical details
Warranty period: 3 year(s)

Processor
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported processor sockets: Socket AM4
Processor socket: Socket AM4

Graphics
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0

Features
Audio output channels: 7.1 channels
PC health monitoring: Voltage, Fan, Water cooling, Temperature
Motherboard form factor: ATX
Motherboard chipset family: AMD
Product colour: Dark brown
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset: AMD B550
Audio chip: Realtek ALC897
Power source type: ATX
Cooling type: Passive

Memory
Maximum internal memory per slot: 32 GB
ECC ?ompatibility: ECC & Non-ECC
Supported memory clock speeds: 2667, 3200 MHz, 2933, 2400, 2133
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory clock speed (max): 3200 MHz
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM

Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm

Network
LAN controller: Realtek RTL8111H
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet

Internal I/O
Number of RGB LED pin headers: 5
Number of EPS power connectors (8-pin): 1
Number of CPU fan connectors: 2
Number of water pump connectors: 1
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
RGB LED pin header: Yes
Front panel connector: Yes
Number of SATA III connectors: 4
Number of chassis fan connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
TPM connector: Yes
Front panel audio connector: Yes
USB 2.0 connectors: 2
EPS power connector (8-pin): Yes

BIOS
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI

Packaging data
Package weight: 1.48 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm

Packaging content
Batteries included: Yes
Screws included: Yes

Storage controllers
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID levels: 1, 0, 10
Number of HDDs supported: 4

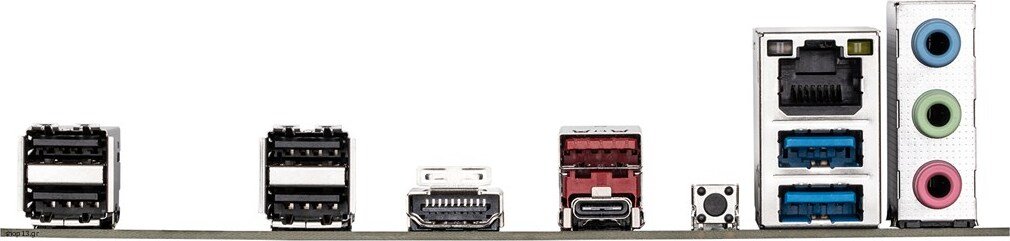

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Expansion slots
2nd M.2 highest PCI Express generation: 3.0
2nd M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110
PCI Express x1 (Gen 3.x) slots: 4
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2

Battery
Lithium weight per battery: 0.07 g
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Number of battery cells: 1

Other features
Weight: 1.25 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)


Warranty: warranty 36 months
