Technical details
Warranty period: 3 year(s)
Processor
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 4000 Series, AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Supported processor sockets: Socket AM4
Processor manufacturer: AMD
Graphics
Maximum resolution: 5120 x 2880 pixels
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0
On-board graphics card: No
Features
PC health monitoring: Temperature, Voltage, Fan
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Motherboard chipset: AMD B550
Product colour: Dark brown
Motherboard form factor: micro ATX
Audio chip: Realtek ALC1220-VB
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Cooling type: Passive
Power source type: ATX
Memory
Supported memory clock speeds: 2133 MHz, 2667, 2933, 3200, 2400
ECC ?ompatibility: ECC & Non-ECC
Unbuffered memory: Yes
Maximum internal memory per slot: 32 GB
Maximum internal memory: 128 GB
Memory slots type: DIMM
Number of memory slots: 4
Memory channels: Dual-channel
Supported memory clock speed (max): 3200 MHz
Supported memory types: DDR4-SDRAM
Weight & dimensions
Width: 244 mm
Depth: 244 mm
Height: 35 mm
Network
Bluetooth: Yes
LAN controller: Realtek RTL8111H
Ethernet interface type: Gigabit Ethernet
Wi-Fi: Yes
Ethernet LAN: Yes
Bluetooth version: 5.3
WLAN controller model: Realtek RTL8851BE
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, 802.11b, Wi-Fi 5 (802.11ac)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Internal I/O
Number of RGB LED pin headers: 5
Number of EPS power connectors (8-pin): 1
Number of CPU fan connectors: 1
Number of SATA III connectors: 4
RGB LED pin header: Yes
Front panel audio connector: Yes
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
EPS power connector (8-pin): Yes
Front panel connector: Yes
TPM connector: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 2
CPU fan connector: Yes
Serial port headers: 1
BIOS
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Packaging data
Package width: 270 mm
Package height: 68 mm
Package depth: 268 mm
Package weight: 1.24 kg
Packaging content
Screws included: Yes
Batteries included: Yes
Antenna included: Yes
Storage controllers
Number of HDDs supported: 4
RAID support: Yes
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III
RAID levels: 1, 10, 0

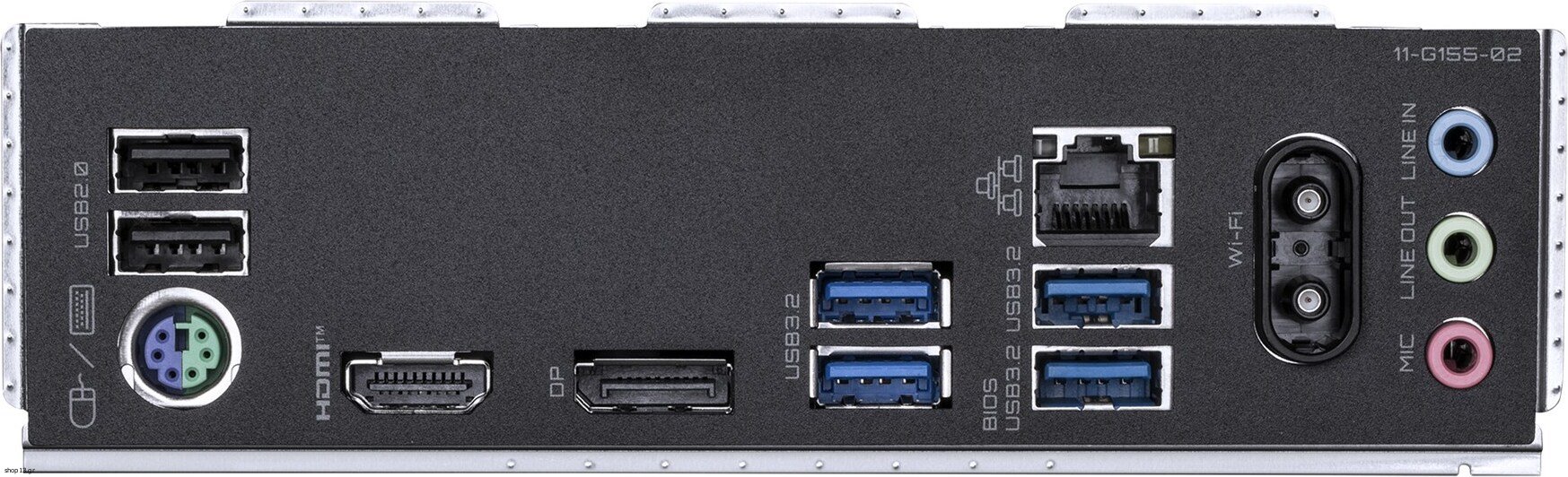

Rear panel I/O ports
DisplayPort version: 1.4
WiFi-AP antenna jack: 2
Line-in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
DisplayPorts quantity: 1
PS/2 ports quantity: 1
HDMI version: 2.1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 2.0 ports quantity: 2
Expansion slots
1st M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 3.0
1st M.2 largest key size: 2280
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 largest key size: 2280
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
Battery
Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Other features
Weight: 1.14 kg
Logistics data
Products per shipping (inner) case: 1 pc(s)
Warranty: warranty 36 months
