Περιγραφή
Processor
Compatible processor series: AMD Ryzen 7000 Series, AMD EPYC 4004 Series, AMD Ryzen 9000 Series, AMD EPYC 4005
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Processor socket: Socket AM5
Maximum number of SMP processors: 1
Graphics
On-board graphics card model: Aspeed AST2600
Features
Motherboard form factor: micro ATX
Component for: Server/workstation
Motherboard chipset: AMD B650E
Motherboard chipset family: AMD
Product colour: Blue
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Memory
Supported memory clock speeds: 3600, 5600, 5200
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
ECC ?ompatibility: ECC & Non-ECC
Memory channels: Dual-channel
Number of memory slots: 4
Weight & dimensions
Depth: 244 mm
Width: 244 mm
Network
Ethernet interface type: 1 Gigabit Ethernet
Ethernet LAN: Yes
Internal I/O
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 5
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
USB 2.0 connectors: 2
Number of SATA III connectors: 4
Packaging data
Package height: 78,5 mm
Package depth: 308,5 mm
Package width: 321 mm
Storage controllers
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 10, 1
Number of HDDs supported: 4
RAID support: Yes
Supported storage drive types: HDD & SSD

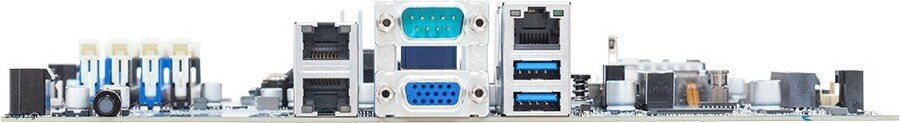

Rear panel I/O ports
Port Management LAN: Yes, 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
Warranty: warranty 36 months
