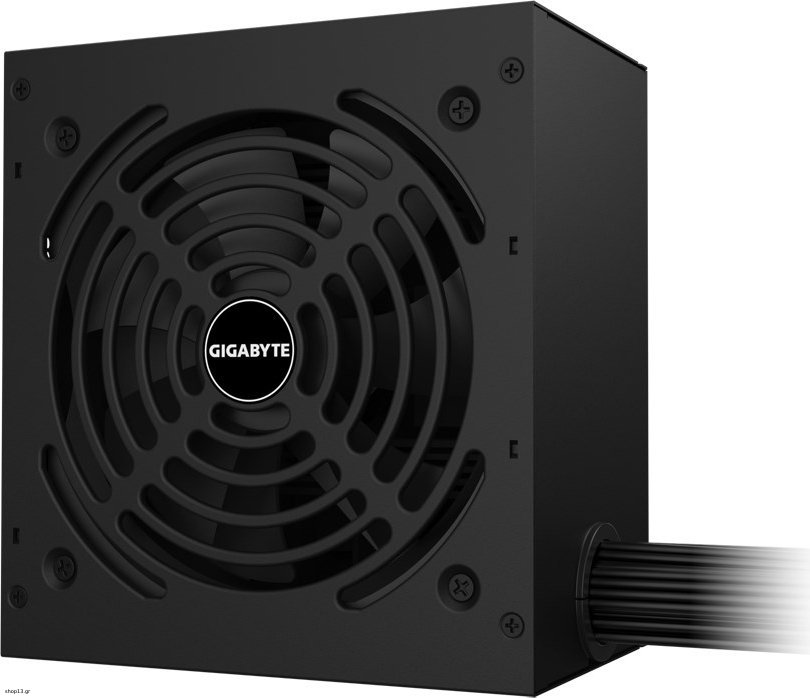

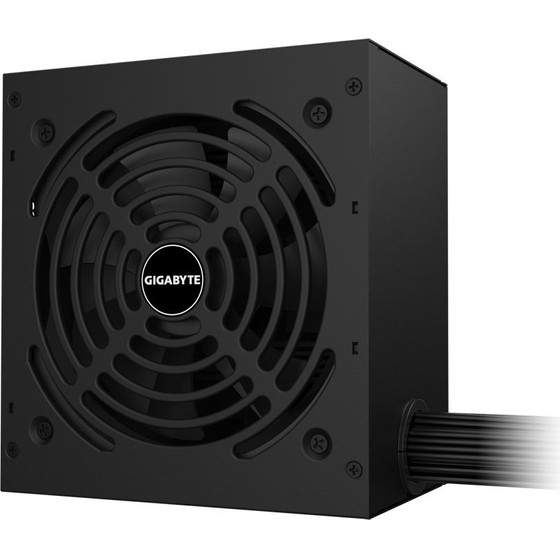

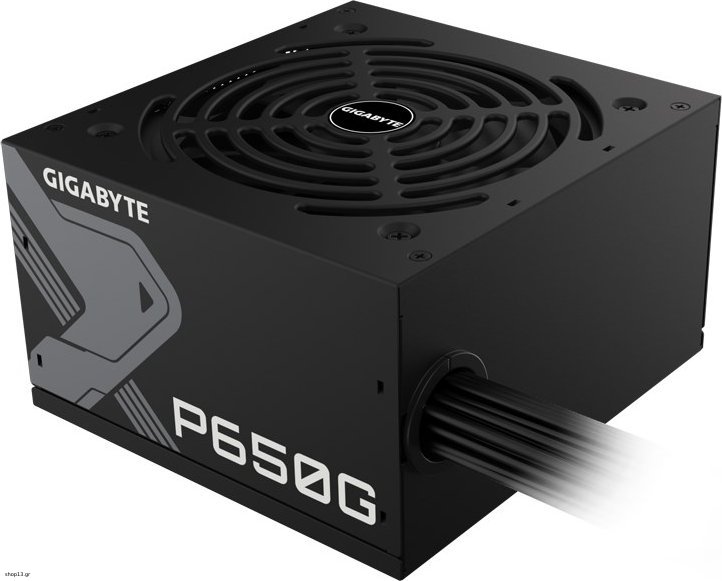

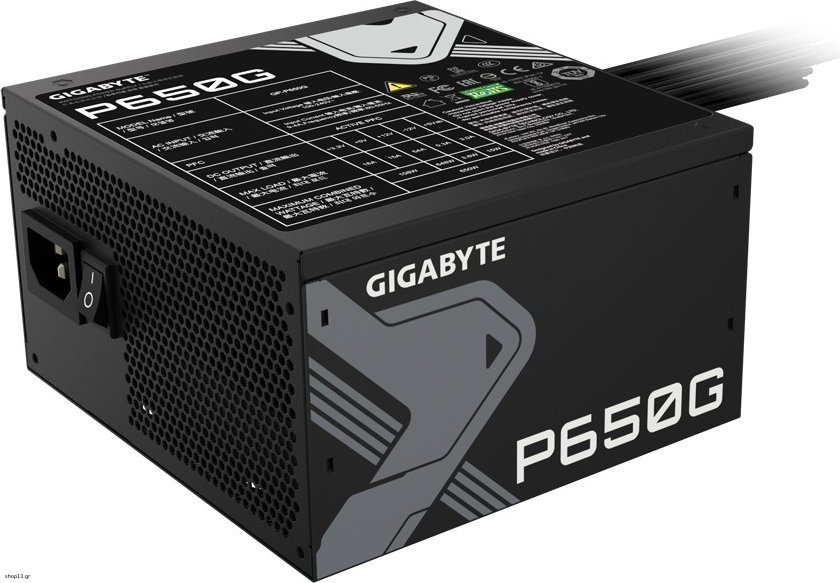

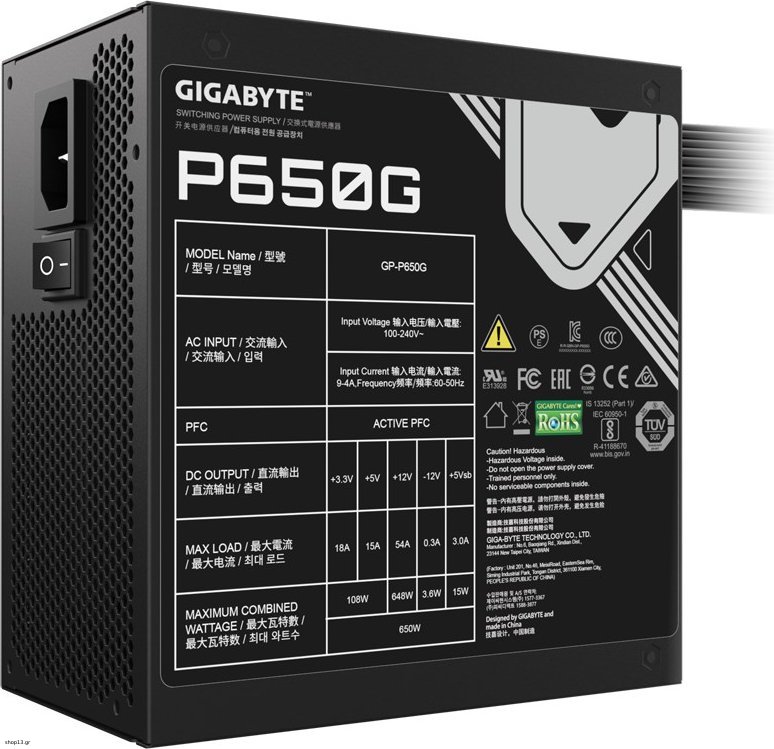

Gigabyte GP-P650G Power Supply Unit 650 W 20+4 Pin Atx Atx Black - (GP-P650G PG5)

Design
Fan location: Top
Product colour: Black
On/off switch: Yes
Fan diameter: 12 cm
Cooling type: Active
Number of fans: 1 fan(s)

Power
Max output current (+12V): 54.17 A
Power Factor Correction (PFC) type: Active
Max output current (+5Vsb): 20 A
Combined power (+3.3V): 120 W
Max output current (-12V): 0.3 A
Max output current (+3.3V): 20 A
Combined power (+5V): 650 W
Combined power (-12V): 3.6 W
Maximum input current (@220V): 6 A
Combined power (+12V): 650 W
Maximum input current (@110V): 12 A
Max output current (+5V): 20 A
Combined power (+5Vsb): 12.5 W
Total power: 650 W
Power protection features: Under voltage, Overcharge, Short circuit, Over power
AC input voltage: 100 - 240 V
Input current: 12 - 6 A

Weight & dimensions
Height: 86 mm
Depth: 150 mm
Width: 140 mm

Performance
Bearing technology: HDB
ATX version: 2.31
Power supply unit (PSU) form factor: ATX
Noise level: 39 dB
Purpose: PC
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h

Packaging data
Package type: Box

Ports & interfaces
Peripheral (Molex) power cable length: 150, 500
Motherboard power cable length: 50 cm
PCI Express power connectors (6+2 pin): 4
Number of SATA power connectors: 6
CPU P4 connector (4-pin): 1
SATA power cable length: 500, 150
CPU power cable length: 60 cm
PCI Express power cable length: 65 cm
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin): 3
Cabling type: Non-Modular
Floppy disk drive connector: Yes


Warranty: warranty 36 months
