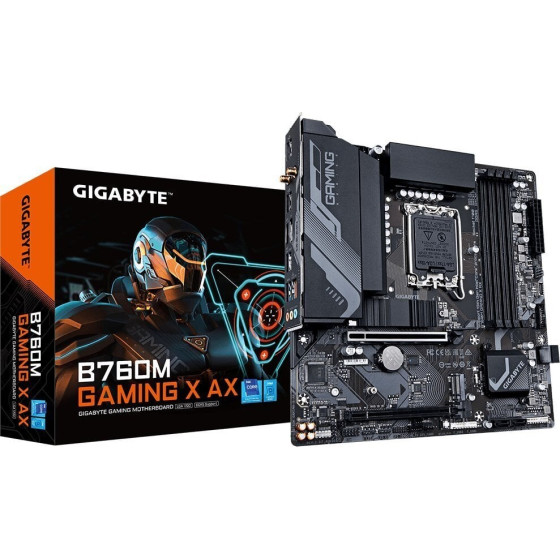

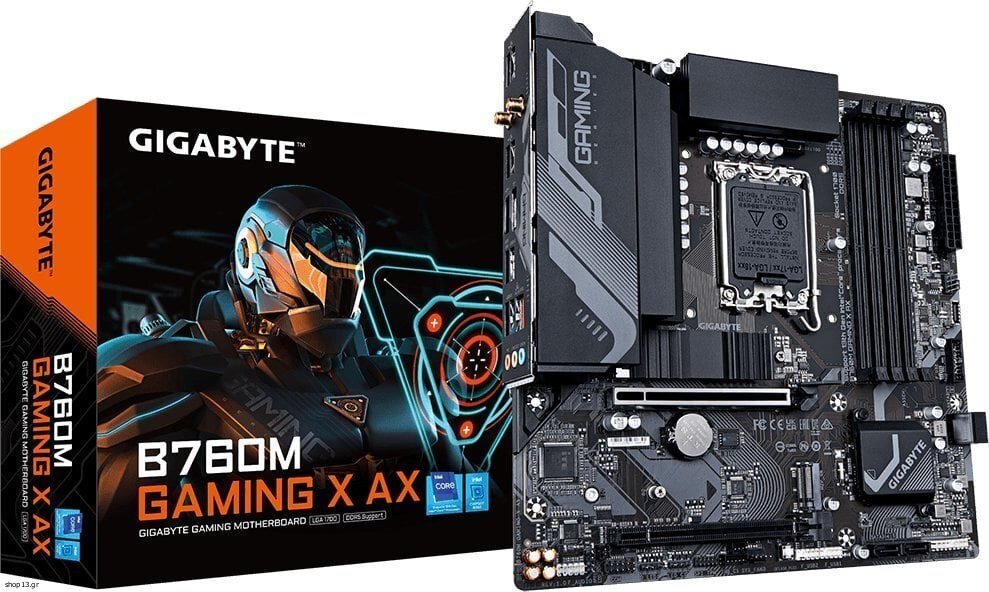

Gigabyte DDR5 motherboard LGA 1700 micro ATX - (B760M GAMING X AX)

Processor
Supported processor sockets: LGA 1700
Compatible processor series: Intel(R) Core(TM) i5, Intel(R) Celeron(R), Intel(R) Core(TM) i7, Intel(R) Core(TM) i9, Intel(R) Pentium(R) Gold, Intel(R) Core(TM) i3
Processor socket: LGA 1700
Processor manufacturer: Intel

Graphics
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Not supported

Features
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
PC health monitoring: Fan, Temperature, Water cooling, Voltage
Motherboard chipset family: Intel
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11

Memory
Supported memory clock speed (max): 7600 MHz
Supported memory clock speeds: 6000, 7600 MHz, 5200, 5800, 5400, 6600, 4000, 4800, 7400, 5600, 7200, 7000, 6400, 6200, 6800
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel

Weight & dimensions
Depth: 244 mm
Width: 244 mm

Network
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b, 802.11a, Wi-Fi 6 (802.11ax)
Wi-Fi: Yes
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.2
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Internal I/O
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
Number of SATA III connectors: 4
Thunderbolt headers: 2
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Serial port headers: 1
Front panel connector: Yes
CPU fan connector: Yes
RGB LED pin header: Yes
Number of chassis fan connectors: 3
TPM connector: Yes
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes

BIOS
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
BIOS type: UEFI AMI

Storage controllers
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
RAID levels: 1, 0, 5, 10
Number of storage drives supported: 6

Rear panel I/O ports
DisplayPorts quantity: 1
WiFi-AP antenna jack: 2
Ethernet LAN (RJ-45) ports: 1
Line-in: Yes
HDMI ports quantity: 1
HDMI version: 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Microphone in: Yes
USB 2.0 ports quantity: 5

Expansion slots
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1


Warranty: warranty 36 months
