Περιγραφή
Technical details
Warranty period: 3 year(s)
Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Graphics
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
DirectX version: 12.0
Features
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Power source type: ATX
PC health monitoring: Voltage, Water cooling, Fan, Temperature
Audio output channels: 7.1 channels
Motherboard form factor: ATX
Audio chip: Realtek ALC897
Motherboard chipset: AMD B850
Product colour: Bronze
Memory
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Memory channels: Dual-channel
ECC ?ompatibility: Non-ECC
Maximum internal memory per slot: 64 GB
Supported memory clock speed (max): 8200 MHz
Supported memory clock speeds: 6200, 6000, 6800, 7000, 8200, 8000, 7400, 5200, 6400, 6600, 4400, 7950, 7900, 4800, 7600, 7800, 5600 MHz, 7200, 5800
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Weight & dimensions
Depth: 244 mm
Width: 305 mm
Height: 35 mm
Network
Bluetooth version: 5.3
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac), 802.11g, 802.11a, Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN controller model: Realtek RTL8111H
Wi-Fi: Yes
Ethernet interface type: Gigabit Ethernet
Bluetooth: Yes
Internal I/O
Front panel connector: Yes
Front panel audio connector: Yes
Number of chassis fan connectors: 3
Number of CPU fan connectors: 2
CPU fan connector: Yes
Peripheral (Molex) power connectors (4-pin): 1
Number of SATA III connectors: 4
RGB LED pin header: Yes
TPM connector: Yes
12V power connector: Yes
EPS power connector (8-pin): Yes
Total number of SATA connectors: 4
Number of water pump connectors: 2
ATX Power connector (24-pin): Yes
Serial port headers: 1
Number of RGB LED pin headers: 4
Number of EPS power connectors (8-pin): 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 2.0 connectors: 2
BIOS
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS button: Yes
Clear CMOS jumper: Yes
Packaging data
Package weight: 1.76 kg
Package height: 80 mm
Package width: 335 mm
Package depth: 270 mm
Packaging content
Antenna included: Yes
Batteries included: Yes
Screws included: Yes
Storage controllers
RAID levels: 1, 10, 0
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD

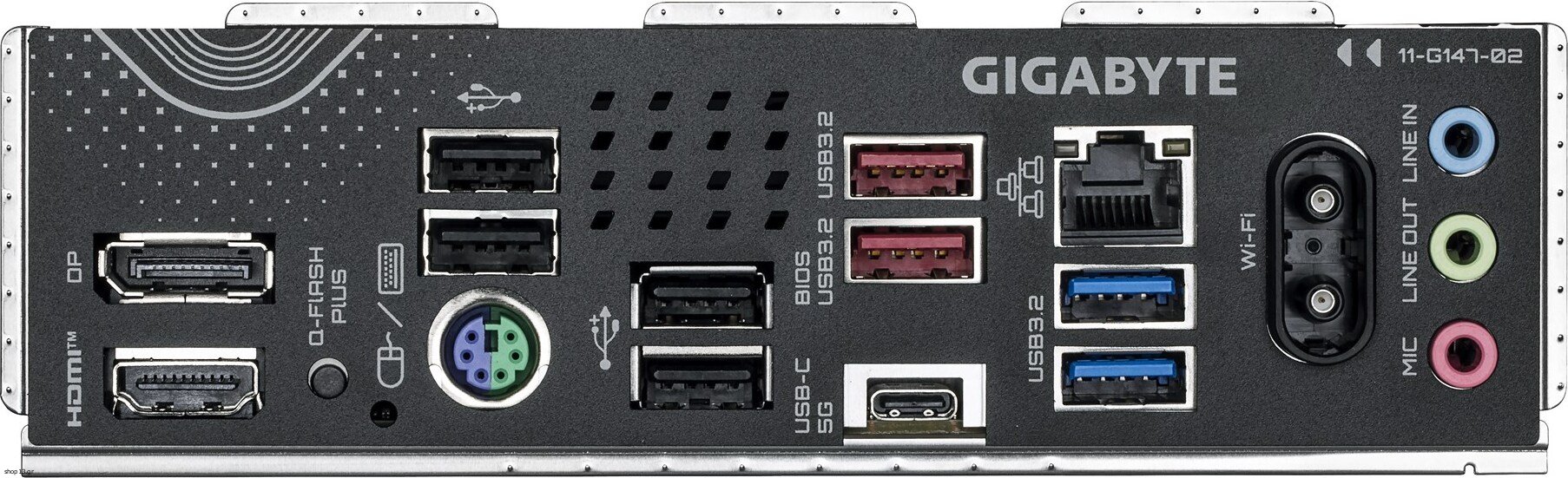

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
WiFi-AP antenna jack: 2
DisplayPort version: 2.1
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPorts quantity: 1
Expansion slots
Number of M.2 (M) slots: 3
1st M.2 largest key size: 25110
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 5.0
3rd M.2 largest key size: 22110
PCI Express x16 (Gen 3.x) slots: 3
2nd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 5.x) slots: 1
Battery
Lithium weight per battery: 0.07 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Battery type: CR2032
Battery weight: 3 g
Other features
Weight: 1.51 kg
Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
Warranty: warranty 36 months
