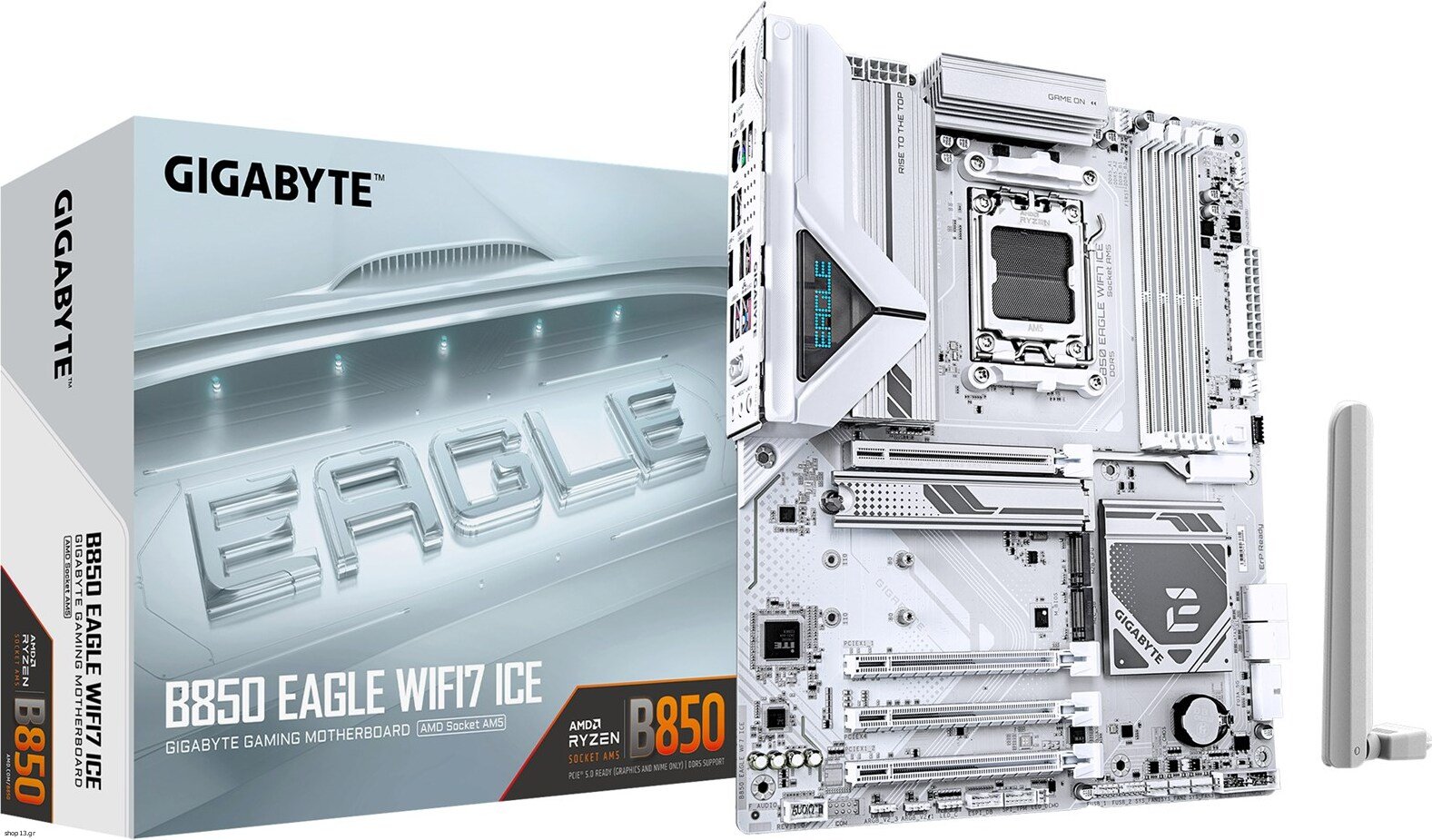

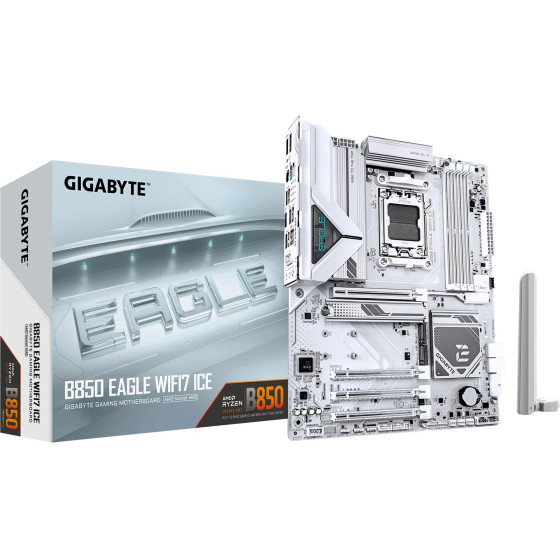

Gigabyte B850 EAGLE WIFI7 ICE Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, WIFI 7, 2.5 GbE LAN, USB 3.2 Gen 2 - (B850 EAGLE WF7 ICE)

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
Parallel processing technology support: Not supported
HDCP: Yes
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels

Features
PC health monitoring: Fan, Water cooling, Temperature, Voltage
Motherboard form factor: ATX
Power source type: ATX
Motherboard chipset family: AMD
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Motherboard chipset: AMD B850
Product colour: White
Cooling type: Passive
Windows operating systems supported: Windows 11 x64

Memory
Supported memory clock speeds: 6000, 4800, 8000, 4400, 7950, 7900, 7600 MHz, 7800, 6400, 7400, 5600, 7200, 6200, 5200, 7000, 8200, 6600, 5800, 6800
Unbuffered memory: Yes
Maximum internal memory: 256 GB
ECC ?ompatibility: Non-ECC
Maximum internal memory per slot: 64 GB
Supported memory clock speed (max): 8200 MHz
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Memory channels: Dual-channel

Weight & dimensions
Depth: 244 mm
Height: 35 mm
Width: 305 mm

Network
LAN controller: Realtek RTL8125
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, 802.11a, Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.4
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
WLAN controller model: Realtek RTL8922AE

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Front panel audio connector: Yes
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
Number of CPU fan connectors: 2
Number of water pump connectors: 2
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 4
Peripheral (Molex) power connectors (4-pin): 1
RGB LED pin header: Yes
12V power connector: Yes
TPM connector: Yes
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 4
CPU fan connector: Yes
Front panel connector: Yes

BIOS
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7

Packaging data
Package weight: 1.89 kg
Package width: 335 mm
Package height: 80 mm
Package depth: 270 mm

Packaging content
Antenna included: Yes
Batteries included: Yes
Screws included: Yes

Storage controllers
RAID levels: 1, 10, 0
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported: 7
Number of HDDs supported: 4

Rear panel I/O ports
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI version: 1.4
HDMI ports quantity: 1
Headphone outputs: 1
Microphone in: Yes
WiFi-AP antenna jack: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
PS/2 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Line-in: Yes

Expansion slots
PCI Express x16 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 5.0
PCI Express x16 (Gen 4.x) slots: 1

Battery
Lithium weight per battery: 0.07 g
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Number of battery cells: 1

Other features
Weight: 1.69 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)


Warranty: warranty 36 months
