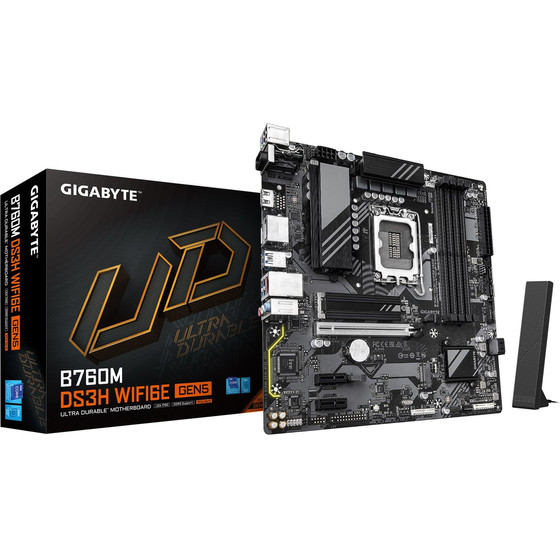

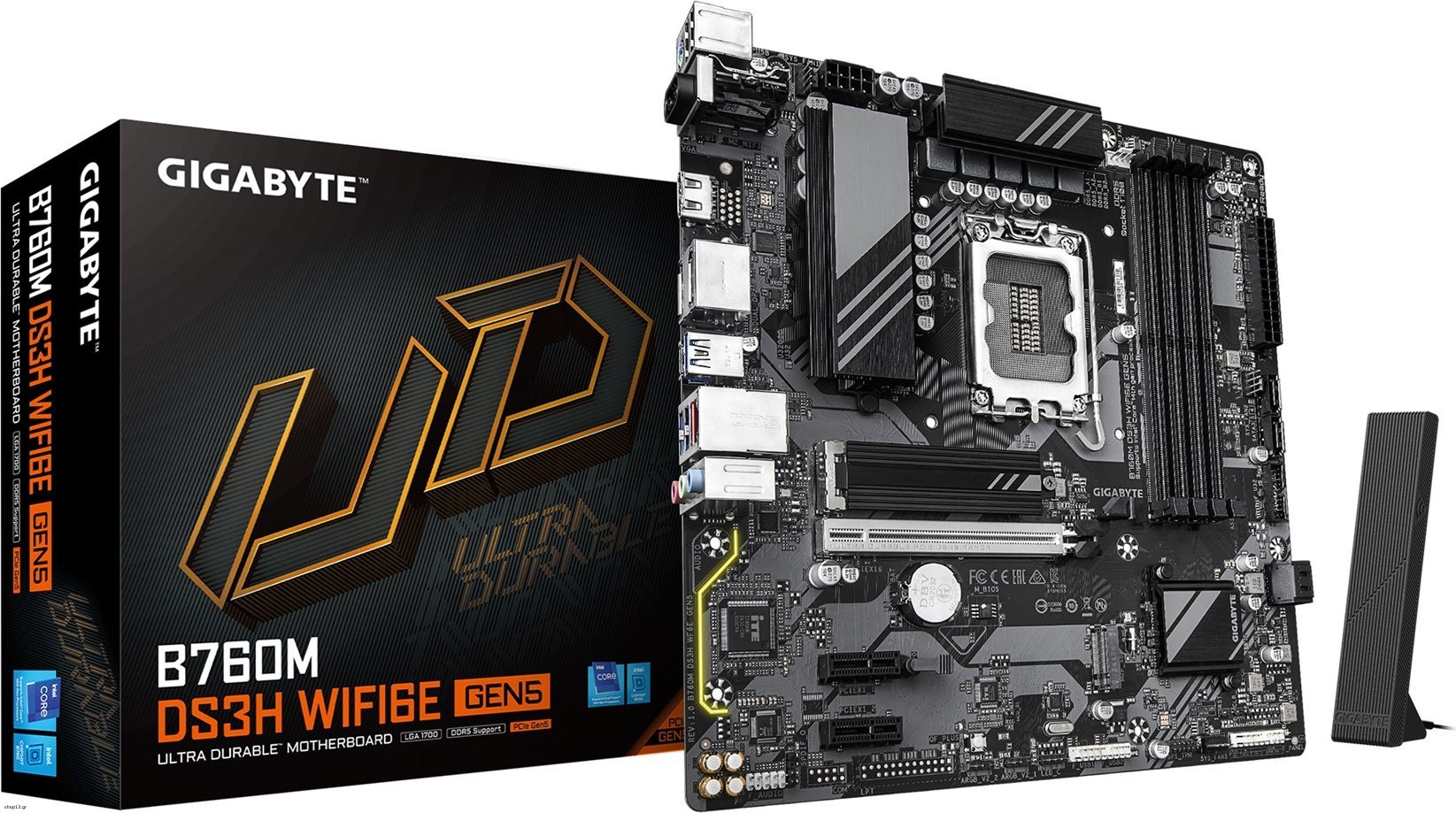

Gigabyte B760M DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, Up To 5600MHz DDR5, 2xPcie 4.0 M.2, Wi-Fi 6E, 2.5GBe LAN, Usb 3.2 Gen2 - (B760M DS3H WF6E GEN5)

Technical details
Warranty period: 3 year(s)

Processor
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Compatible processor series: Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i3 13th Gen, Intel Core i9 13th Gen, Intel(R) Pentium(R) Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i3 12th Gen, Intel Core i3 14th Gen, Intel(R) Celeron(R), Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i7 13th Gen, Intel Core i9 14th Gen
Processor manufacturer: Intel

Graphics
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
DirectX version: 12.0

Features
Cooling type: Passive
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Power source type: ATX
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Motherboard chipset: Intel B760 Express
Product colour: Dark brown
PC health monitoring: Fan, Voltage, Water cooling, Temperature

Memory
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Number of memory slots: 4
ECC ?ompatibility: ECC & Non-ECC
Supported memory clock speed (max): 7600 MHz
Maximum internal memory per slot: 64 GB
Supported memory clock speeds: 5200, 6200, 6400, 4400, 6000, 5800, 7400, 7000, 6600, 6800, 4800, 7600, 5600, 7200
Maximum internal memory: 256 GB
Unbuffered memory: Yes

Weight & dimensions
Depth: 244 mm
Height: 35 mm
Width: 244 mm

Network
Bluetooth version: 5.3
Wi-Fi standards: 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11b
WLAN controller model: Intel Wi-Fi 6E AX210
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Bluetooth: Yes
LAN controller: Realtek RTL8125

Internal I/O
TPM connector: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 3
12V power connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
USB 2.0 connectors: 2
Number of SATA III connectors: 4
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
RGB LED pin header: Yes
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 3
S/PDIF out connector: Yes

BIOS
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7

Packaging data
Package width: 270 mm
Package depth: 268 mm
Package weight: 1.2 kg
Package height: 68 mm

Packaging content
Antenna included: Yes
Batteries included: Yes
Screws included: Yes

Storage controllers
Number of storage drives supported: 3
RAID levels: 1, 0, 10, 5
RAID support: Yes
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

Rear panel I/O ports
PS/2 ports quantity: 1
Microphone in: Yes
Line-in: Yes
DisplayPorts quantity: 2
DisplayPort version: 1.2
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
HDMI version: 2.1
WiFi-AP antenna jack: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 2.0 ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 2
1st M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280

Battery
Battery weight: 3 g
Battery type: CR2032
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery: 0.07 g

Other features
Weight: 1.1 kg

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China


Warranty: warranty 36 months
