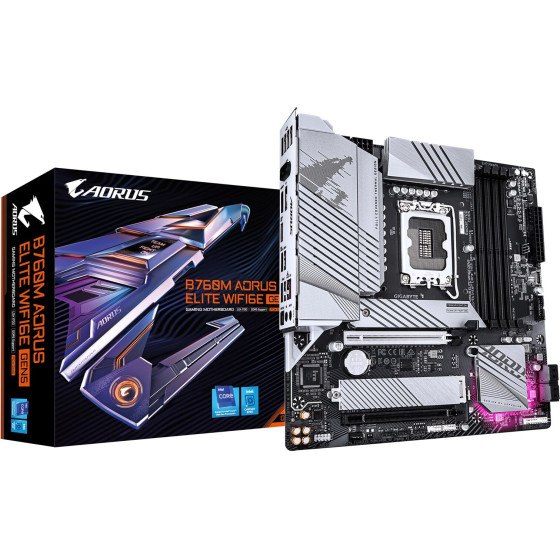

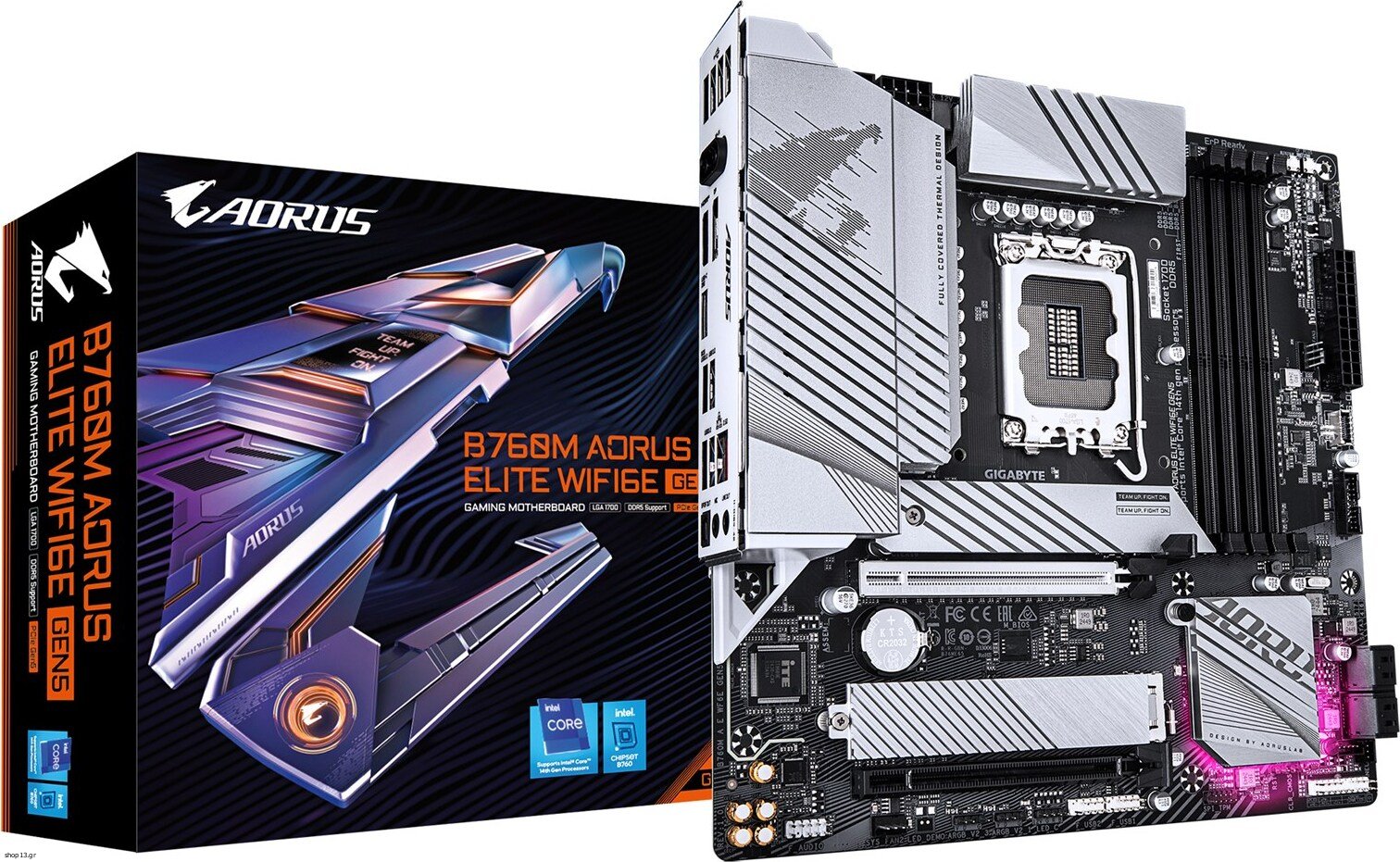

Gigabyte B760M Aorus Elite WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 12+1+1 Phases VRM, Up To 5600MHz DDR5, 2xPcie 4.0 M.2, Wi-Fi 6E, 2.5 Gbe LAN, Usb 3.2 Gen 2x2 - (B760M A E WF6E GEN5)

Technical details
Warranty period: 3 year(s)

Processor
Supported processor sockets: LGA 1700
Compatible processor series: Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i9 14th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i3 12th Gen, Intel Core i9 13th Gen, Intel Core i7 13th Gen, Intel Core i3 14th Gen, Intel(R) Celeron(R), Intel(R) Pentium(R) Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i3 13th Gen
Processor manufacturer: Intel
Processor socket: LGA 1700

Graphics
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes

Features
Product colour: Black
Audio output channels: 7.1 channels
PC health monitoring: Water cooling, Voltage, Temperature, Fan
Motherboard chipset: Intel B760 Express
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Power source type: ATX
Cooling type: Passive
Windows operating systems supported: Windows 11 x64, Windows 10 x64

Memory
Supported memory clock speeds: 6600, 7400, 6000, 6400, 6200, 7000, 5600, 7200, 7600, 7800, 5200, 5800, 5400, 6800, 4000, 4800
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Supported memory clock speed (max): 7800 MHz
ECC ?ompatibility: ECC & Non-ECC
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM

Weight & dimensions
Depth: 244 mm
Height: 35 mm
Width: 244 mm

Network
Bluetooth: Yes
WLAN controller model: Intel Wi-Fi 6E AX210
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi standards: 802.11b, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11n, 802.11 ax, Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), 802.11 ac
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth version: 5.3
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Internal I/O
Number of SATA III connectors: 4
CPU fan connector: Yes
Number of chassis fan connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
EPS power connector (8-pin): Yes
Thunderbolt headers: 2
USB 2.0 connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
12V power connector: Yes
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
TPM connector: Yes
Front panel connector: Yes

BIOS
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes

Packaging data
Package weight: 1.75 kg
Package height: 68 mm
Package depth: 268 mm
Package width: 270 mm

Packaging content
Antenna included: Yes
Batteries included: Yes
Screws included: Yes

Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 0, 10, 1, 5
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Number of storage drives supported: 6
Number of HDDs supported: 4

Rear panel I/O ports
S/PDIF out port: Yes
DisplayPort version: 1.2
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
WiFi-AP antenna jack: 2
Line-in: Yes
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280

Battery
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Other features
Weight: 1.33 kg

Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)


Warranty: warranty 36 months
