Περιγραφή
Technical details
Warranty period: 3 year(s)
Processor
Processor socket: LGA 1700
Processor manufacturer: Intel
Compatible processor series: Intel Core i7 13th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 14th Gen, Intel(R) Pentium(R) Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i3 13th Gen, Intel Core i9 13th Gen, Intel Core i3 12th Gen, Intel(R) Celeron(R), Intel Core i3 14th Gen
Supported processor sockets: LGA 1700
Graphics
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
Features
Motherboard chipset: Intel B760
PC health monitoring: Fan, Temperature, Water cooling, Voltage
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Dark brown
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Power source type: ATX
Motherboard chipset family: Intel
Cooling type: Passive
Motherboard form factor: ATX
Memory
Supported memory clock speeds: 4000, 4800, 5200, 6200, 7000, 6000, 7400, 7600, 6400 MHz, 5600, 7200, 6600, 5800, 5400, 6800
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Supported memory clock speed (max): 5600 MHz
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
ECC ?ompatibility: ECC & Non-ECC
Maximum internal memory per slot: 64 GB
Memory channels: Dual-channel
Weight & dimensions
Depth: 244 mm
Height: 35 mm
Width: 305 mm
Network
LAN controller: Realtek RTL8125
Bluetooth: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
WLAN controller model: Intel Wi-Fi 6E AX210
Wi-Fi: Yes
Ethernet LAN: Yes
Wi-Fi standards: 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax)
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Internal I/O
S/PDIF out connector: Yes
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 4
Number of EPS power connectors (8-pin): 1
Number of water pump connectors: 2
RGB LED pin header: Yes
12V power connector: Yes
TPM connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
Number of SATA III connectors: 4
Number of chassis fan connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
EPS power connector (8-pin): Yes
USB 2.0 connectors: 4
Front panel connector: Yes
Serial port headers: 1
CPU fan connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
BIOS
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Packaging data
Package width: 335 mm
Package height: 80 mm
Package weight: 1.8 kg
Package depth: 270 mm
Packaging content
Screws included: Yes
Antenna included: Yes
Batteries included: Yes
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Number of HDDs supported: 4
RAID levels: 5, 10, 0, 1
Number of storage drives supported: 7
RAID support: Yes

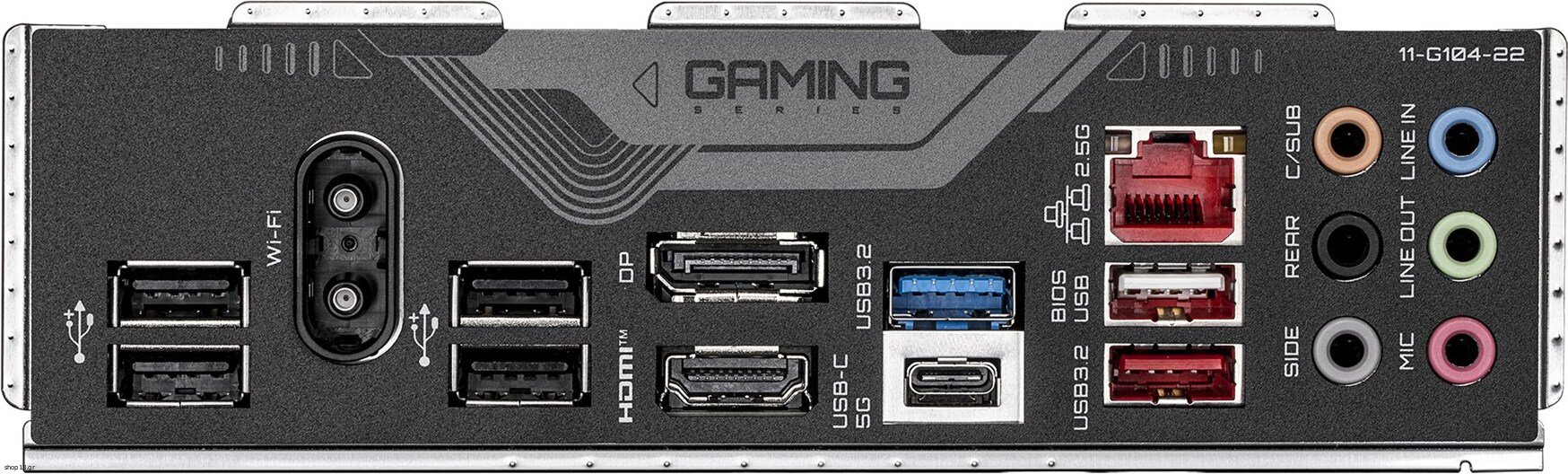

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
WiFi-AP antenna jack: 2
Headphone outputs: 1
Line-in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.2
USB 2.0 ports quantity: 5
Microphone in: Yes
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Expansion slots
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 3.x) slots: 2
Battery
Battery weight: 3 g
Number of battery cells: 1
Lithium weight per battery: 0.07 g
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Other features
Weight: 1.61 kg
Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Warranty: warranty 36 months
