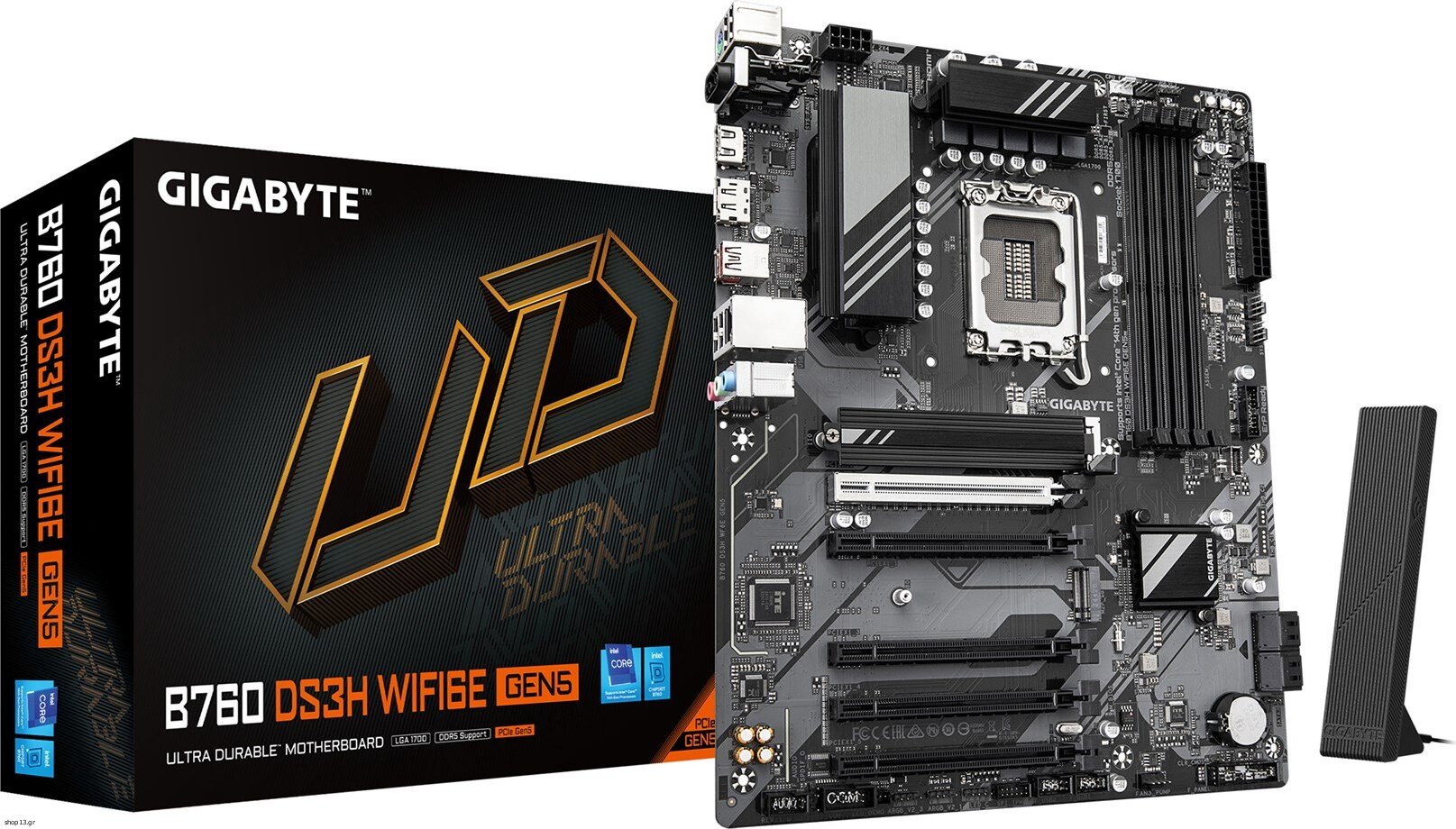

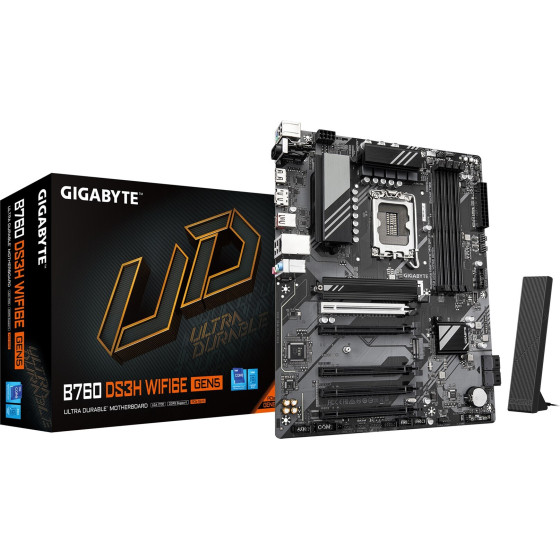

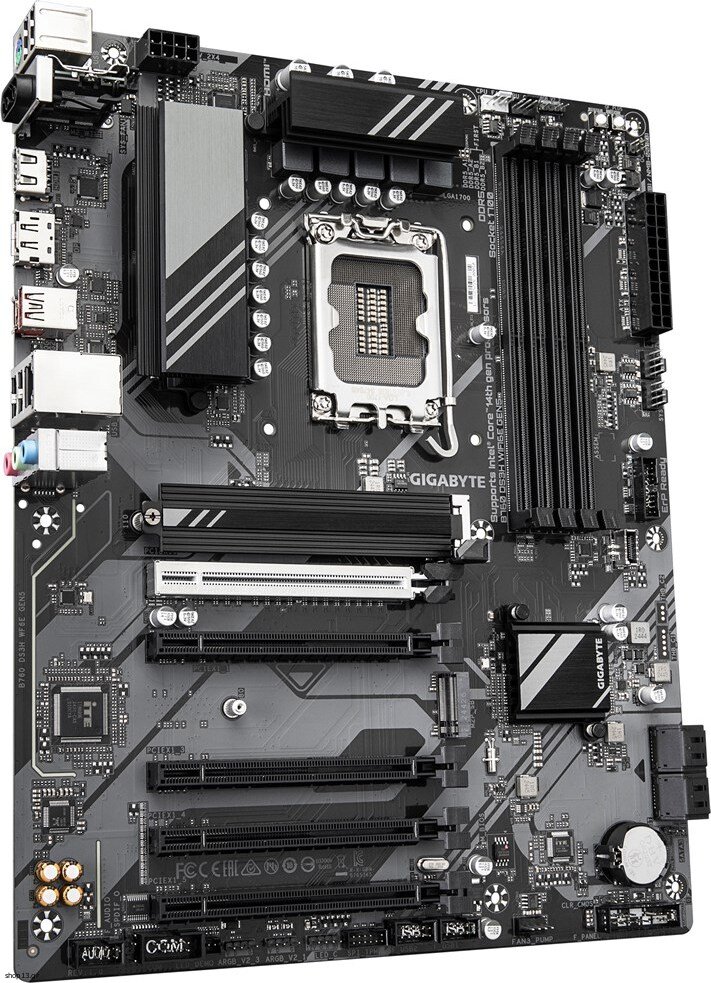

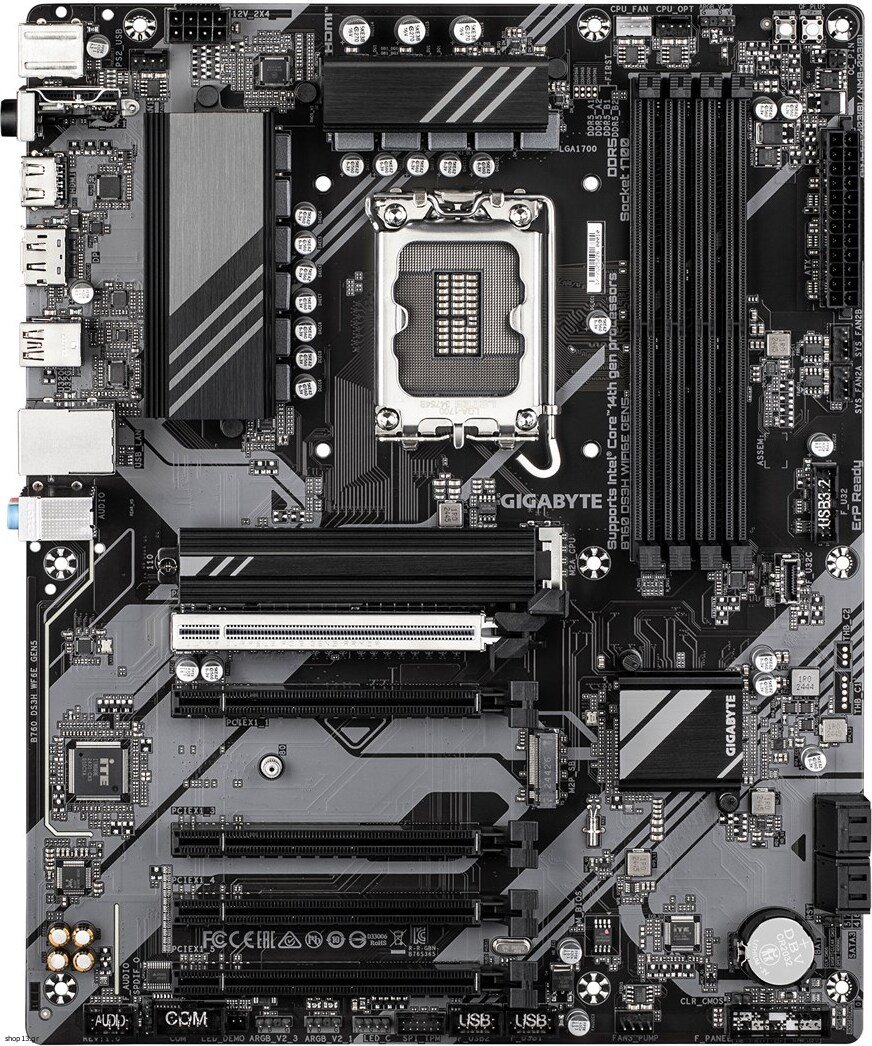

Gigabyte B760 DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 1GbE LAN, USB 3.2 Gen 2x2 - (B760 DS3H WF6E GEN5)

Processor
Supported processor sockets: LGA 1700
Compatible processor series: Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 14th Gen, Intel Core i9 13th Gen, Intel Core i3 13th Gen, Intel(R) Celeron(R), Intel Core i3 12th Gen, Intel Core i7 13th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i3 14th Gen, Intel(R) Pentium(R) Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen
Processor socket: LGA 1700
Processor manufacturer: Intel

Graphics
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels

Features
Motherboard chipset: Intel B760 Express
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Power source type: ATX
Motherboard chipset family: Intel

Memory
Unbuffered memory: Yes
Supported memory clock speeds: 6800, 7400, 5800, 5400, 5200, 6000, 7000, 4000, 4800, 7600, 5600, 7200, 6400, 6600, 6200
Maximum internal memory: 256 GB
Memory channels: Dual-channel
Supported memory clock speed (max): 7600 MHz
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Maximum internal memory per slot: 64 GB
ECC ?ompatibility: ECC & Non-ECC

Weight & dimensions
Depth: 244 mm
Width: 305 mm

Network
Bluetooth: Yes
Wi-Fi standards: 802.11b, Wi-Fi 6E (802.11ax), IEEE 802.11ac, 802.11g, 802.11a, IEEE 802.11n
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Bluetooth version: 5.3
WLAN controller model: Intel Wi-Fi 6E AX210
Wi-Fi: Yes

Internal I/O
S/PDIF out connector: Yes
Serial port headers: 1
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
Number of SATA III connectors: 4
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
Front panel connector: Yes
TPM connector: Yes
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 4
RGB LED pin header: Yes
Number of CPU fan connectors: 2
Number of water pump connectors: 2
Number of RGB LED pin headers: 4
Number of EPS power connectors (8-pin): 1

BIOS
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7

Storage controllers
Supported storage drive types: HDD & SSD
RAID levels: 0, 1, 10, 5
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID support: Yes
Number of storage drives supported: 6
Number of HDDs supported: 4

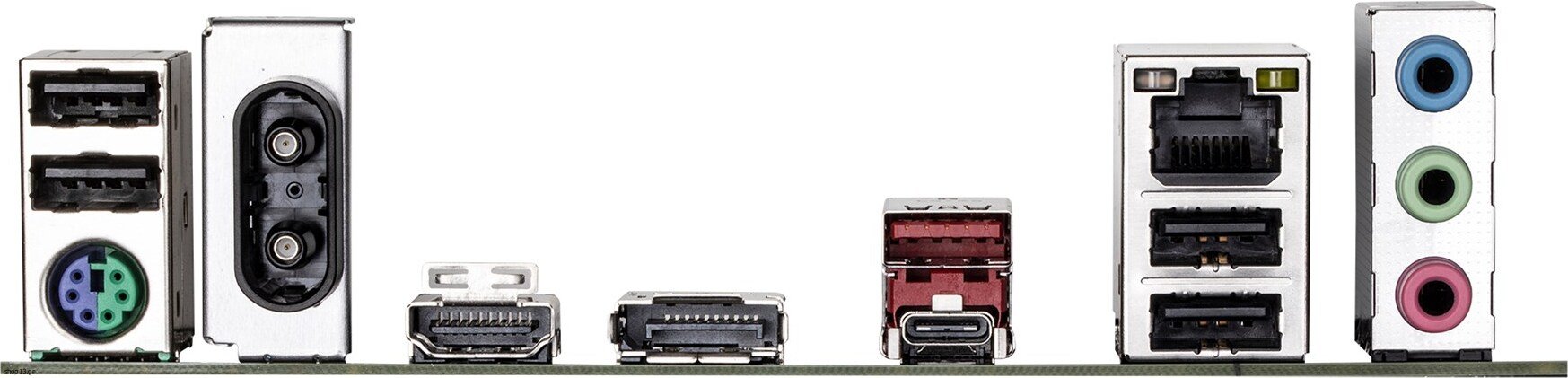

Rear panel I/O ports
DisplayPort version: 1.2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
DisplayPorts quantity: 2
HDMI version: 2.1
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
PS/2 ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
WiFi-AP antenna jack: 2

Expansion slots
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
1st M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 3.x) slots: 4
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
1st M.2 largest key size: 22110


Warranty: warranty 36 months
