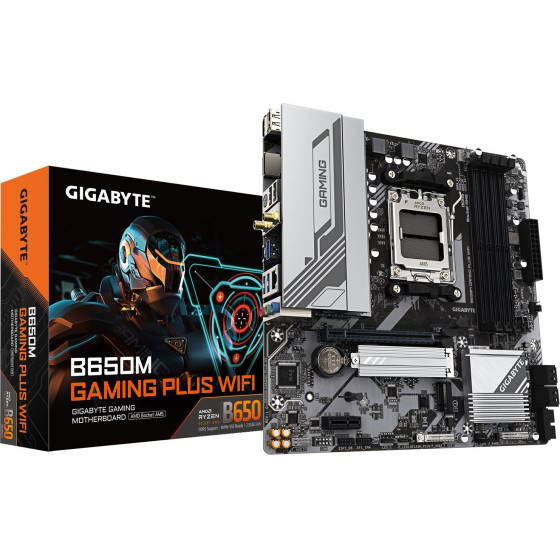

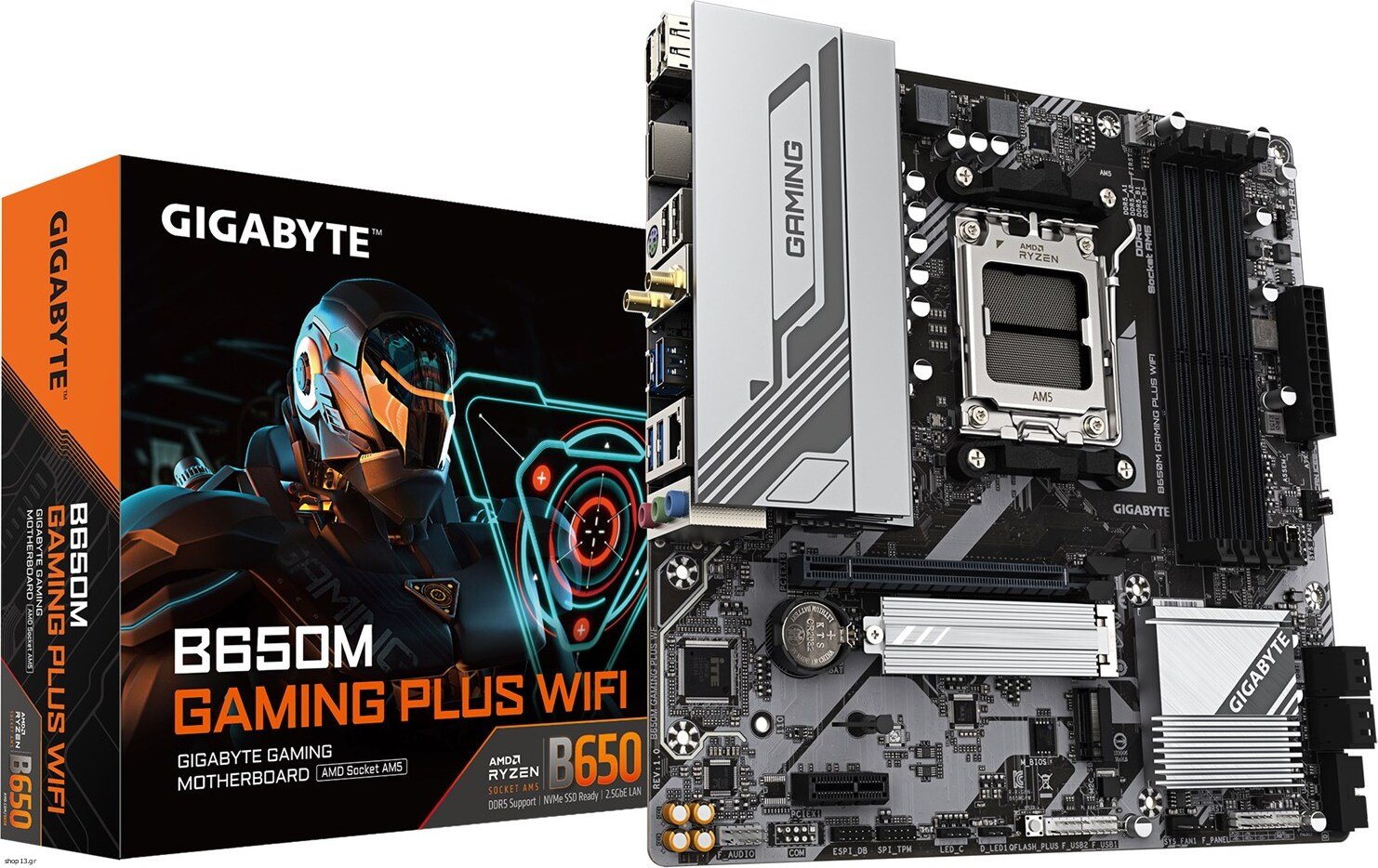

Gigabyte B650M Gaming Plus Wifi Motherboard - Amd Ryzen 9000 CPUs, 5+2+2 Phases VRM, Up To 8000MHz DDR5, 2xPcie 4.0 M.2, 2.5GBe LAN, Wifi 6E, Usb 3.2 Gen 1 - (B650M Gaming Plus WF)

Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Supported processor sockets: Socket AM5
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes

Features
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard chipset: AMD B650
PC health monitoring: Voltage, Temperature, Fan
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Power source type: ATX

Memory
Maximum internal memory per slot: 64 GB
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Supported memory clock speeds: 7600, 7800, 6600, 6800, 6400, 5200, 6000, 5600, 7200, 8000, 6200, 4800 MHz, 7000
Maximum internal memory: 256 GB
Number of memory slots: 4
ECC ?ompatibility: Non-ECC
Memory channels: Dual-channel
Unbuffered memory: Yes
Supported memory clock speed (max): 8000 MHz

Weight & dimensions
Depth: 174 mm
Width: 244 mm

Network
WLAN controller model: Realtek RTL8852CE
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 5 (802.11ac)
Bluetooth: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Ethernet LAN: Yes

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
Number of chassis fan connectors: 2
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
RGB LED pin header: Yes
Number of SATA III connectors: 4
CPU fan connector: Yes
EPS power connector (8-pin): Yes
TPM connector: Yes
USB 2.0 connectors: 2
Front panel connector: Yes
Number of EPS power connectors (8-pin): 1
Number of CPU fan connectors: 1

BIOS
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes

Storage controllers
RAID levels: 10, 1, 0
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID support: Yes
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD

Rear panel I/O ports
DisplayPorts quantity: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
PS/2 ports quantity: 1
HDMI ports quantity: 1
WiFi-AP antenna jack: 2
HDMI version: 2.1
DisplayPort version: 1.4
Number of audio jack connectors: 3
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Expansion slots
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2580
2nd M.2 largest key size: 22110
1st M.2 highest PCI Express generation: 4.0


Warranty: warranty 36 months
