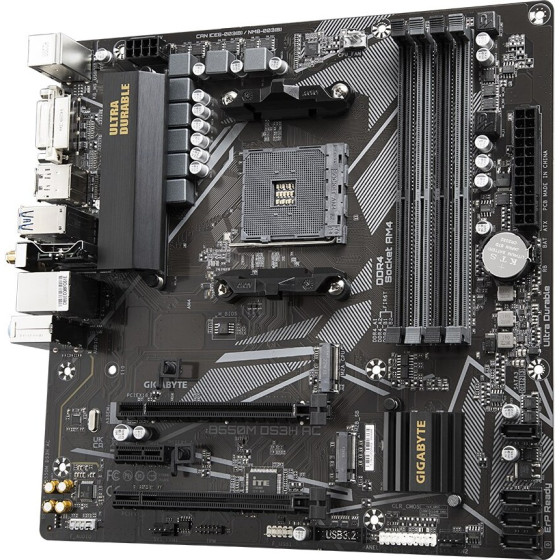

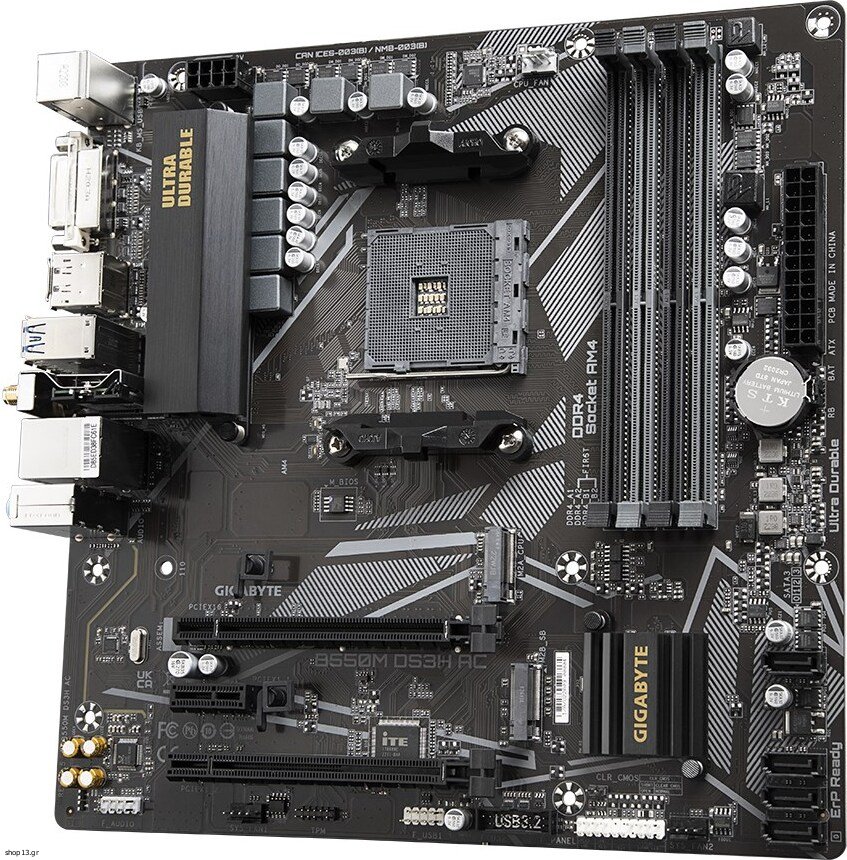

Gigabyte B550M DS3H Socket AM4 micro ATX AMD B550 - (B550M DS3H AC)

Technical details
Warranty period: 3 year(s)

Processor
Compatible processor series: AMD Ryzen 4000 Series, AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Processor socket: Socket AM4
Processor manufacturer: AMD
Supported processor sockets: Socket AM4

Graphics
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0

Features
Windows operating systems supported: Windows 11 x64, Windows 10 x64
PC health monitoring: Voltage, Fan, Temperature
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Motherboard chipset: AMD B550
Motherboard form factor: micro ATX
Cooling type: Passive
Motherboard chipset family: AMD
Product colour: Bronze
Power source type: ATX

Memory
Supported memory clock speed (max): 4733 MHz
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
ECC ?ompatibility: ECC & Non-ECC
Maximum internal memory per slot: 32 GB
Supported memory clock speeds: 2667, 3733, 4400, 3400, 3866, 2933, 3600, 4733, 2400, 4133, 4000, 4600, 3466, 3200 MHz, 4266, 2133
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Weight & dimensions
Width: 244 mm
Height: 35 mm
Depth: 244 mm

Network
Bluetooth version: 4.2
Ethernet LAN: Yes
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Ethernet interface type: Gigabit Ethernet
WLAN controller model: Realtek RTL8821CE
Bluetooth: Yes
LAN controller: Realtek RTL8111H

Internal I/O
Audio connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
EPS power connector (8-pin): Yes
12V power connector: Yes
Number of CPU fan connectors: 1
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of RGB LED pin headers: 5
Number of water pump connectors: 2
Front panel audio connector: Yes
Number of chassis fan connectors: 2
Serial port headers: 1
Number of SATA III connectors: 4
Number of EPS power connectors (8-pin): 1
USB 2.0 connectors: 1

BIOS
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
BIOS type: UEFI AMI

Packaging data
Package depth: 268 mm
Package width: 270 mm
Package height: 68 mm
Package weight: 1.09 kg

Packaging content
Batteries included: Yes
Antenna included: Yes
Screws included: Yes

Storage controllers
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 0, 1, 10
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID support: Yes

Rear panel I/O ports
Headphone outputs: 1
Microphone in: Yes
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Line-in: Yes
WiFi-AP antenna jack: 2
PS/2 ports quantity: 1
DVI-D ports quantity: 1
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4

Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 highest PCI Express generation: 3.0
2nd M.2 largest key size: 2280
Number of M.2 (M) slots: 2
1st M.2 highest PCI Express generation: 4.0
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
1st M.2 largest key size: 22110

Battery
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Battery type: CR2032
Lithium weight per battery: 0.07 g

Logistics data
Products per shipping (inner) case: 1 pc(s)
Country of origin: China

Safety warning
Warnings: Dispose of according to local electro-waste regulations., Avoid direct contact with sensitive electronic components., Store away from water and sources of moisture.


Warranty: warranty 36 months
