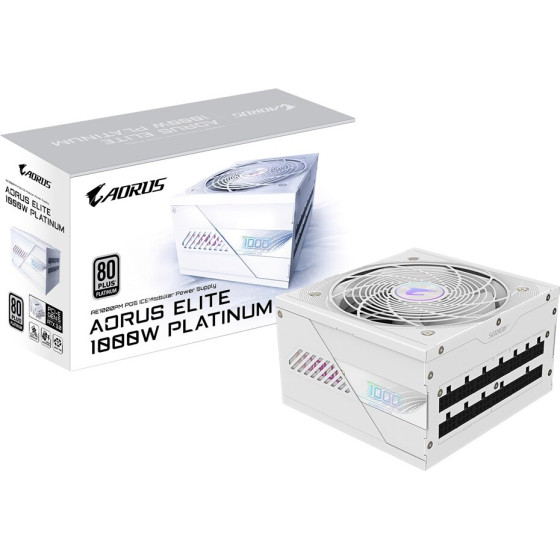

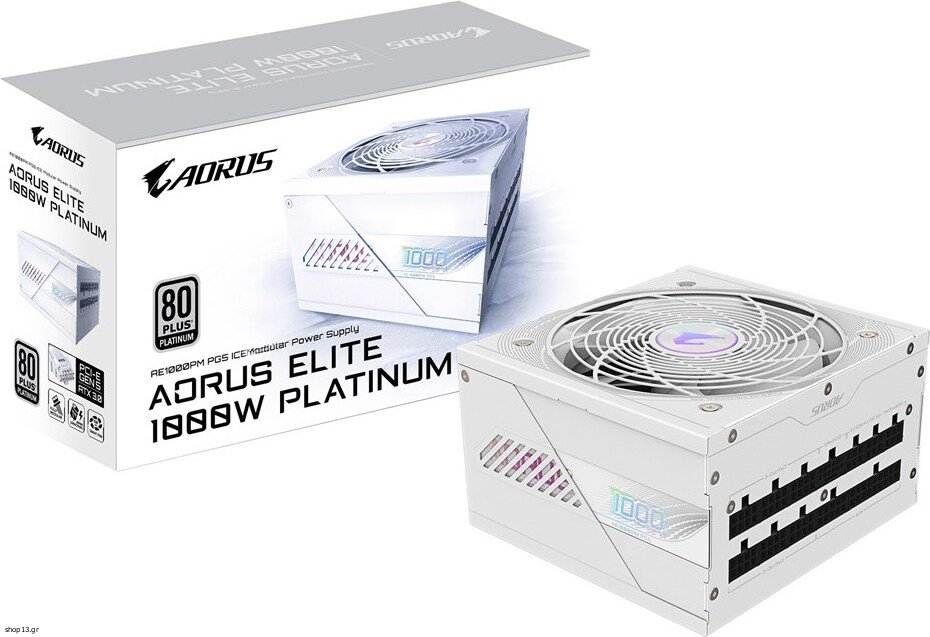

Gigabyte Aorus Elite P1000W Ice Power Supply Unit - Pcie 5.0, 80 Plus Platinum, Fully Modular design, 120mm Fan, Atx 3.0 compatible, Eu Plug - (GP-AE1000PM PG5 ICE)
[Κωδικός : 773761]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Design
Cooling type: Active
On/off switch: Yes
Fan diameter: 12 cm
Fan location: Top
Product colour: White
Number of fans: 1 fan(s)
Power
Power protection features: Over power, Overheating, Short circuit, Over voltage, Under voltage, Over current
Combined power (+12V): 999.6 W
Combined power (+3.3V): 125 W
Efficiency: 92%
AC input voltage: 100 - 240 V
Max output current (+12V): 83.3 A
AC input frequency: 50/60 Hz
Power Good signal delay range: 100 - 150 ms
Power Factor Correction (PFC) type: Active
Power factor: 0.9
Combined power (+5Vsb): 15 W
Input current: 15 - 6.5 A
Max output current (+5V): 25 A
Total power: 1000 W
Max output current (+5Vsb): 3 A
Combined power (-12V): 3.6 W
Hold time: 16 ms
Max output current (-12V): 0.3 A
Combined power (+5V): 125 W
Max output current (+3.3V): 25 A
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 3.1 kg
Performance
Power supply unit (PSU) form factor: ATX
Bearing technology: Ball bearing
ATX version: 3.1
Purpose: PC
80 PLUS certification: 80 PLUS Platinum
Mean time between failures (MTBF): 100000 h
Packaging data
Package height: 120 mm
Package width: 340 mm
Package depth: 206 mm
Package type: Box
Package weight: 3.73 kg
Ports & interfaces
PCI Express power connectors (6+2 pin): 6
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 4
ATX power connector (20+4 pin): Yes
Floppy drive power connector: 2
Motherboard power connector: 20+4 pin ATX
Floppy disk drive connector: Yes
Motherboard power cable length: 65 cm
PCI Express connector: Yes
Cabling type: Fully-Modular
CPU power connector (4+4 pin): Yes
Logistics data
Warranty period: 10 year(s)
Warranty: warranty 120 months
Cooling type: Active
On/off switch: Yes
Fan diameter: 12 cm
Fan location: Top
Product colour: White
Number of fans: 1 fan(s)
Power
Power protection features: Over power, Overheating, Short circuit, Over voltage, Under voltage, Over current
Combined power (+12V): 999.6 W
Combined power (+3.3V): 125 W
Efficiency: 92%
AC input voltage: 100 - 240 V
Max output current (+12V): 83.3 A
AC input frequency: 50/60 Hz
Power Good signal delay range: 100 - 150 ms
Power Factor Correction (PFC) type: Active
Power factor: 0.9
Combined power (+5Vsb): 15 W
Input current: 15 - 6.5 A
Max output current (+5V): 25 A
Total power: 1000 W
Max output current (+5Vsb): 3 A
Combined power (-12V): 3.6 W
Hold time: 16 ms
Max output current (-12V): 0.3 A
Combined power (+5V): 125 W
Max output current (+3.3V): 25 A
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 3.1 kg
Performance
Power supply unit (PSU) form factor: ATX
Bearing technology: Ball bearing
ATX version: 3.1
Purpose: PC
80 PLUS certification: 80 PLUS Platinum
Mean time between failures (MTBF): 100000 h
Packaging data
Package height: 120 mm
Package width: 340 mm
Package depth: 206 mm
Package type: Box
Package weight: 3.73 kg
Ports & interfaces
PCI Express power connectors (6+2 pin): 6
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 4
ATX power connector (20+4 pin): Yes
Floppy drive power connector: 2
Motherboard power connector: 20+4 pin ATX
Floppy disk drive connector: Yes
Motherboard power cable length: 65 cm
PCI Express connector: Yes
Cabling type: Fully-Modular
CPU power connector (4+4 pin): Yes
Logistics data
Warranty period: 10 year(s)
Warranty: warranty 120 months
Χαρακτηριστικά
Μοντέλο
Gigabyte AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug - (GP-AE1000PM PG5 ICE)
