Technical details
Warranty period: 3 year(s)
Processor
Supported processor sockets: LGA 1700
Compatible processor series: Intel(R) Celeron(R), Intel Core i9 13th Gen, Intel(R) Pentium(R) Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i3 14th Gen, Intel Core i7 13th Gen, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 14th Gen
Processor manufacturer: Intel
Processor socket: LGA 1700
Graphics
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
DirectX version: 12.0
Features
Power source type: ATX
Audio chip: Realtek ALC897
PC health monitoring: Voltage, Temperature, Fan, Water cooling
Motherboard form factor: ATX
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760 Express
Product colour: Dark brown
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset family: Intel
Cooling type: Passive
Memory
Supported memory clock speeds: 4800, 4400, 5600, 5200
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Memory channels: Dual-channel
ECC ?ompatibility: ECC & Non-ECC
Supported memory clock speed (max): 5600 MHz
Maximum internal memory per slot: 64 GB
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 4
Weight & dimensions
Width: 305 mm
Height: 35 mm
Depth: 244 mm
Network
LAN controller: Realtek RTL8111H
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Internal I/O
Number of SATA III connectors: 4
USB 2.0 connectors: 2
Serial port headers: 1
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
S/PDIF out connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 4
TPM connector: Yes
Front panel connector: Yes
Number of RGB LED pin headers: 4
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 1
Number of water pump connectors: 2
RGB LED pin header: Yes
12V power connector: Yes
BIOS
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Packaging data
Package weight: 1.5 kg
Package width: 335 mm
Package height: 80 mm
Package depth: 270 mm
Packaging content
Batteries included: Yes
Screws included: Yes
Storage controllers
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD
RAID levels: 0, 5, 1, 10
Number of storage drives supported: 6
Number of HDDs supported: 4

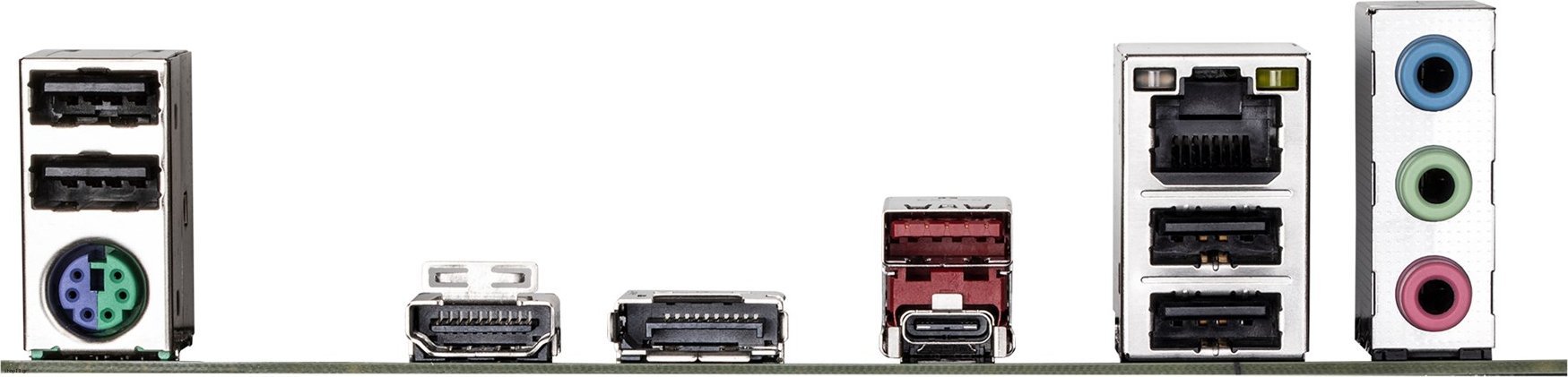

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
DisplayPort version: 1.2
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
PS/2 ports quantity: 1
Microphone in: Yes
HDMI ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Headphone outputs: 1
Line-in: Yes
Expansion slots
PCI Express x16 (Gen 3.x) slots: 4
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
Battery
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery weight: 3 g
Other features
Weight: 1.32 kg
Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Warranty: warranty 36 months
