Περιγραφή
Qianli spot welding machine for batteries Generation
3
6 Settings output power
Gold-plated pen tip, red copper shaft
Copper oxide aluminum solder pin
Temperature control protection over 60

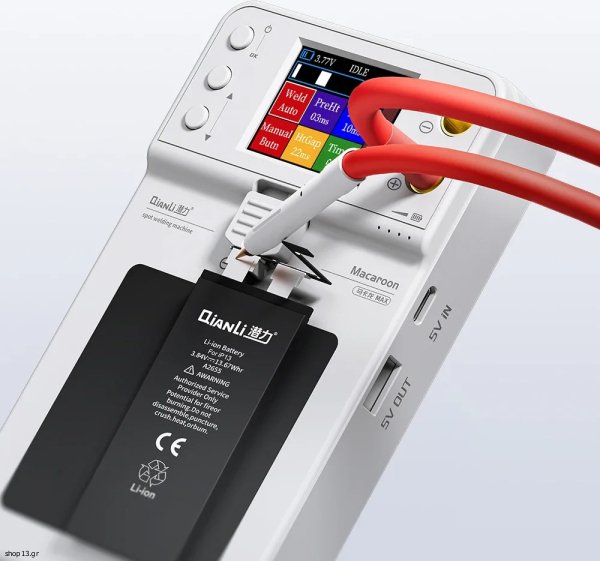

Το μηχάνημα συγκόλλησης QianLi Macaron
Spot είναι μια
φορητή μίνι Ηλεκτροπόντα, απαραίτητη για τη συγκόλληση Ελασμάτων μπαταριών και
μικροαντικειμένων.
Ιδανική για την συγκόλληση του παλιού flex της παλιάς
original iPhone μπαταρίας σε μία καινούργια μπαταρία
iPhone (χωρίς flex).
Η
ενσωματωμένη επαναφορτιζόμενη μπαταρία καθιστά αυτή μια πλήρως φορητή
μονάδα.
Specifications
Output voltage: 4.2V
(Max)
Output current: 650A
(Max)
Designed current: 1000A
(Max)
Charging port:
Type-C
Input:
5V/2A
Description
Qianli
Macaron Max Spot Welding Machine (3nd Generation)
Product
description and features:
Latest
version of the Macaron Max spot welding machine - new approach to welding,
minimalist design, more stable operation

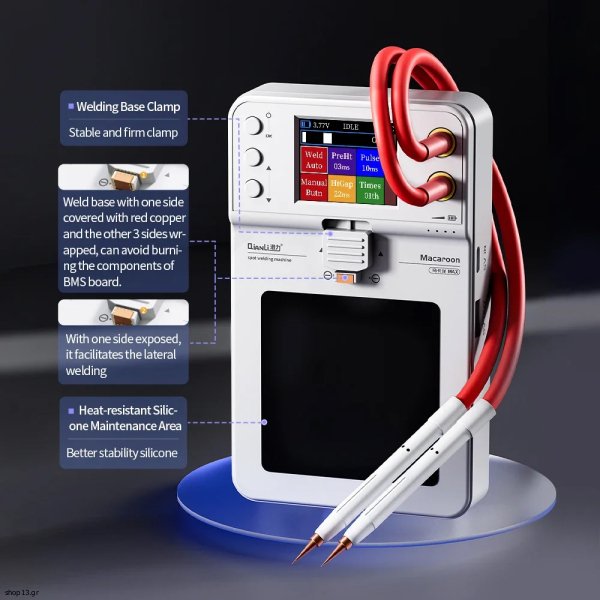

The
machine has been equipped with a special welding base clamp, no separate
external handle (welding bases) required
Completely
new integrated design with colour screen with setting of all
parameters
Integrated
spot welding / Double-pulse spot welding (Multi-pulse provides powerful spot
welding)
Improved
sealing clamps: Even better conduction thanks to red copper tip and protected
with heat protection
Base
with one side covered in red copper, avoids burning the BMS board
components
Exposed
one side facilitates side welding
Heat-resistant
silicone for improved stability
Automatic
burnout: This function is a newly added feature that can be used by service
technicians with in-depth knowledge of the 'burnout' principle. Standard output
MAX: 3V 3A. It should be used with care and any consequences arising from
improper use must be borne by the user himself

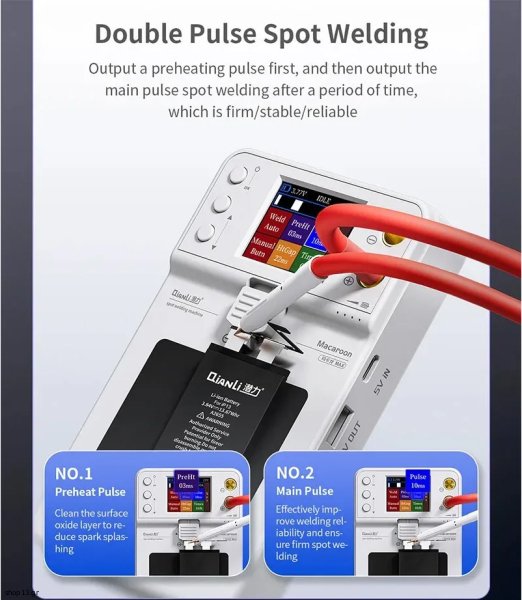

Double-pulse
spot welding First outputs a preheating pulse and then after some time
outputs the main spot welding pulse, which is stable and
reliable
1st
preheating pulse: Clears the oxide layer from the surface to reduce spark
splatter.
2.
main pulse: Effectively improves welding reliability and ensures strong and
stable welds

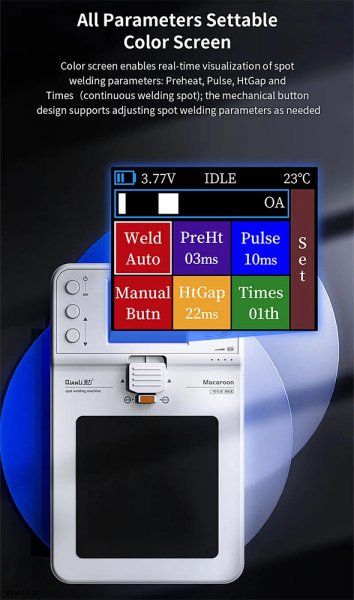

Colour
screen with all parameter settings The colour screen allows real-time
visualisation of spot welding parameters: preheat, pulse, HtGap and times
(continuous spot welding). Buttons allow the spot welding parameters to be
adjusted as required.
Introduction
to the function panel: spot welder power, real-time voltage, temperature, dual
pulse wave simulation display, welding current display, spot welder information:
preheat, pulse, HtGap and times (continuous spot welding).
OPERATING
INSTRUCTIONS PROVIDED BY THE MANUFACTURER:
1.
place the cell on the silicon area of the spot welder, adjust the clamp of the
welding base to clamp the welded part of the cell.
2)
Adjust spot welding parameters By selecting with the "up" and "down" buttons and
confirming with the "OK" button, the parameters preheat, pulse, HtGap and times
(continuous spot welding) can be adjusted to the corresponding spot welding
power.
Start
spot welding: Press the tip of the welding fixture appropriately to the point to
be welded, make sure the tip of the fixture is in good contact with the nickel
plate, with no slack or poor contact. Finish
welding after current output.
